2695 - Weed Eater Blower, Electric Electric Blower/Blower Assembly Parts Diagram

Blower, Electric

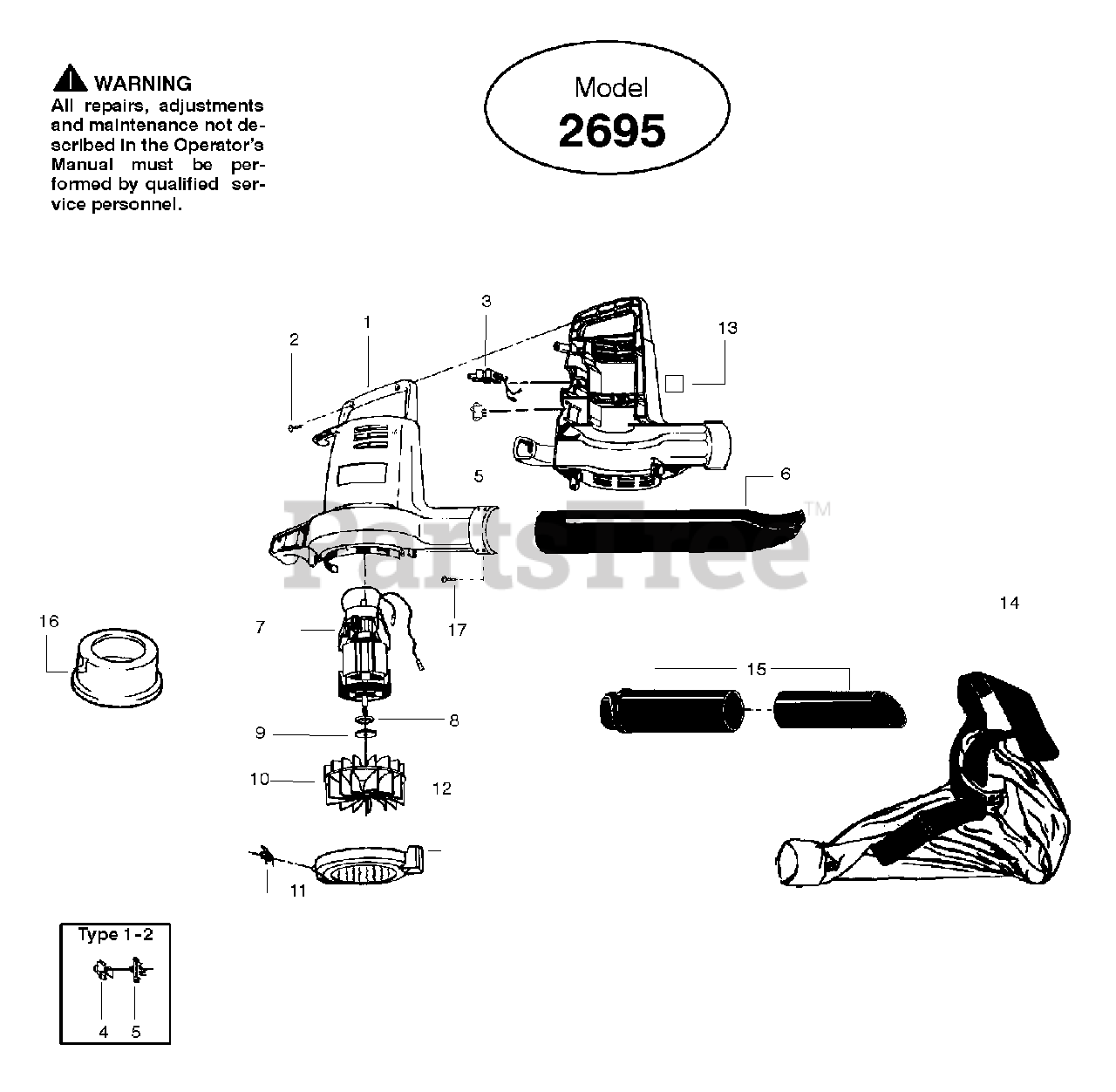

Electric Blower/Blower Assembly Parts Diagram

  • Title

1

Poulan 530402773

Housing Set (Type 1,2)

$

$

Not available

1

Poulan 530404049

Housing Set (Type 3)
(Superseded to 530404378)

$

$

Not available

2

Poulan 530016317

Screw

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 530403778

Wire Harness (Type 1,2)
(Superseded to 545124301)

Note: (Incls. Switch)

$

$

Not available

3

Poulan 530404162

Wire Harness (Type 3)

Note: (Incls. Switch)

$

$

Not available

4

Poulan 530401008

Switch Cover(Type 1,2)

$0.99

$

Usually ships in 3-10 days

0

5

Poulan 530401094

Switch (Type 1,2)

$2.99

$

Usually ships in 3-10 days

0

5

Poulan 530404190

Switch (Type 3)

$

$

Not available

6

Poulan 530403612

Blower (Tube w/Nozzle)

$

$

Not available

7

Poulan 530402374

Motor Ass'y. Type 1
(Superseded to 545071501)

$

$

Not available

7

Poulan 530404106

Motor Ass'y. Type 2,3

$

$

Not available

8

Poulan 530404165

Spacer (Type 2,3 only)

$

$

Not available

9

Poulan 530400897

Washer

$

$

Not available

10

Poulan 530402719

Impeller

$11.99

$

Usually ships in 3-10 days

0

11

Poulan 530351417

Spring

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 530403574

Assy-Cover Spring

Note: (incl. 11)

$

$

Not available

13

Poulan 530400089

Pad (Type 1 only)

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 530402533

Vacuum Bag Kit

$44.99

$

Usually ships in 3-10 days

0

15

Poulan 530402499

Vacuum Tube Kit

$

$

Not available

16

Poulan 530403791

Inlet Restrictor

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 530015994

Screw

$3.99

$

Usually ships in 3-10 days

0

Poulan 530163993

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530402500

Warning Decal

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

Poulan 530402365

Warning Decal

Note: Not Shown

$

$

Not available
