2691952-01 - Simplicity Courier XT 48" Zero-Turn Mower, 25hp Briggs & Stratton Transmission Group - Suspension Parts Diagram

Courier XT 48" Zero-Turn Mower, 25hp Briggs & Stratton

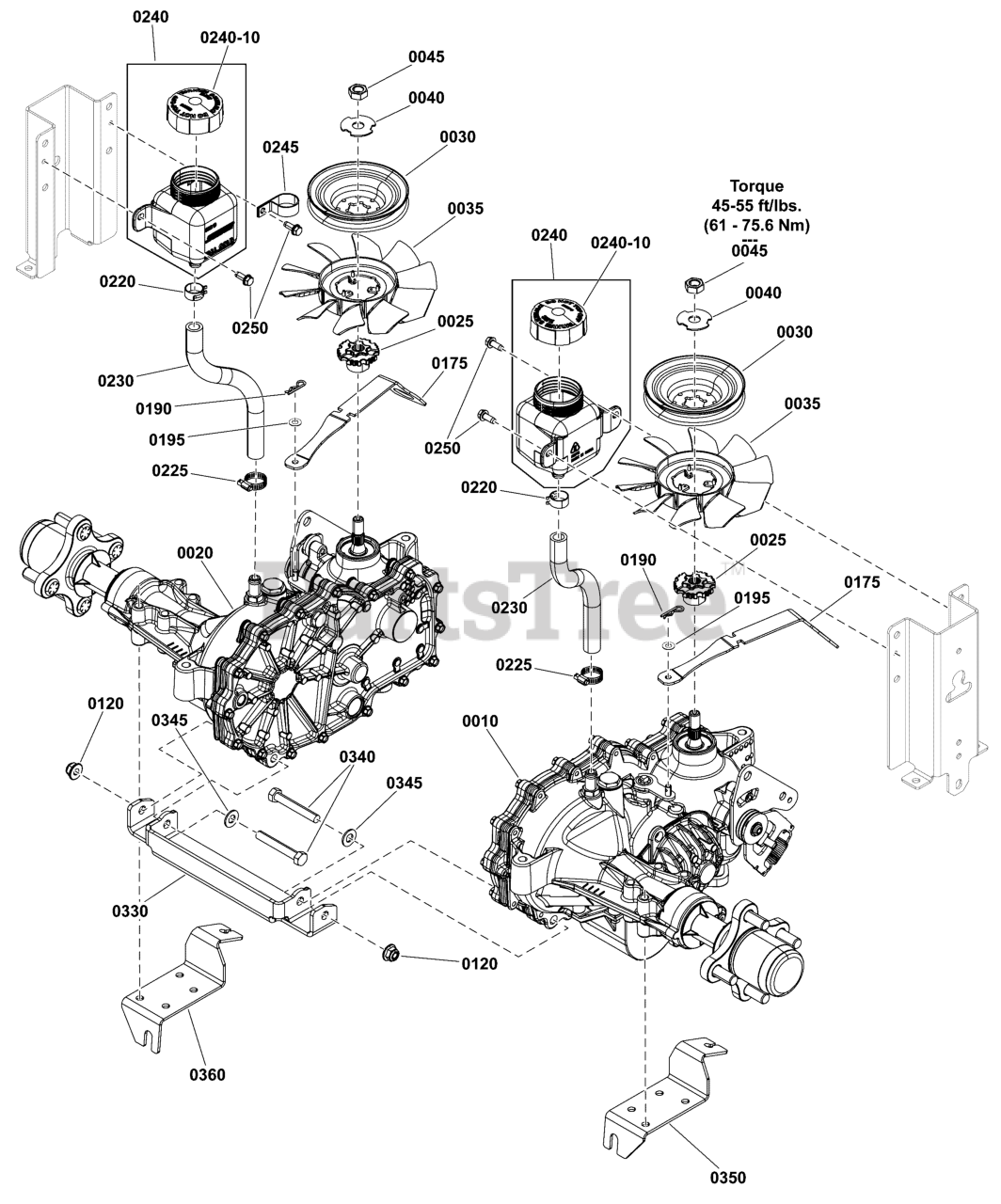

Transmission Group - Suspension Parts Diagram

  • Title

0010

Simplicity 84007619

TRANSAXLE, Left

Note: ( Left side )

$

$

Currently unavailable

0020

Simplicity 84007620

TRANSAXLE, Right

Note: ( Right side )

$

$

Currently unavailable

0025

Simplicity 84003847

HUB

$7.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1759447YP

PULLEY, Transmission

$26.99

$

In Stock, only 3 left!

0

0035

Simplicity 84007455

FAN

$28.99

$

Usually ships in 2-12 days

0

0040

Simplicity 5102914YP

WASHER, ZT5400, SLOTT

$3.99

$

In Stock, only 1 left!

0

0045

Simplicity 5102916YP

NUT, ZT5400

Note: ( Torque to 45 - 55 ft-lbs (61 - 75.6 Nm) )

$3.49

$

In Stock, only 1 left!

0

0120

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0175

Simplicity 1759276AYP

VALVE-TOW

$14.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703430

PIN, 13X1.19

$3.49

$

In Stock, only 2 left!

0

0195

Simplicity 84007033

WASHER

$4.49

$

Usually ships in 2-12 days

0

0220

Simplicity 5025474SM

CLAMP - HOSE

$3.49

$

Usually ships in 2-12 days

0

0225

Simplicity 5021392SM

CLAMP, #6 HOSE, STAIN

$4.99

$

Usually ships in 2-12 days

0

0230

Simplicity 5050857X105YP

HOSE,10.5 OIL DRAIN

$

$

Not available

0240

Simplicity 5100473SM

RESERVOIR

Note: ( Included with Ref. No. 0240-10 )

$40.99

$

Usually ships in 2-12 days

0

0240-10

Simplicity 5100778X1YP

RESERVIOR CAP (SV)

$21.99

$

In Stock, only 1 left!

0

0245

Simplicity 5021500SM

CLAMP, VINYL INSULATED, 1.00

Note: ( This clamp is mounted on the left side of the unit for Briggs & Stratton powered models. )

$3.99

$

Usually ships in 2-12 days

0

0250

Simplicity 703054

SCREW, 1/4-20X0.625

$4.49

$

In Stock, Qty 5

0

0330

Simplicity 1759172AYP

SUPPORT

$64.99

$

Usually ships in 2-12 days

0

0340

Simplicity 84007037

BOLT

$2.99

$

In Stock, only 3 left!

0

0345

Simplicity 703590

WASHER, FLAT, .406

$3.99

$

In Stock, Qty 10

0

0350

Simplicity 84006958

BRACKET

$22.99

$

Usually ships in 2-12 days

0

0360

Simplicity 84006959

BRACKET

$22.99

$

Usually ships in 2-12 days

0
