2691815-02 - Simplicity Courier XT 61" Zero-Turn Mower, 25hp Briggs & Stratton Suspension Group Parts Diagram

Courier XT 61" Zero-Turn Mower, 25hp Briggs & Stratton

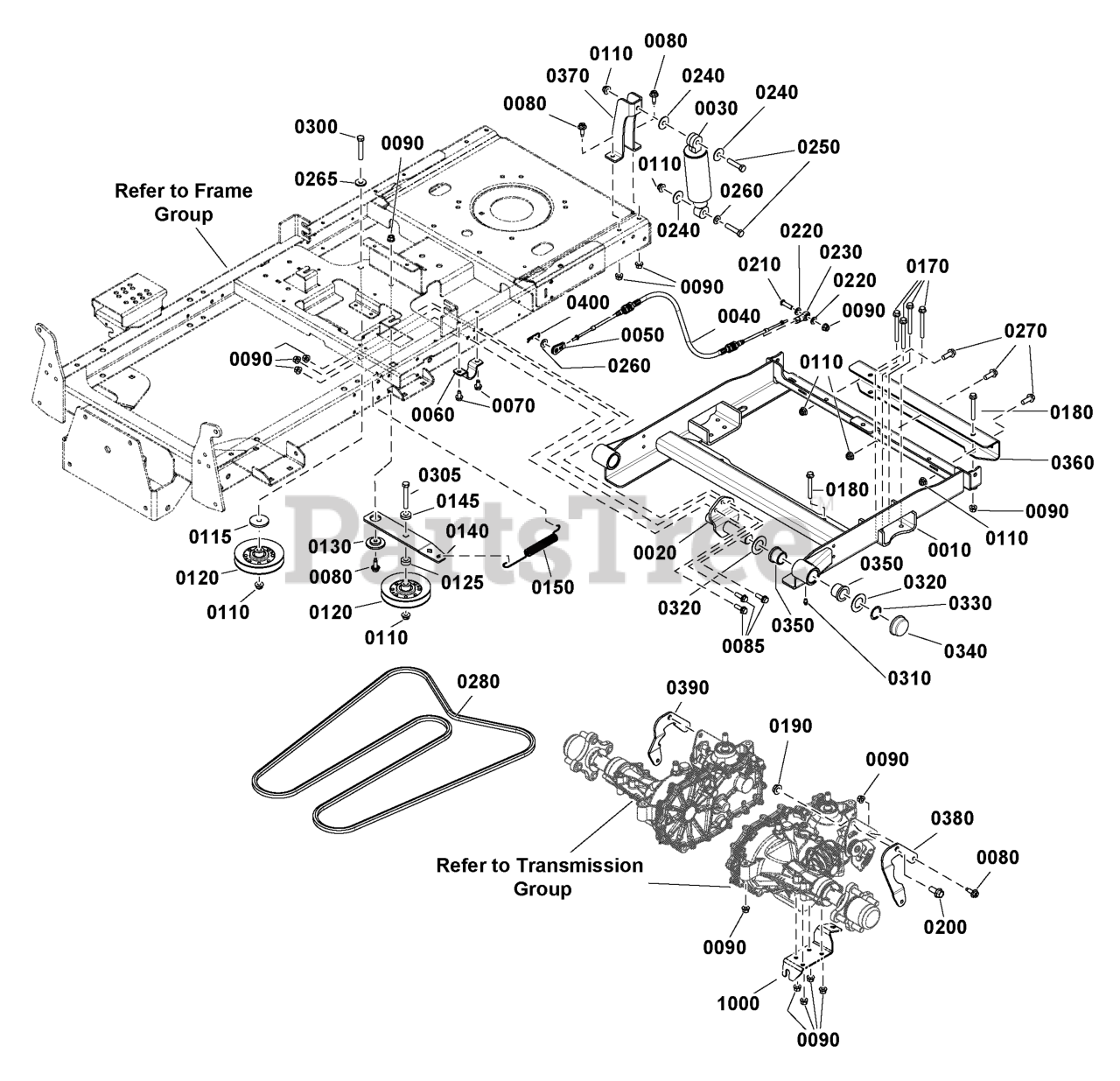

Suspension Group Parts Diagram

  • Title

0010

Simplicity 84007071

CARRIER, Transmission

$

$

Currently unavailable

0020

Simplicity 1758716CYP

SWING ARM, Rear

$53.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1758705YP

SHOCK ABSORBER, 10.5"

$81.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1759206YP

CABLE, Push/Pull

$158.99

$

In Stock, only 4 left!

0

0050

Simplicity 1759413YP

END-CABLE

$10.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1720147BZYP

STRAP, 1 IN. DIA

$9.99

$

Usually ships in 2-12 days

0

0070

Simplicity 703949

SCREW, 5/16-18.625

$3.99

$

In Stock, Qty 5

0

0080

Simplicity 1960667SM

SCREW-HEX WZ LOCK FLN

$4.99

$

Usually ships in 2-12 days

0

0085

Simplicity 703410

BOLT,5/16-18X1

$4.49

$

In Stock, only 2 left!

0

0090

Simplicity 5025392SM

NUT, Ny Lock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0110

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0115

Simplicity 706128

SPACER, IDLER

$6.99

$

In Stock, only 4 left!

0

0120

Simplicity 1759212YP

PULLEY

$57.99

$

In Stock, only 1 left!

0

0125

Simplicity 1667811SM

SPACER

$3.49

$

In Stock, Qty 20+

0

0130

Simplicity 1727935SM

SPACER-PIVOT 0.330ID

$5.99

$

In Stock, only 1 left!

0

0140

Simplicity 1761878AYP

ARM, IDLER

$13.99

$

Usually ships in 2-12 days

0

0145

Simplicity 5044960SM

SPACER, .39 X 1.00 X

$5.49

$

In Stock, Qty 7

0

0150

Simplicity 1758045YP

SPRING-EXTENSION

$8.49

$

In Stock, only 3 left!

0

0170

Simplicity 707943

SCREW

$5.99

$

Usually ships in 2-12 days

0

0180

Simplicity 770083

SCREW

$2.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1930650SM

NUT-HEX FLANGE 7/16-1

$5.49

$

In Stock, only 4 left!

0

0200

Simplicity 1960043SM

SCREW-HEX WZ LOCK FLN

$7.49

$

Usually ships in 2-12 days

0

0210

Simplicity 703172

SCREW

$3.99

$

Usually ships in 2-12 days

0

0220

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

0230

Simplicity 5101801YP

JOINT-BALL

$19.99

$

Usually ships in 2-12 days

0

0240

Simplicity 5025165SM

WASHER, 3/8" FENDER

$3.99

$

In Stock, only 2 left!

0

0250

Simplicity 5025013X14SM

BOLT, 3/8-16 X 1-3/4"

$3.99

$

In Stock, only 2 left!

0

0260

Simplicity 5025156SM

WASHER, Flat, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

0265

Simplicity 704128

WASHER

$4.99

$

In Stock, Qty 11

0

0270

Simplicity 704038

SCREW

$5.99

$

In Stock, only 2 left!

0

0280

Simplicity 84006991

V-BELT

$70.99

$

Usually ships in 2-12 days

0

0300

Simplicity 5025013X18SM

BOLT, 3/8-16 X 2-1/4"

$3.99

$

Usually ships in 2-12 days

0

0305

Simplicity 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

0310

Simplicity 1704314SM

LUBE FITTING, .250 DR
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0320

Simplicity 703199

WASHER, 1

$4.99

$

In Stock, only 2 left!

0

0330

Simplicity 703200

PUSHNUT

$4.99

$

Usually ships in 2-12 days

0

0340

Simplicity 094618MA

HUB CAP

$5.99

$

In Stock, only 4 left!

0

0350

Simplicity 1758717YP

BUSHING

$8.99

$

Usually ships in 2-12 days

0

0360

Simplicity 1759163CYP

SUPPORT, Transmission

$46.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1758778CYP

MOUNT, Rear Shock

$29.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1759021AYP

ARM

$25.99

$

Usually ships in 2-12 days

0

0390

Simplicity 1759022AYP

ARM

$24.99

$

Usually ships in 2-12 days

0

0400

Simplicity 7091503SM

HAIR PIN, 3/32X1-1/2

$3.99

$

In Stock, Qty 20+

0

1000

Simplicity 84006958

BRACKET

$22.99

$

Usually ships in 2-12 days

0
