2691815-01 - Simplicity Courier XT 61" Zero-Turn Mower, 25hp Briggs & Stratton Transmission Group - Suspension Parts Diagram

Courier XT 61" Zero-Turn Mower, 25hp Briggs & Stratton

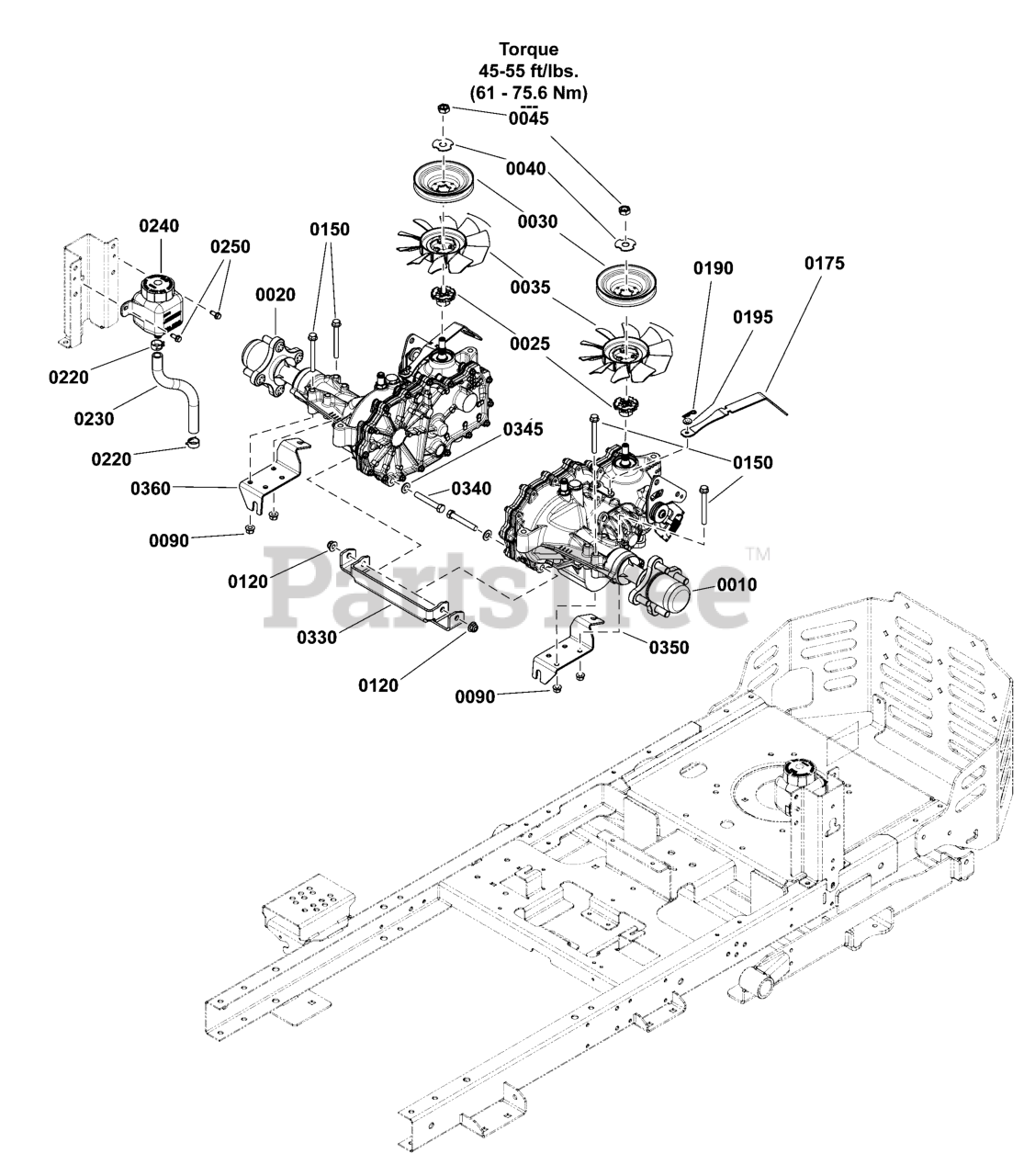

Transmission Group - Suspension Parts Diagram

  • Title
0010

Simplicity 84006911

TRANSAXLE, ZT3100, ZL-HPEE-UL7B-2XLX

$1078.99

$

Usually ships in 2-12 days

0

0020

Simplicity 84006912

TRANSAXLE, ZT3100, ZL-GPEE-UL7B-2XLX

$900.99

$

Usually ships in 2-12 days

0

0025

Simplicity 84003847

SPACER, Transmission, 17 Tooth Spline

$7.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1759447YP

PULLEY, Transmission

$26.99

$

In Stock, Qty 6

0

0035

Simplicity 84006901

FAN, 7"
(Superseded to 84007455)

$28.99

$

In Stock, only 2 left!

0

0040

Simplicity 5102914YP

WASHER, Slotted

$3.99

$

In Stock, only 3 left!

0

0045

Simplicity 5102916YP

NUT, ZT5400

$3.49

$

In Stock, only 1 left!

0

0090

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0120

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0150

Simplicity 707943

SCREW, Washer Head, 5/16-18 X 3

$5.99

$

Usually ships in 2-12 days

0

0175

$14.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703430

PIN, 13X1.19

$3.49

$

In Stock, only 2 left!

0

0195

Simplicity 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0220

Simplicity 5025474SM

CLAMP, Hose .75"

$3.49

$

Usually ships in 2-12 days

0

0230

Simplicity 5050857X105YP

HOSE,10.5 OIL DRAIN

$

$

Not available

0240

Simplicity 5100473SM

RESERVOIR, Hydro

$40.99

$

Usually ships in 2-12 days

0

0250

Simplicity 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 9

0

0330

Simplicity 1759177CJYP

BRACKET, Support, Seat Pivot

$16.99

$

Usually ships in 2-12 days

0

0340

Simplicity 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 4 left!

0

0345

Simplicity 5025156SM

WASHER, Flat, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 12

0

0350

Simplicity 84006958

BRACKET, Transmission Cables, LH

$22.99

$

Usually ships in 2-12 days

0

0360

Simplicity 84006959

BRKT, Transmission Cables, RH

$22.99

$

Usually ships in 2-12 days

0
