2691815-01 - Simplicity Courier XT 61" Zero-Turn Mower, 25hp Briggs & Stratton Engine Group Parts Diagram

Courier XT 61" Zero-Turn Mower, 25hp Briggs & Stratton

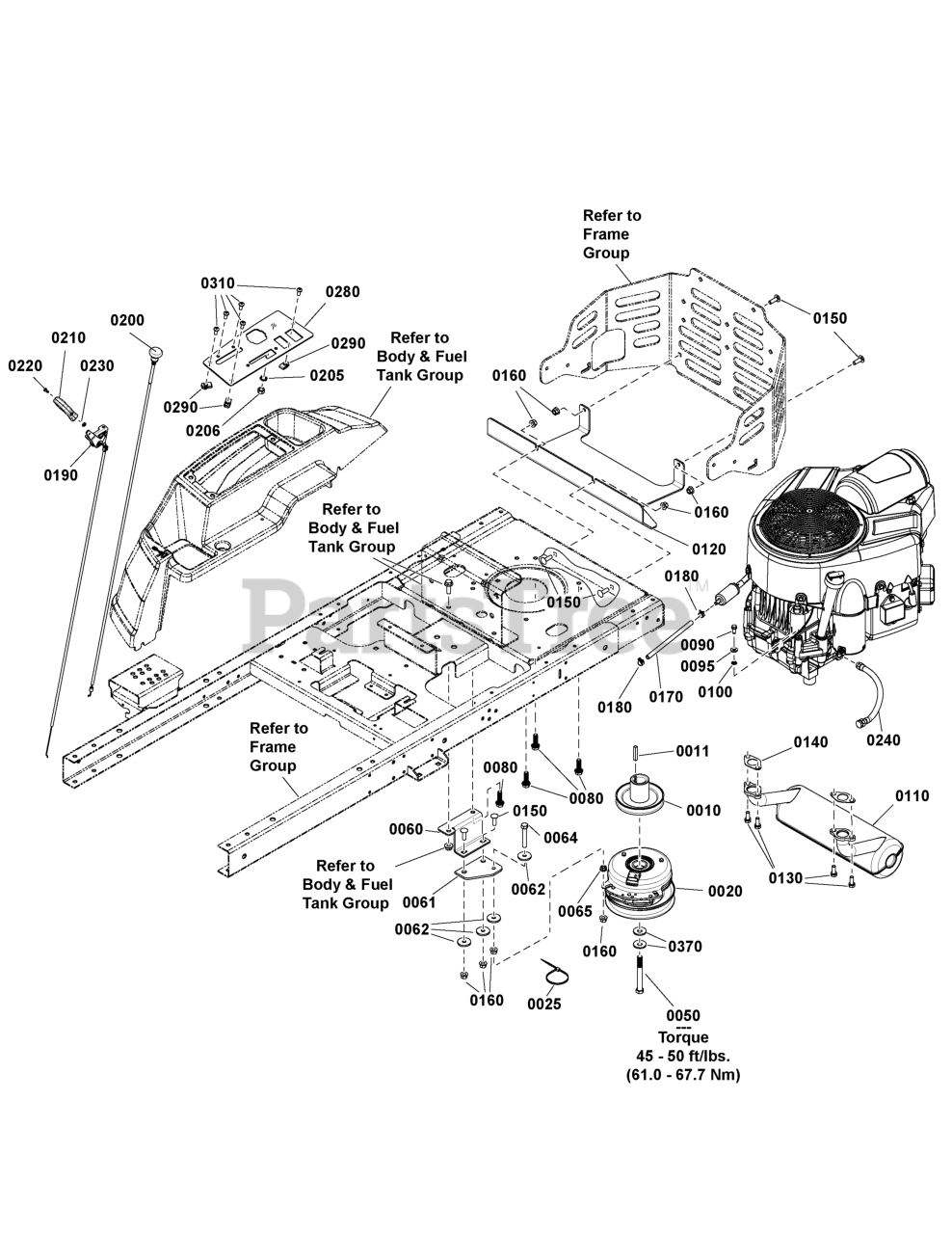

Engine Group Parts Diagram

  • Title

0005

Simplicity 44T977-0005-G1

* ENGINE, 25HP B&S COMM TURF, 1-1/8 X 4.29

Note: ( Engine Model: 44N777-0005-G1 )

$

$

Currently unavailable

0010

Simplicity 84006898

PULLEY, Crankshaft

$15.99

$

Usually ships in 2-12 days

0

0011

Simplicity 5022726YP

KEY 1/4 SQ X 1 1/2 LONG

$4.99

$

In Stock, only 2 left!

0

0020

Simplicity 84006960

CLUTCH, Warner

$256.99

$

Usually ships in 2-12 days

0

0025

Simplicity 5021030SM

TIE, 6" Self-Locking

$2.99

$

In Stock, only 3 left!

0

0050

BOLT, CRANKSHAFT, 7/16-20 X 3-3/4, GD8

$

$

Not available

0060

BRKT, CLUTCH ANCHOR (BLACK)

$

$

Not available

0061

PAD, CLUTCH ANCHOR

$

$

Not available

0062

Simplicity 5044617SM

WASHER, CLUTCH ANCHOR, 5/16

$8.49

$

In Stock, only 2 left!

0

0064

Simplicity 5025055X18YP

BOLT, 5/16-18 X 2-1/4

$3.99

$

In Stock, only 1 left!

0

0065

Simplicity 5025127SM

NUT, Hex Serrated Flange, 5/16-18,

$3.49

$

In Stock, only 4 left!

0

0080

Simplicity 2828635SM

SCREW, Taptite, 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

0090

Simplicity 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0095

Simplicity 22473GS

FLAT WASHER, M6 - 1/4"
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 1921880SM

WASHER, Lock, 1/4

$3.49

$

Usually ships in 2-12 days

0

0110

Simplicity 1758350YP

MUFFLER

$225.99

$

Usually ships in 2-12 days

0

0120

Simplicity 84006923

HEAT SHIELD

$139.99

$

Usually ships in 2-12 days

0

0130

Simplicity 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

0140

Simplicity 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

0150

Simplicity 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 8

0

0160

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0170

Simplicity 5050831X11YP

HOSE, 1/4" FUEL, 11.00"

$

$

Not available

0180

Simplicity 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

0190

Simplicity 1759205YP

CONTROL, Throttle

$43.99

$

In Stock, only 3 left!

0

0200

Simplicity 5100184SM

CABLE, CHOKE CONTROL, 43.5"

$40.99

$

In Stock, Qty 5

0

0205

Simplicity 703864

WASHER, External, 3/8

$4.49

$

Usually ships in 2-12 days

0

0206

Simplicity 703895

NUT, Hex, 3/8-24

$4.49

$

In Stock, only 2 left!

0

0210

Simplicity 1739312YP

KNOB, Throttle

$11.99

$

Usually ships in 2-12 days

0

0220

Simplicity 797483

SCREW

$4.49

$

Usually ships in 2-12 days

0

0230

Simplicity 703460

NUT

$3.99

$

In Stock, Qty 9

0

0240

Simplicity 1726498SM

HOSE, Oil Drain

$26.99

$

Usually ships in 2-12 days

0

0280

Simplicity 84006920

PANEL, Control

$24.99

$

Usually ships in 2-12 days

0

0290

Simplicity 705876

NUT, Speed, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0310

Simplicity 703953

SCREW, Torx Pan Head Self-Tapping, 1/4-20 X 5/8,

$4.49

$

In Stock, only 2 left!

0

0370

Simplicity 5025585YP

BELLEVILLE, WASHER, 1.1875 X .442 X .089

$4.49

$

In Stock, only 4 left!

0
