2691815-00 - Simplicity Courier XT 61" Zero-Turn Mower, 25hp Briggs & Stratton Suspension Group Parts Diagram

Courier XT 61" Zero-Turn Mower, 25hp Briggs & Stratton

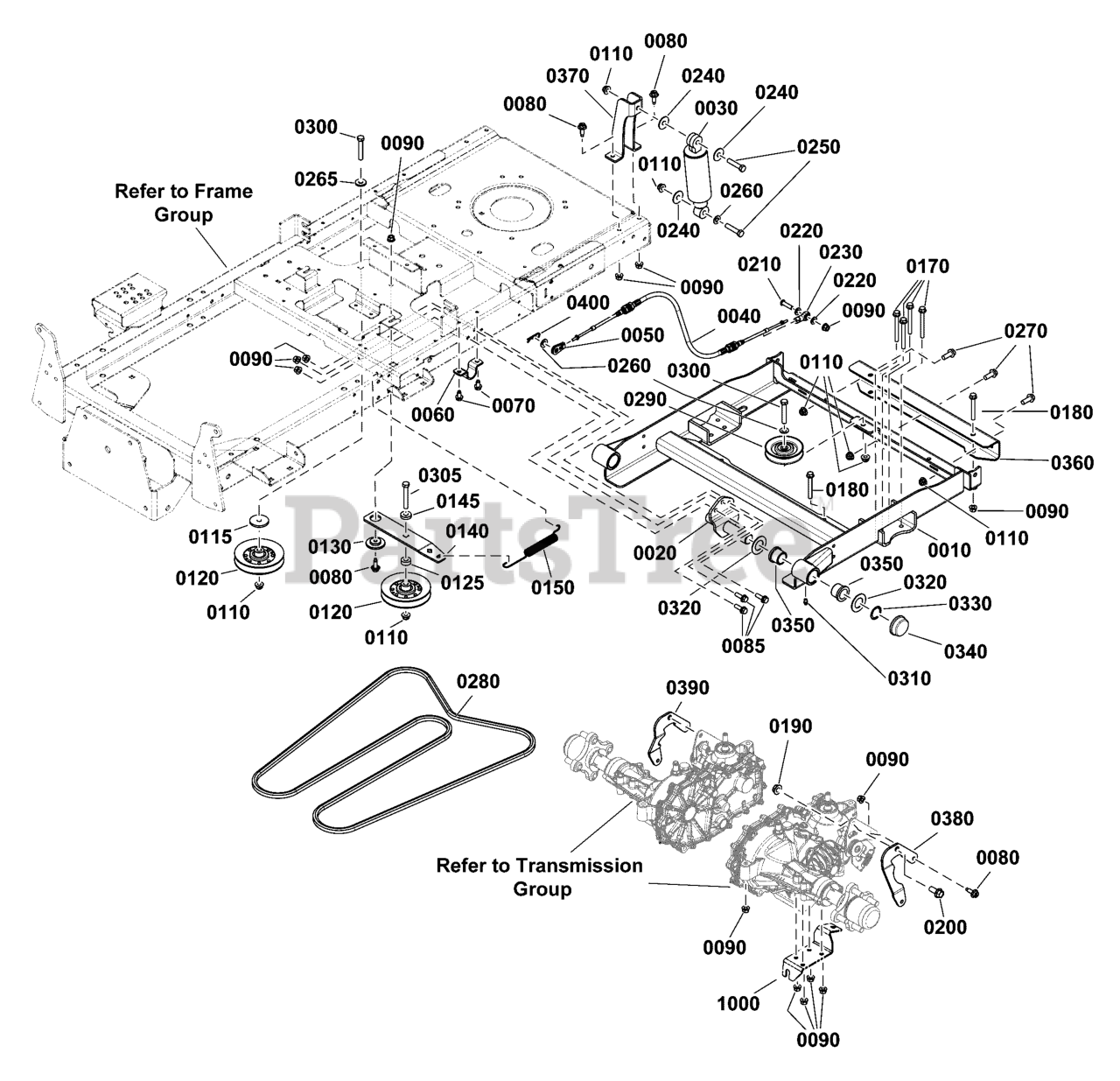

Suspension Group Parts Diagram

  • Title

0010

Simplicity 84007071

CARRIER, Transmission

$

$

Currently unavailable

0020

Simplicity 1758716CYP

SWING ARM, Rear

$53.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1758705YP

**SHOCK ABSORBER, 10 1/2"

$81.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1759206YP

CABLE, Push/Pull

$158.99

$

In Stock, only 4 left!

0

0050

Simplicity 1759413YP

END, Cable

$10.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1720147BZYP

STRAP

$9.99

$

Usually ships in 2-12 days

0

0070

Simplicity 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 5

0

0080

Simplicity 1960667SM

CAPSCREW, Hex Flange Whiz Lock Dog Point, 5/16-18 x 1

$4.99

$

Usually ships in 2-12 days

0

0085

Simplicity 703410

BOLT, Serrated Flange, 5/16-18 X 1.0

$4.49

$

In Stock, only 2 left!

0

0090

Simplicity 5025392SM

NUT, Ny Lock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0110

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0115

Simplicity 706128

SPACER, Idler

$6.99

$

In Stock, only 4 left!

0

0120

Simplicity 1759212YP

PULLEY, V Idler, 4.50"

$57.99

$

In Stock, only 1 left!

0

0125

Simplicity 1667811SM

SPACER

$3.49

$

In Stock, Qty 20+

0

0130

Simplicity 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 1 left!

0

0140

Simplicity 1761878AYP

ARM, Idler, Transmission

$13.99

$

Usually ships in 2-12 days

0

0145

Simplicity 5044960SM

SPACER, .39ID x 1 OD x 1/4

$5.49

$

In Stock, Qty 7

0

0150

Simplicity 1758045YP

SPRING, 7.18"Long, .75" OD, Extension

$8.49

$

In Stock, only 2 left!

0

0170

Simplicity 707943

SCREW, Washer Head, 5/16-18 X 3

$5.99

$

Usually ships in 2-12 days

0

0180

Simplicity 770083

SCREW, Hex Washer, 5/16-18 X 2 1/2

$2.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1930650SM

NUT, Hex Two Way, 7/16-14

$5.49

$

In Stock, only 4 left!

0

0200

Simplicity 1960043SM

SCREW, Hex Flange, 7/16-14 X 1

$7.49

$

Usually ships in 2-12 days

0

0210

Simplicity 703172

SCREW, Button Head

$3.99

$

Usually ships in 2-12 days

0

0220

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

0230

Simplicity 5101801YP

JOINT, Ball, Female, 10-32

$19.99

$

Usually ships in 2-12 days

0

0240

Simplicity 5025165SM

WASHER, Fender, 3/8

$3.99

$

In Stock, only 2 left!

0

0250

Simplicity 5025013X14SM

CAPSCREW, Hex Head, 3/8-16 X 1-3/4

$3.99

$

In Stock, only 2 left!

0

0260

Simplicity 5025156SM

WASHER, Flat, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

0265

Simplicity 704128

WASHER, Flat

$4.99

$

In Stock, Qty 10

0

0270

Simplicity 704038

SCREW, Hex Flange, Whiz Lock, 3/8-16 x 1

$5.99

$

In Stock, only 2 left!

0

0280

Simplicity 885714YP

BELT, Deck

$81.99

$

In Stock, Qty 20+

0

0290

Simplicity 885482YP

IDLER, Pulley

$33.99

$

In Stock, only 1 left!

0

0300

Simplicity 703872

CAPSCREW, Hex Head, 3/8-16 X 2 1/4

$4.99

$

In Stock, Qty 20+

0

0305

Simplicity 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

0310

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0320

Simplicity 703199

WASHER, Flat

$4.99

$

In Stock, only 2 left!

0

0330

Simplicity 703200

NUT, Push

$4.99

$

Usually ships in 2-12 days

0

0340

Simplicity 094618MA

HUB CAP

$5.99

$

In Stock, only 4 left!

0

0350

Simplicity 1758717YP

BUSHING, Flange, 1 x 1

$8.99

$

Usually ships in 2-12 days

0

0360

Simplicity 1759163CYP

SUPPORT, Transmission

$46.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1758778CYP

MOUNT, Rear Shock

$29.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1759021AYP

ARM, Transmission, LH

$25.99

$

Usually ships in 2-12 days

0

0390

Simplicity 1759022AYP

ARM, Transmission, RH

$24.99

$

Usually ships in 2-12 days

0

0400

Simplicity 7091503SM

HAIR PIN, 3/32 x 1-1/2

$3.99

$

In Stock, Qty 20+

0
