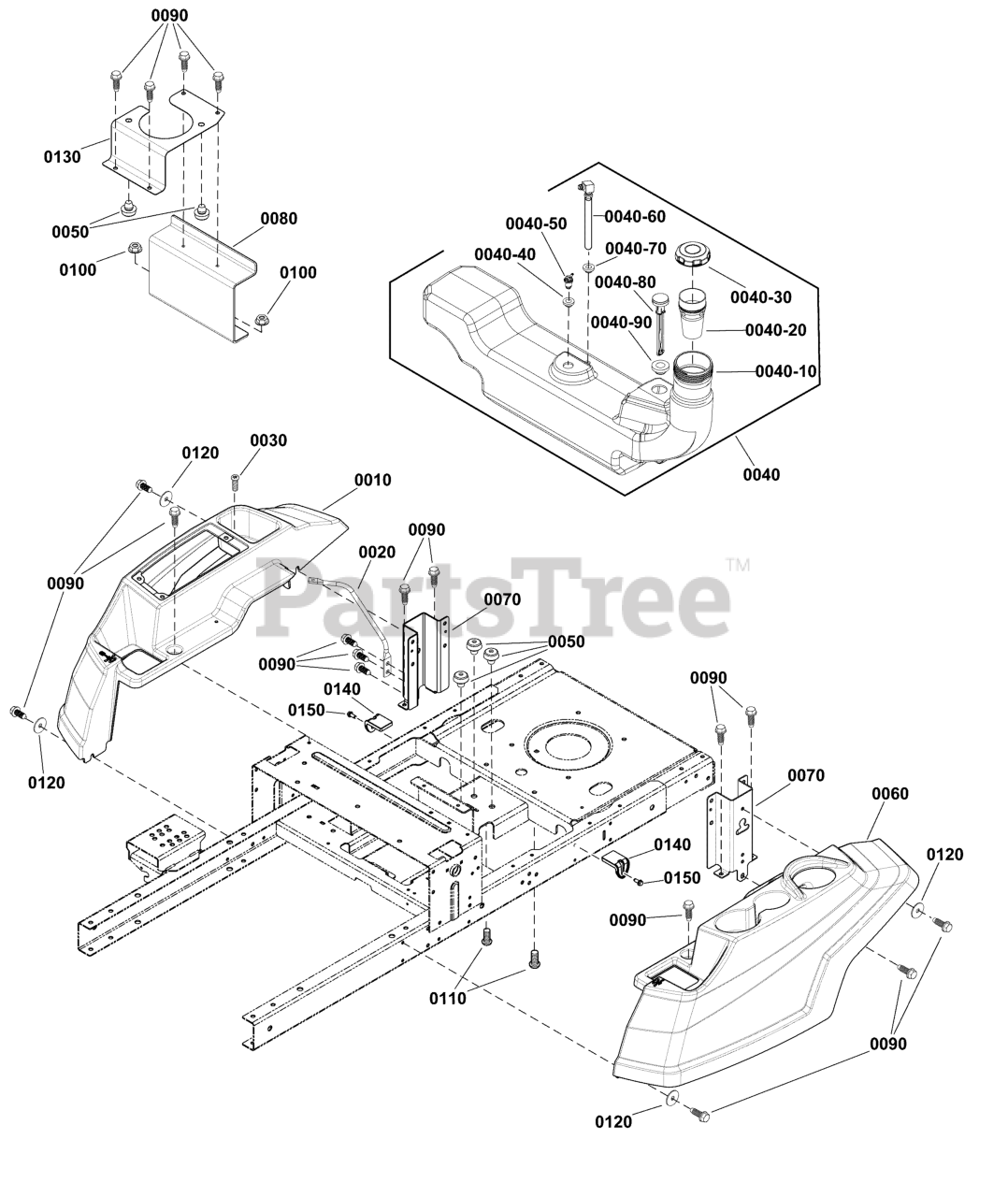

2691814-02 - Simplicity Courier XT 52" Zero-Turn Mower, 25hp Briggs & Stratton Body & Fuel Tank Group Parts Diagram

Courier XT 52" Zero-Turn Mower, 25hp Briggs & Stratton

Body & Fuel Tank Group Parts Diagram

  • Title

0010

Simplicity 84008779

FENDER, Right

$

$

Currently unavailable

0020

Simplicity 1759369YP

ROD, Support

$13.99

$

In Stock, only 1 left!

0

0030

Simplicity 703953

SCREW, 1/4-20X5/8

$4.49

$

In Stock, only 2 left!

0

0040

Simplicity 84004694

FUEL TANK ASSEMBLY

Note: (Includes item Nos. 0040-10, 00410-20, 0040-30, 0040-40, 0040-50, 0040-60, 0040-70, 0040-80 & 0040-90)

$311.99

$

Usually ships in 2-12 days

0

0040-10

TANK, Fuel

Note: ( Included with Ref. No. 0040 )

$

$

Not available

0040-20

Simplicity 1758282YP

FILTER-FILLER NECK

Note: ( Included with Ref. No. 0040 )

$16.99

$

Usually ships in 2-12 days

0

0040-30

Simplicity 1758314YP

CAP-FUEL TANK

Note: ( Included with Ref. No. 0040 )

$35.99

$

Usually ships in 2-12 days

0

0040-40

Simplicity 799624

GROMMET

Note: ( Included with Ref. No. 0040 )

$8.99

$

In Stock, Qty 16

0

0040-50

Simplicity 770046

VENT, Remote

Note: ( Included with Ref. No. 0040 )

$16.99

$

In Stock, only 1 left!

0

0040-60

Simplicity 1758927YP

TUBE-PICK UP

Note: ( Included with Ref. No. 0040 )

$8.99

$

In Stock, Qty 5

0

0040-70

Simplicity 1726400SM

BUSHING
(Superseded to 1654930SM)

Note: ( Included with Ref. No. 0040 )

$7.99

$

In Stock, Qty 20+

0

0040-80

Simplicity 1758928YP

GAUGE-FUEL

Note: ( Included with Ref. No. 0040 )

$96.99

$

Usually ships in 2-12 days

0

0040-90

Simplicity 84004692

GROMMET

Note: ( Included with Ref. No. 0040 )

$4.99

$

Usually ships in 2-12 days

0

0050

Simplicity 197546GS

MOUNT-VIBRATION

$7.99

$

In Stock, only 2 left!

0

0060

Simplicity 1758076YP

FENDER-LEFT

$262.99

$

In Stock, only 1 left!

0

0070

Simplicity 1758239AYP

SUPPORT-FENDER

$40.99

$

Usually ships in 2-12 days

0

0080

Simplicity 84002196

BRACKET

$43.99

$

Usually ships in 2-12 days

0

0090

Simplicity 703228

SCREW, 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0110

Simplicity 704038

SCREW

$5.99

$

In Stock, only 2 left!

0

0120

Simplicity 1960044SM

WASHER-0.312(0.33IDX1

$4.49

$

In Stock, only 3 left!

0

0130

Simplicity 1759140AYP

STRAP-FUEL TANK

$35.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1760244YP

SUPPORT, Fuel Tank

$7.49

$

Usually ships in 2-12 days

0

0150

Simplicity 703054

SCREW, 1/4-20X0.625

$4.49

$

In Stock, Qty 5

0
