2691678-01 - Simplicity Prestige 52" Garden Tractor, 27hp Seat Group Parts Diagram

Prestige 52" Garden Tractor, 27hp

Seat Group Parts Diagram

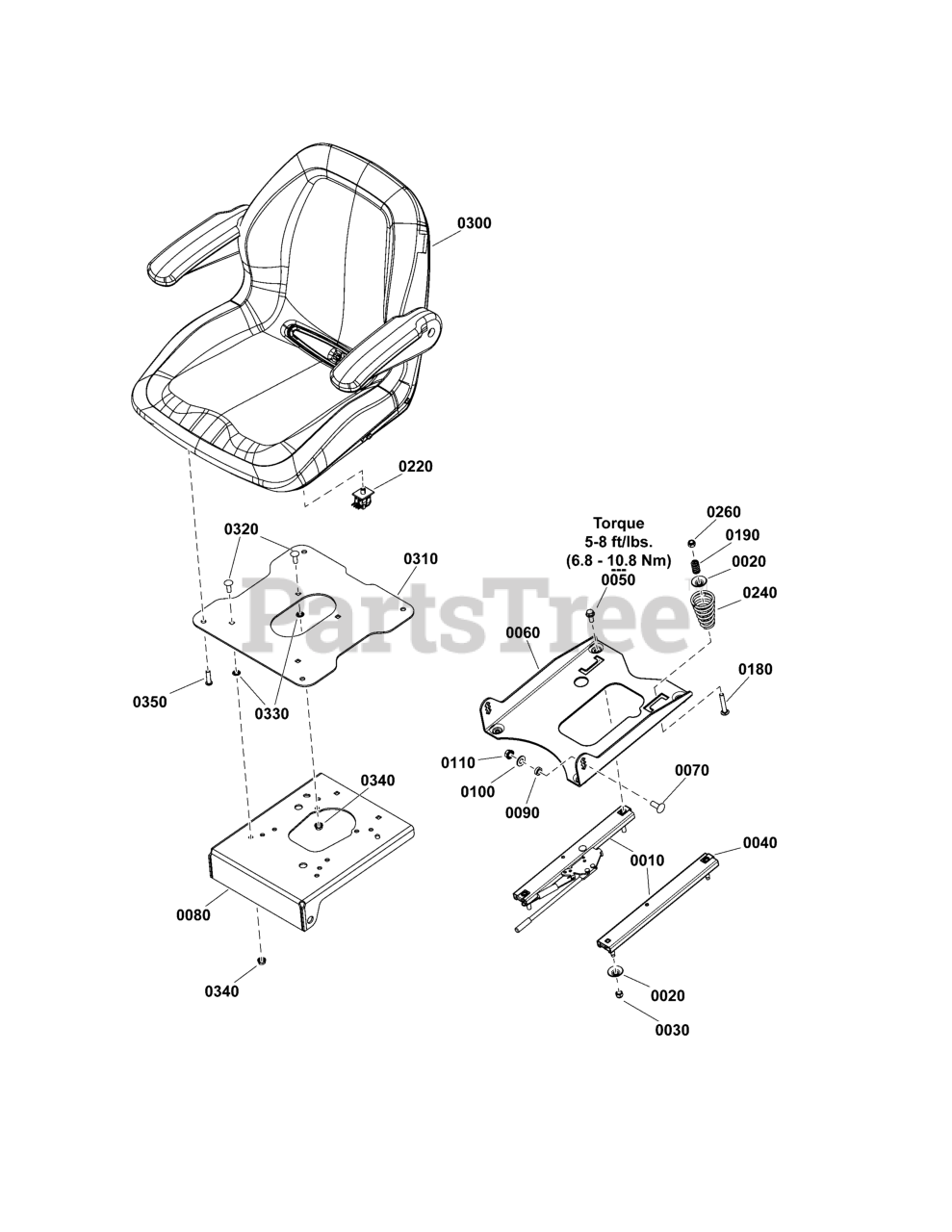

  • Title

0010

Simplicity 1722356SM

SLIDE-SEAT VIPER (2 PC SEAT)

$62.99

$

In Stock, only 1 left!

0

0020

Simplicity 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

In Stock, only 1 left!

0

0030

Simplicity 703902

NUT, Hex Nylock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0040

Simplicity 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 3 left!

0

0050

Simplicity 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 14

0

0060

Simplicity 1722128ASM

SUPPORT, Seat

$87.99

$

Usually ships in 2-12 days

0

0070

Simplicity 703815

BOLT, Carriage, 3/8-16 X 1

$4.49

$

In Stock, only 4 left!

0

0080

Simplicity 1755623AYP

BRACKET, Seat Support

$125.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1663752SM

SPACER, 25/64 x 5/8 x 3/16

$5.99

$

In Stock, only 2 left!

0

0100

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0110

Simplicity 776060MA

Pin, Hanger

$20.99

$

In Stock, only 1 left!

0

0180

Simplicity 704035

BOLT, Carriage, 5/16-18 X 2

$4.49

$

In Stock, only 2 left!

0

0190

Simplicity 1714263SM

SPRING, Compression

$4.99

$

In Stock, only 1 left!

0

0220

Simplicity 5101280YP

SWITCH, Low Prof, NC/NO

$30.99

$

In Stock, Qty 9

0

0240

Simplicity 1717051SM

SPRING, Seat

$13.99

$

In Stock, Qty 20+

0

0260

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0300

Simplicity 84003734

SEAT

$494.99

$

Usually ships in 2-12 days

0

0310

Simplicity 84003735

ADAPTER

$81.99

$

Usually ships in 2-12 days

0

0320

Simplicity 704065

BOLT, Carriage, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 5

0

0330

Simplicity 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0340

Simplicity 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0350

Simplicity 703172

SCREW, Button Head

$3.99

$

Usually ships in 2-12 days

0
