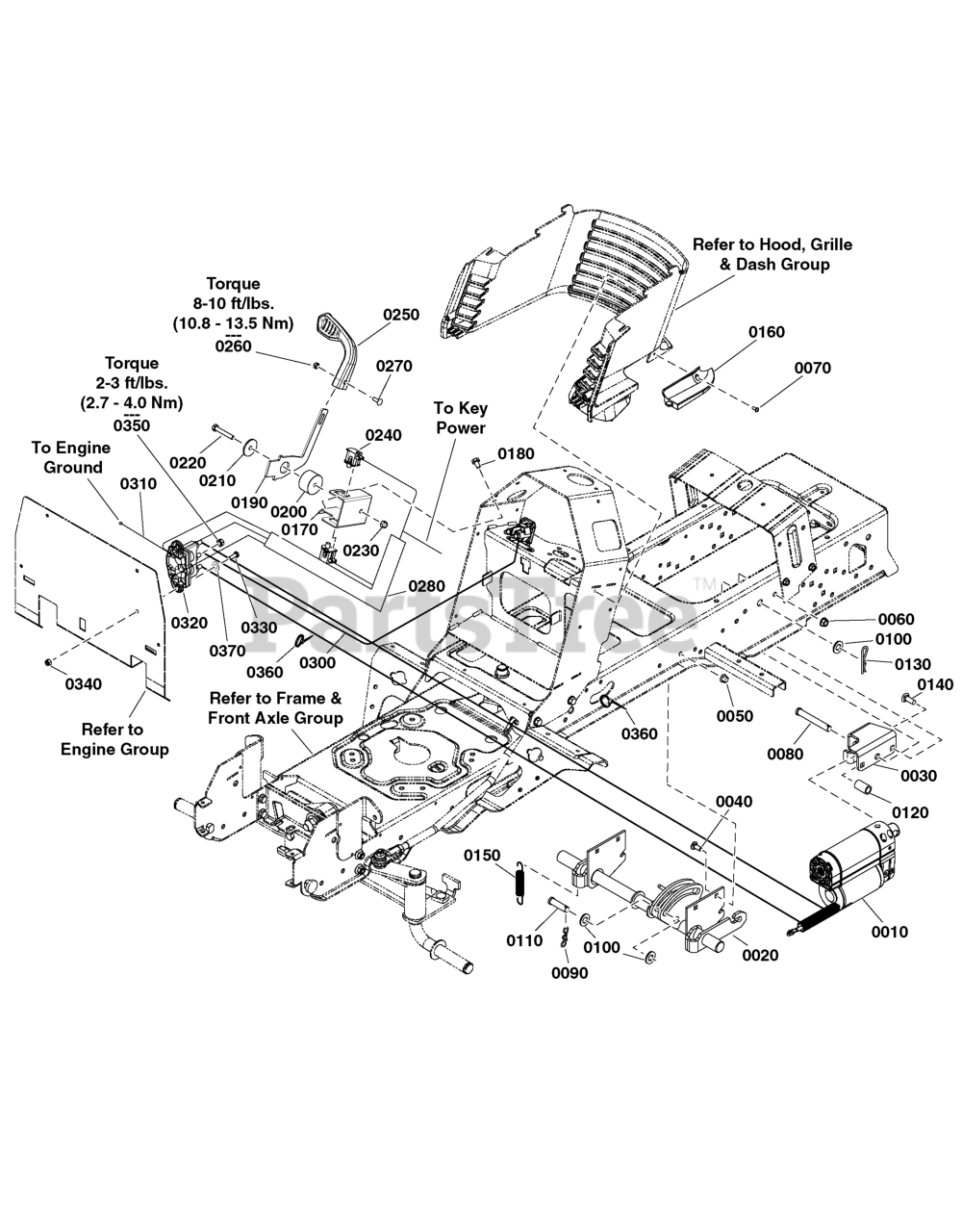

2691678-00 - Simplicity Prestige 52" Garden Tractor, 27hp Electric Lift Group Parts Diagram

Prestige 52" Garden Tractor, 27hp

Electric Lift Group Parts Diagram

  • Title

0010

Simplicity 84003773

ACTUATOR

$963.99

$

Usually ships in 2-12 days

0

0020

Simplicity 84003699

ACTUATOR

$204.99

$

Usually ships in 2-12 days

0

0030

Simplicity 84003751

SUPPORT

$32.99

$

Usually ships in 2-12 days

0

0040

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0050

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0060

Simplicity 703333

NUT, 3/8-16, Flanged Lock, GR5

$4.99

$

In Stock, Qty 20+

0

0070

Simplicity 1739329YP

SCREW, PT Thread, 5mm Dia. x 12mm

$4.49

$

Usually ships in 2-12 days

0

0080

Simplicity 1725223SM

PIN, Clevis

$6.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1722320SM

PIN, Cotter, Locking,

$3.49

$

In Stock, Qty 20+

0

0100

Simplicity 704123

WASHER, 1/2 Flat

$4.49

$

In Stock, only 3 left!

0

0110

Simplicity 84005130

PIN, Clevis

$9.49

$

In Stock, Qty 5

0

0120

Simplicity 84003784

SPACER

$13.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0

0140

Simplicity 703815

BOLT, Carriage, 3/8-16 X 1

$4.49

$

In Stock, only 4 left!

0

0150

Simplicity 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 20+

0

0160

Simplicity 1755441YP

PLUG, Dash Lift

$6.99

$

Usually ships in 2-12 days

0

0170

Simplicity 84003957

BRACKET

$15.99

$

Usually ships in 2-12 days

0

0180

Simplicity 703985

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2

$4.49

$

In Stock, only 3 left!

0

0190

Simplicity 84003776

LEVER

$13.99

$

Usually ships in 2-12 days

0

0200

Simplicity 84004945

SPACER

$10.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1920283SM

WASHER, Flat, 11/32 x 1-1/2 x 7/64

$4.99

$

In Stock, Qty 5

0

0220

Simplicity 703867

CAPSCREW, Hex Head, 5/16-18 x 2, GR5

$4.99

$

In Stock, only 4 left!

0

0230

Simplicity 703902

NUT, Hex Nylock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0240

Simplicity 84003777

SWITCH

$9.49

$

Usually ships in 2-12 days

0

0250

Simplicity 84003726

HANDLE

$11.99

$

Usually ships in 2-12 days

0

0260

Simplicity 84004946

NUT, Acorn, 1/4-20

$2.99

$

Usually ships in 2-12 days

0

0270

Simplicity 703584

BOLT, Carriage, 1/4-20 x 1

$3.99

$

In Stock, Qty 9

0

0280

Simplicity 84003775

HARNESS

$42.99

$

Usually ships in 2-12 days

0

0300

Simplicity 84004339

CABLE, Power

$32.99

$

Usually ships in 2-12 days

0

0310

Simplicity 84003740

CABLE

$15.99

$

Usually ships in 2-12 days

0

0320

Simplicity 84003769

CONTACTOR

$182.99

$

Usually ships in 2-12 days

0

0330

Simplicity 703925

CAPSCREW, Hex Head, 1/4-20 x 5/8, GR5

$4.49

$

In Stock, Qty 7

0

0340

Simplicity 703232

NUT, Hex Lock, 1/4-20, ESNA

$4.49

$

In Stock, Qty 20+

0

0350

Simplicity 2860750SM

NUT, Hex Lock, KEPS, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

0360

Simplicity 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0370

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0
