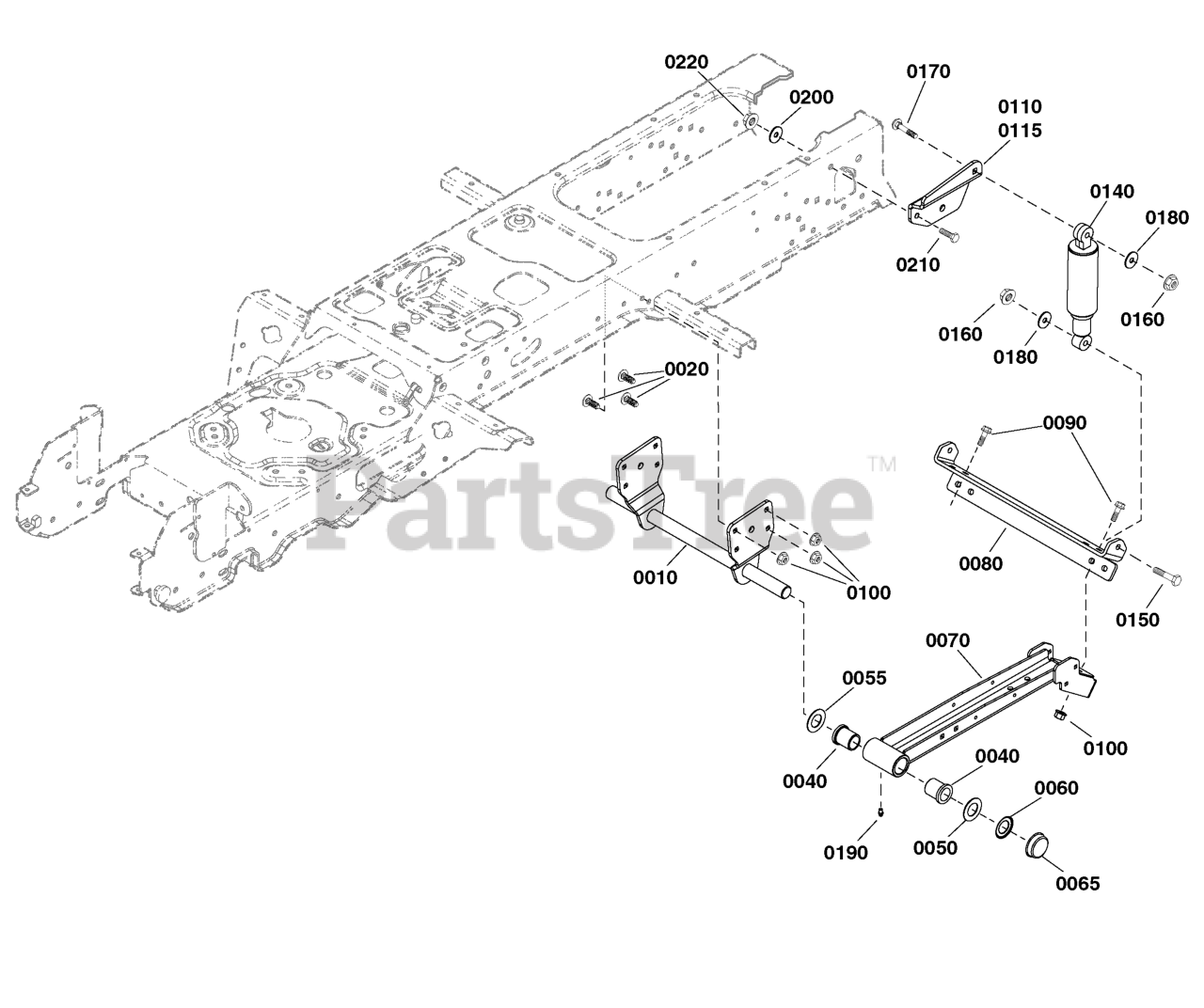

2691676-01 - Simplicity Conquest 52" Garden Tractor, 25hp Rear Suspension Group Parts Diagram

Conquest 52" Garden Tractor, 25hp

Rear Suspension Group Parts Diagram

  • Title

0010

Simplicity 84004261

CARRIER SUPPORT

$131.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1931334SM

BOLT, Carriage, Short Neck, 5/16-18 x 7/8, GR 5
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

0040

Simplicity 5021541SM

BUSHING, FLANGE

$9.99

$

In Stock, Qty 10

0

0050

Simplicity 703199

WASHER, Flat

$4.99

$

In Stock, only 2 left!

0

0055

Simplicity 84004830

WASHER, 1"

$

$

Currently unavailable

0060

Simplicity 703200

NUT, Push

$4.99

$

Usually ships in 2-12 days

0

0065

Simplicity 094618MA

HUB CAP

$5.99

$

In Stock, Qty 5

0

0070

Simplicity 84004828

CARRIER ARM ASSEMBLY

$113.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1754642AYP

BRACKET, Support, Rear Swing Arm

$63.99

$

Usually ships in 2-12 days

0

0090

Simplicity 703410

BOLT, Serrated Flange, 5/16-18 X 1.0

$4.49

$

In Stock, only 2 left!

0

0100

Simplicity 1960686SM

NUT, Hex Flange Nylock, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0110

Simplicity 1754646AYP

BRACKET, Shock Mount, RH

Note: ( Not Shown )

$34.99

$

Usually ships in 2-12 days

0

0115

Simplicity 1755430AYP

BRACKET, Shock Mount, LH

$27.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1755531YP

ABSORBER, Shock

$118.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1758705YP

**SHOCK ABSORBER, 10 1/2"

$81.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1921971YP

CAPSCREW, Hex Head, 3/8-16 x 1-3/4 GR5

$

$

Not available

0160

Simplicity 1960687SM

NUT, Hex Flange Nylock, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0170

Simplicity 1931353SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-3/4, G5
(Superseded to 703858)

$4.99

$

In Stock, Qty 6

0

0180

Simplicity 5025165SM

WASHER, Fender, 3/8

$3.99

$

In Stock, only 2 left!

0

0190

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0200

Simplicity 704128

WASHER, Flat

$4.99

$

In Stock, Qty 11

0

0210

Simplicity 703407

CAPSCREW, Hex Head, 3/8-16 x 1, GR5

$11.99

$

In Stock, Qty 7

0

0220

Simplicity 703793

NUT, Lock, Flange, 3/8-16

$4.49

$

In Stock, Qty 5

0
