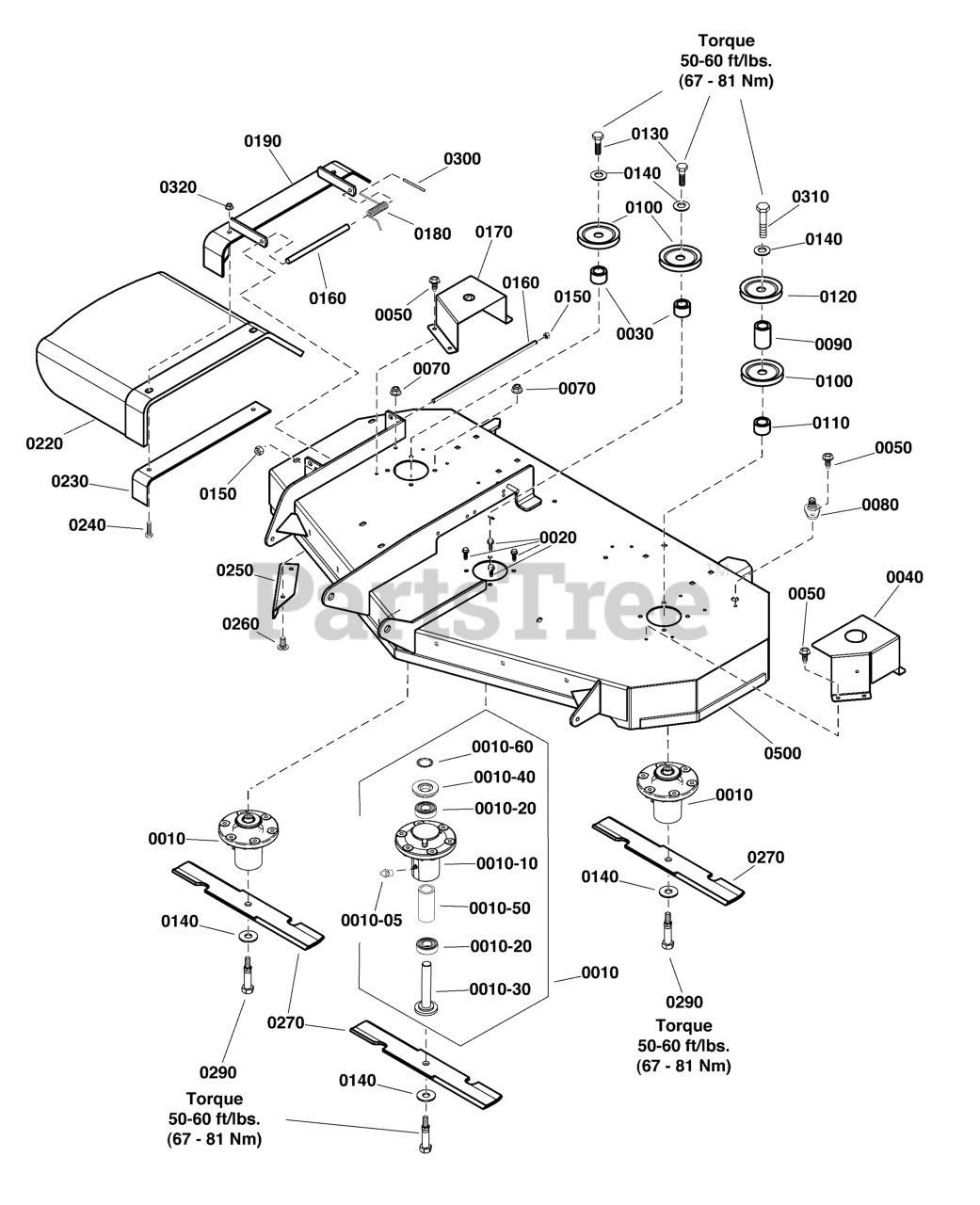

2691676-01 - Simplicity Conquest 52" Garden Tractor, 25hp 52" (132cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

Conquest 52" Garden Tractor, 25hp

52" (132cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0010

Simplicity 84003174

ARBOR ASSEMBLY

$110.99

$

In Stock, Qty 20+

0

0010-05

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0010-10

Simplicity 84003653

HOUSING, w/Lube Fittting

$81.99

$

Usually ships in 2-12 days

0

0010-20

Simplicity 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0010-30

Simplicity 84003170

SHAFT, Spindle

$29.99

$

In Stock, only 2 left!

0

0010-40

Simplicity 84003166

SHIELD, Arbor

$6.99

$

In Stock, Qty 8

0

0010-50

Simplicity 84003167

SPACER, Bearing

$6.99

$

In Stock, Qty 7

0

0010-60

Simplicity 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0020

Simplicity 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0030

Simplicity 1737457YP

SPACER, Pulley

$10.99

$

In Stock, only 1 left!

0

0040

Simplicity 84004328

COVER, Arbor, LH

$62.99

$

Usually ships in 2-12 days

0

0050

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0070

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0080

Simplicity 1756247YP

ADAPTER, Washout Port

$6.49

$

Usually ships in 2-12 days

0

0090

Simplicity 706364

SPACER, Hub

$28.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1755470YP

PULLEY, Deep Groove, 4 1/4

$13.99

$

In Stock, only 1 left!

0

0110

Simplicity 84003706

SPACER

$7.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1732951SM

PULLEY, .68" Deep-Groove OD 4.6"

$19.99

$

In Stock, Qty 20+

0

0130

Simplicity 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 12

0

0140

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0150

Simplicity 5025045SM

NUT, Hex Lock, Nylon, 5/16-24

$3.49

$

In Stock, Qty 11

0

0160

Simplicity 5042555SM

ROD, 5/16 x 13-3/4

$10.99

$

Usually ships in 2-12 days

0

0170

Simplicity 84004329

COVER, Arbor, RH

$42.99

$

Usually ships in 2-12 days

0

0180

Simplicity 5023385SM

SPRING, Torsion

$8.49

$

Usually ships in 2-12 days

0

0190

Simplicity 5413404AYP

MOUNT, Discharge

$68.99

$

In Stock, only 1 left!

0

0220

Simplicity 5402404SM

CHUTE, DISCHARGE, BEND RUBBER, 44/48/52 (5100842)

$170.99

$

Usually ships in 2-12 days

0

0230

Simplicity 5402362AYP

SUPPORT, DISCHARGE CHUTE, 48/52 - BLK

$43.99

$

In Stock, only 4 left!

0

0240

Simplicity 703406

CAPSCREW, Hex Head, 3/8-16 X 1 1/2, GR5

$4.99

$

In Stock, only 1 left!

0

0250

Simplicity 5405557YP

PLATE, Deflector

$21.99

$

In Stock, only 1 left!

0

0260

Simplicity 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 7

0

0270

Simplicity 1756152YP

BLADE-MOWER
(Superseded to 1756152AYP)

$27.99

$

In Stock, Qty 20+

0

0290

Simplicity 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 12

0

0300

Simplicity 5023489SM

CAP, Protector

$3.99

$

Usually ships in 2-12 days

0

0310

Simplicity 84004720

BOLT, 7/16-14 x 3 1/2

$

$

Currently unavailable

0320

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0500

Simplicity 1687719YP

KIT, Mower Deck 52", Orange

$2348.99

$

Usually ships in 2-12 days

0
