2691675-00 - Simplicity Conquest 50" Garden Tractor, 25hp Steering Group - Power Steering Parts Diagram

Conquest 50" Garden Tractor, 25hp

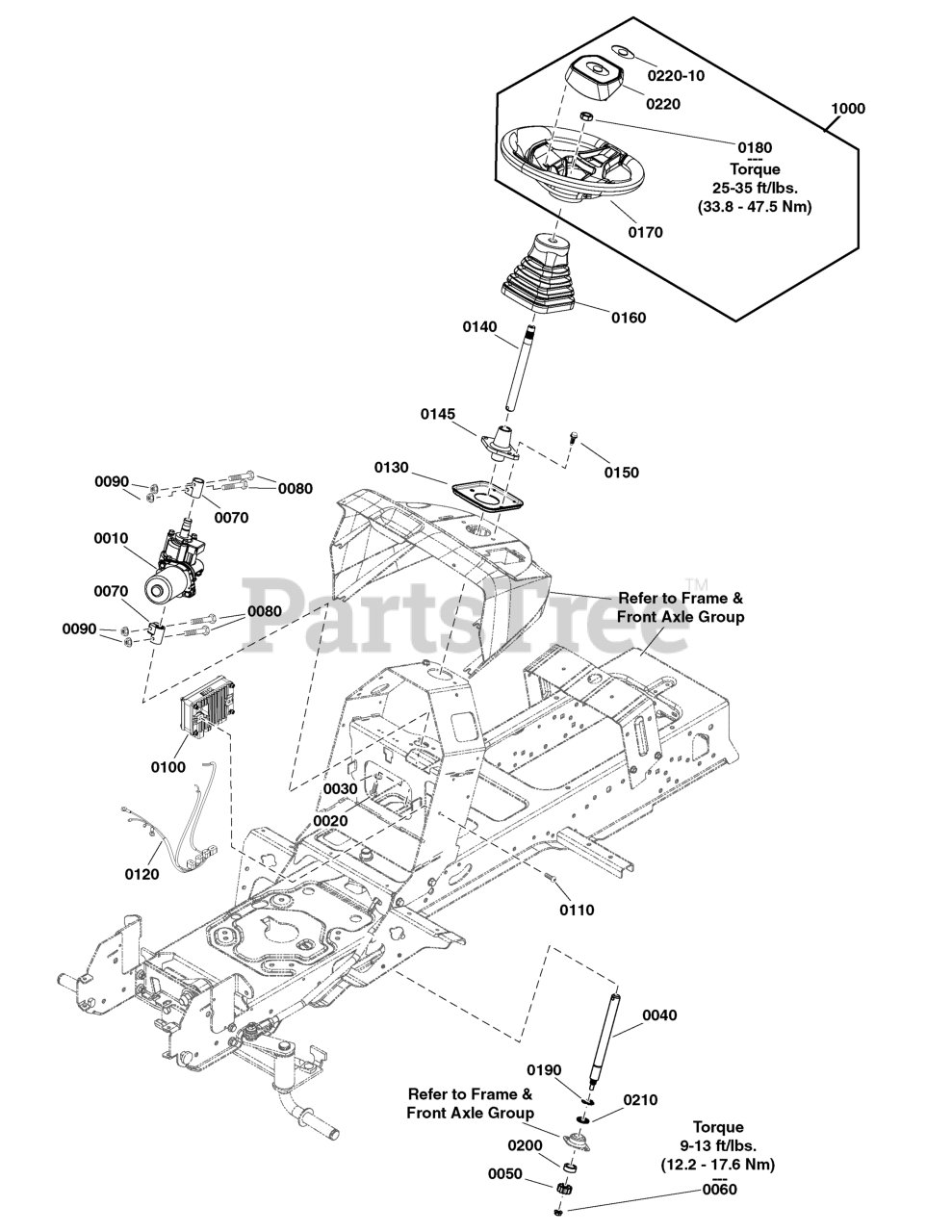

Steering Group - Power Steering Parts Diagram

  • Title
0010

Simplicity 84003790

POWER STEERING ASSEMBLY

$555.99

$

Usually ships in 2-12 days

0

0020

Simplicity 84004772

CAPSCREW, Hex Head, M8-1.25 x 18mm

$4.99

$

Usually ships in 2-12 days

0

0030

Simplicity 703116

WASHER, Split Lock, .32 x .58 x .08

$3.49

$

In Stock, Qty 20+

0

0040

$31.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1761013YP

GEAR, Pinion

$6.99

$

In Stock, Qty 20+

0

0060

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0070

$27.99

$

Usually ships in 2-12 days

0

0080

Simplicity 703234

CAPSCREW, Hex Head, 1/4-20 X 1 1/2, G5

$4.49

$

In Stock, only 4 left!

0

0090

Simplicity 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 84003760

CONTROLLER

$277.99

$

Usually ships in 2-12 days

0

0110

Simplicity 84004773

CAPSCREW, Button Head

$5.49

$

Usually ships in 2-12 days

0

0120

$37.99

$

Usually ships in 2-12 days

0

0130

Simplicity 84003729

PLATE, Steering Mount

$15.99

$

Usually ships in 2-12 days

0

0140

$26.99

$

Usually ships in 2-12 days

0

0145

Simplicity 84003731

SUPPORT, Upper Shaft

$17.99

$

Usually ships in 2-12 days

0

0150

Simplicity 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0160

Simplicity 1755550YP

BELLOWS, Steering Cover

$28.99

$

Usually ships in 2-12 days

0

0170

STEERING WHEEL

Note: ( Refer to Note: * )

$

$

Not available

0180

Simplicity 1960576SM

NUT, Hex Lock, ESNA Light, 5/8-18

$5.99

$

In Stock, Qty 9

0

0190

Simplicity 1611710SM

RING, Klipring, For 3/4 Dia. Shaft

$4.49

$

In Stock, Qty 20+

0

0200

Simplicity 1722461SM

SPACER, 3/4 x 1-1/16 x 3/8, Powder Metal

$26.99

$

In Stock, Qty 14

0

0210

Simplicity 706388

SPACER, .766 x 1.06 x 1/8

$7.99

$

Usually ships in 2-12 days

0

0220

Simplicity 84003162

CAP, Steering Wheel, Simplicity

$10.99

$

In Stock, only 1 left!

0

0220-10

Simplicity 1755843YP

DECAL, Logo, Steering Wheel

$15.99

$

In Stock, only 1 left!

0

1000

Simplicity 84001122

KIT, Steering Wheel, Simplicity

Note: ( Incl. Ref. Nos. 0170, 0180, 0220 & 0220-10 )

$82.99

$

Usually ships in 2-12 days

0
