2691675-00 - Simplicity Conquest 50" Garden Tractor, 25hp 50" (127cm) Mower Deck - Height Adjust & Roller Group Parts Diagram

Conquest 50" Garden Tractor, 25hp

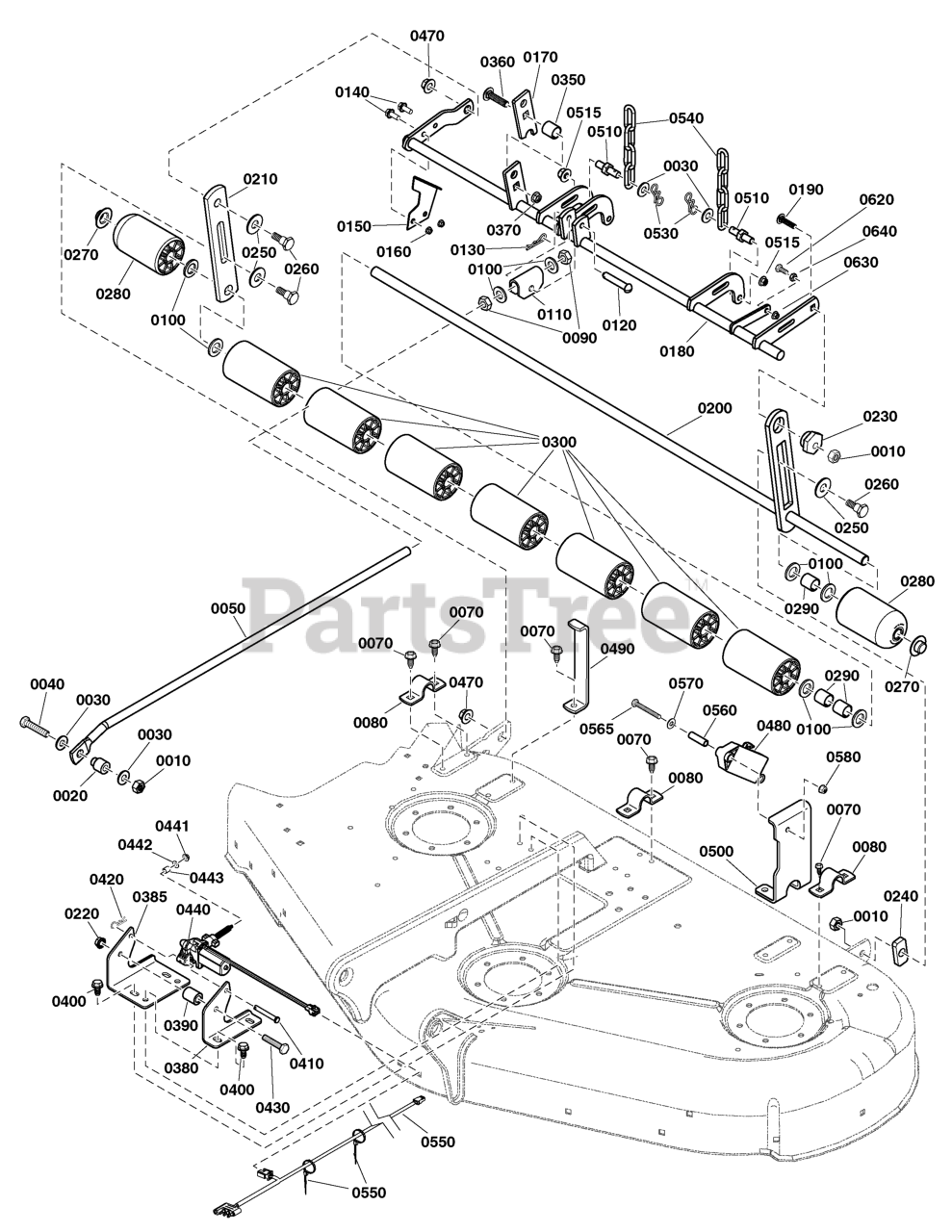

50" (127cm) Mower Deck - Height Adjust & Roller Group Parts Diagram

  • Title

0010

Simplicity 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 11

0

0020

Simplicity 1706644SM

SPACER, .380/.377 I.D. x .750 O.D. x .970 Long

$8.49

$

In Stock, only 3 left!

0

0030

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0040

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 13

0

0050

Simplicity 1722995SM

ROD, 5/8 x 29-5/8 Long

$41.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1664847CAYP

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0080

Simplicity 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

0090

Simplicity 703912

NUT, Hex, 5/8-11

$3.49

$

In Stock, Qty 5

0

0100

Simplicity 703580

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

0110

Simplicity 1706645ASM

TRUNNION, Pitch Adjust
(Superseded to 84003858)

$8.49

$

Usually ships in 2-12 days

0

0120

Simplicity 2118053SM

PIN, Round Head, Drilled, 3/8 x 2, Black
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

0130

Simplicity 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0170

Simplicity 1733776AYP

ARM, Rear

$14.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1756040AYP

SHAFT, Rocker

$210.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 2 left!

0

0200

Simplicity 1716155ASM

SHAFT & BAR ASSEMBLY, Roller 50" Mower

$107.99

$

In Stock, only 4 left!

0

0210

Simplicity 1704074ASM

BAR, Roller 5/16

$17.99

$

In Stock, only 1 left!

0

0220

Simplicity 1927557SM

NUT, Hex Flange Lock, Large, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1704082SM

NUT, Hex Adjusting, 11/16

$5.49

$

In Stock, Qty 17

0

0240

Simplicity 1677507SM

SLIDE, .803 x 1.7

$6.99

$

In Stock, Qty 5

0

0250

Simplicity 703451

WASHER, Flat, 17/32 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

0260

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34, 1/2 Shoulder

$6.99

$

In Stock, Qty 20+

0

0270

Simplicity 1960520SM

NUT, Push, 5/8
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

0280

Simplicity 1722036SM

ROLLER, Rounded, 4.1 LG, 650 ID, 2.50 OD Rounded End

$7.99

$

In Stock, Qty 20+

0

0285

Simplicity 1756136AYP

BRACKET, Mounting

$17.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1709195SM

SPACER, .66 X 7/8 X 1 1/4

$5.99

$

In Stock, Qty 20+

0

0300

Simplicity 1668513SM

ROLLER, .652 ID, 2.50 OD, 4.10 LG

$10.99

$

In Stock, Qty 20+

0

0350

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

0360

Simplicity 1960706SM

BOLT, Carriage, Short Neck, 1/2-13 x 2

$5.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1960689SM

NUT, Hex, Toplock Flange,1/2-13

$3.49

$

Usually ships in 2-12 days

0

0380

Simplicity 1733828ASM

BRACKET, Mounting 10GA

$21.99

$

Usually ships in 2-12 days

0

0390

Simplicity 1733068SM

SPACER, 0.39 x 3/4 x 0.965

$13.99

$

Usually ships in 2-12 days

0

0400

Simplicity 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 5

0

0410

Simplicity 703063

PIN, Sheer, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0

0420

Simplicity 704039

CLIP, Hair Pin

$4.49

$

In Stock, Qty 9

0

0430

Simplicity 1922127SM

SCREW, Hex Head Cap, 5/16-18 x 1 3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1753528YP

MOTOR, Deck Lift
(Superseded to 1761788YP)

$107.99

$

In Stock, Qty 15

0

0441

Simplicity 1960757SM

NUT, Hex, 1/4-20 L.H. Thread

$5.49

$

Usually ships in 2-12 days

0

0442

Simplicity 1921319SM

WASHER, 1/4, x 5/8 OD
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0443

Simplicity 5045178SM

SPACER, .52 X 1.00 X .75, CZ

$7.49

$

In Stock, Qty 6

0

0470

Simplicity 1960339SM

NUT, Hex Flange, MAC Lock Large, 3/8-16

$

$

Not available

0480

Simplicity 1750618YP

SENSOR, Electric Height Of Cut

$54.99

$

In Stock, only 1 left!

0

0490

Simplicity 1722748ASM

BRACKET, Up-Stop, 6" Long

$19.99

$

Usually ships in 2-12 days

0

0500

Simplicity 1756064AYP

BRACKET, Height of Cut

$22.99

$

Usually ships in 2-12 days

0

0510

Simplicity 703816

PIN, Threaded, Shoulder

$12.99

$

Usually ships in 2-12 days

0

0515

Simplicity 1960687SM

NUT, Hex Flange Nylock, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0530

Simplicity 1722320SM

PIN, Cotter, Locking,

$3.49

$

In Stock, Qty 20+

0

0540

Simplicity 1708088ASM

CHAIN, Lift, 4 Link

$11.99

$

Usually ships in 2-12 days

0

0550

Simplicity 84003749

HARNESS, Mower, EHOC

$14.99

$

Usually ships in 2-12 days

0

0555

Simplicity 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0560

Simplicity 5101215YP

SPACER, 1/4 ID x 3/8 OK x 1-1/4

$8.49

$

Usually ships in 2-12 days

0

0565

Simplicity 1921963SM

CAPSCREW, Hex Flange Head, 1/4-20 x 2

$4.49

$

Usually ships in 2-12 days

0

0570

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0580

Simplicity 7091584SM

NUT, Serrated Flange,1/4-20, GR5
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

0620

Simplicity 5025011X18SM

BOLT, 5/16-18 X 2-1/4" GD5 YZ

$3.99

$

In Stock, only 1 left!

0

0630

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0640

Simplicity 5025388YP

NUT, Hex Jam, 5/16-18

$3.99

$

Usually ships in 2-12 days

0
