Broadmoor 52" Lawn Tractor, 25hp

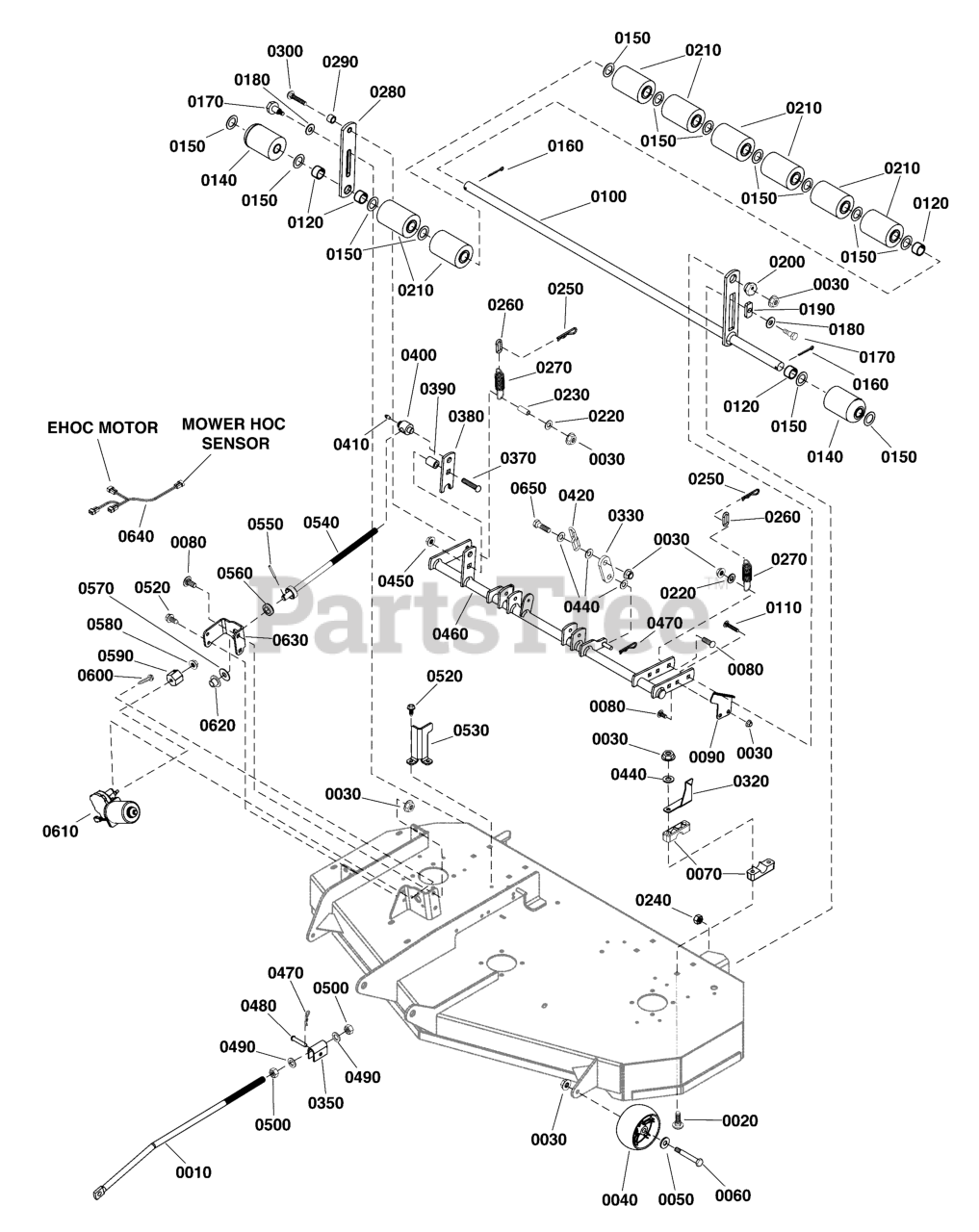

52" (132cm) Mower Deck - Height Adjust & Roller Group Parts Diagram

  • Title

0010

Simplicity 1754971YP

ROD, Pitch

$46.99

$

In Stock, only 2 left!

0

0020

Simplicity 5025146X22YP

BOLT, Carriage, 3/8-16 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

0030

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0040

Simplicity 1736896YP

WHEEL

$16.99

$

In Stock, only 4 left!

0

0050

Simplicity 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0060

Simplicity 1736539YP

BOLT, Shoulder, 3/8-16 x 3.41, .750 THRD

$8.99

$

Usually ships in 2-12 days

0

0070

Simplicity 5100634SM

PIVOT BLOCK

$7.49

$

Usually ships in 2-12 days

0

0080

Simplicity 7091640SM

BOLT, Carriage, 3/8-16 x 1 GR5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

0090

Simplicity 1755871AYP

BRACKET, Height Of Cut

$14.99

$

In Stock, only 1 left!

0

0100

Simplicity 1754982AYP

SHAFT, Roller

$239.99

$

Usually ships in 2-12 days

0

0110

Simplicity 5025146X16SM

BOLT, Carriage, 3/8-16 x 2

$4.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1701873SM

SPACER, 1.02 ID

$6.49

$

In Stock, Qty 5

0

0140

Simplicity 1678043SM

ROLLER

$45.99

$

In Stock, Qty 20+

0

0150

Simplicity 703149

WASHER

$3.49

$

In Stock, Qty 20+

0

0160

Simplicity 1918459SM

PIN, Cotter, .188 X 1.500
(Superseded to 703983)

$4.49

$

In Stock, Qty 9

0

0170

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34, 1/2 Shoulder

$6.99

$

In Stock, Qty 20+

0

0180

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

0190

Simplicity 1677507SM

SLIDE

$6.99

$

In Stock, only 3 left!

0

0200

Simplicity 1704082SM

NUT, Hex Adjusting, 11/16

$5.49

$

In Stock, Qty 16

0

0210

Simplicity 1678042YP

ROLLER, W/Bushings

$26.99

$

In Stock, only 4 left!

0

0220

Simplicity 5025165SM

WASHER, Fender, 3/8

$3.99

$

In Stock, only 2 left!

0

0230

Simplicity 5041931SM

SPACER, 3/8 x 1/2 x 1-1/4

$5.99

$

Usually ships in 2-12 days

0

0240

Simplicity 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 7

0

0250

Simplicity 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0

0260

Simplicity 1755637YP

COIL CHAIN

$9.99

$

In Stock, only 2 left!

0

0270

Simplicity 1755628YP

SPRING, Extension

$8.99

$

In Stock, Qty 20+

0

0280

Simplicity 1754967AYP

SUPPORT, Upright, RH

$29.99

$

Usually ships in 2-12 days

0

0290

Simplicity 706056

SPACER, .39 x .55 x .56

$5.49

$

Usually ships in 2-12 days

0

0300

Simplicity 5025013X24SM

BOLT, 3/8-16 X 3

$3.99

$

In Stock, only 1 left!

0

0320

Simplicity 1755872AYP

INDICATOR, Height Of Cut

$16.99

$

Usually ships in 2-12 days

0

0330

Simplicity 84004628

LINK, Transport

$12.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1706645ASM

TRUNNION
(Superseded to 84003858)

$8.49

$

Usually ships in 2-12 days

0

0370

Simplicity 1960489SM

BOLT, Carriage, Short Neck, 1/2-13 x 2-1/2, GR5

$9.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1755004AYP

ARM, EHOC

$12.99

$

Usually ships in 2-12 days

0

0390

Simplicity 1679166SM

SPACER, 1/2 x 7/8 x 1 3/16

$7.49

$

In Stock, only 2 left!

0

0400

Simplicity 1715892SM

TRUNNION

$39.99

$

In Stock, only 2 left!

0

0410

Simplicity 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0420

Simplicity 1731383ASM

CHAIN, Link, 2 Links

$6.49

$

In Stock, only 2 left!

0

0440

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0450

Simplicity 1960689SM

NUT, Hex, Toplock Flange,1/2-13

$3.49

$

Usually ships in 2-12 days

0

0460

Simplicity 1754969AYP

SHAFT, Rocker

$193.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0480

Simplicity 2118053SM

PIN. Round Head, .375 X 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

0490

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

0500

Simplicity 1915726SM

NUT, Hex, 5/8-11
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

0520

Simplicity 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0530

Simplicity 1755554AYP

BRACKET, Upstop

$18.99

$

Usually ships in 2-12 days

0

0540

Simplicity 1755556YP

ROD & SPACER ASSEMBLY

$

$

Not available

0550

Simplicity 1960581SM

PIN, Spring

$3.99

$

Usually ships in 2-12 days

0

0560

Simplicity 1715891SM

BEARING, Thrust

$26.99

$

In Stock, only 1 left!

0

0570

Simplicity 1716998SM

WASHER

$5.49

$

Usually ships in 2-12 days

0

0580

Simplicity 1960685SM

NUT, Hex KEPS, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

0590

Simplicity 1715886SM

ADAPTER, Motor

$10.99

$

Usually ships in 2-12 days

0

0600

Simplicity 2860664SM

SCREW, Conical Washer, 1/4-20 x 7/8 Dog Point

$5.99

$

In Stock, only 2 left!

0

0610

Simplicity 1715885SM

MOTOR, Electric
(Superseded to 709509)

$439.99

$

In Stock, Qty 9

0

0620

Simplicity 1715887SM

HUB

$8.99

$

In Stock, only 2 left!

0

0630

Simplicity 1755503AYP

BRACKET, Support, EHOC

$22.99

$

Usually ships in 2-12 days

0

0640

Simplicity 1760433YP

HARNESS

$17.99

$

Usually ships in 2-12 days

0

0650

Simplicity 84003591

BOLT, Flange, 3/8-16 X 1-1/4

$3.49

$

In Stock, only 4 left!

0
