2691673-01 - Simplicity Broadmoor 48" Lawn Tractor, 25hp Transmission SERVICE PARTS - Tuff Torq K62AC (1755451) Parts Diagram

Broadmoor 48" Lawn Tractor, 25hp

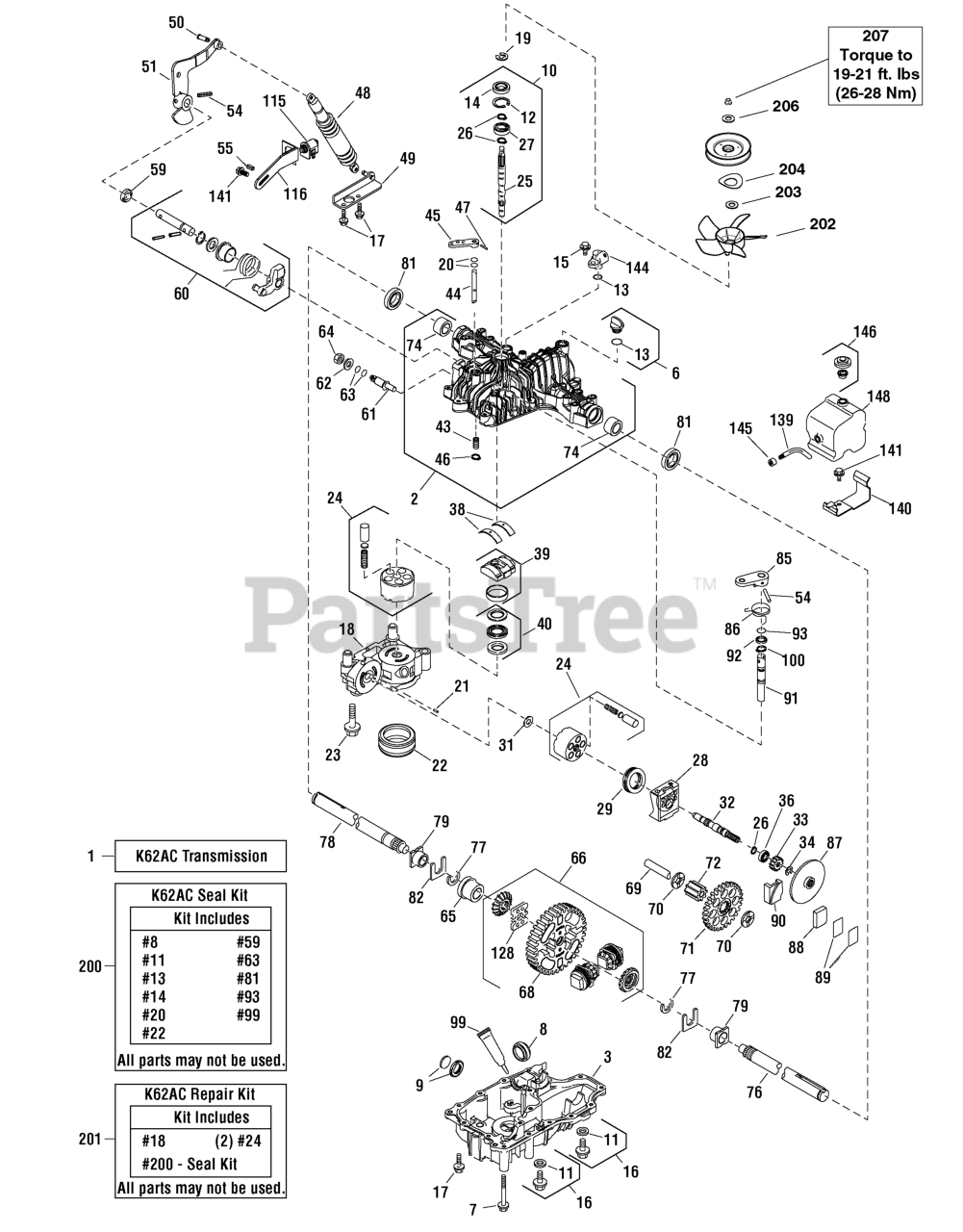

Transmission SERVICE PARTS - Tuff Torq K62AC (1755451) Parts Diagram

  • Title

1

Simplicity 84003709

TRANSMISSION, Tuff Torq, K62AC

$1460.99

$

Usually ships in 2-12 days

0

2

* KIT, Upper Case

$

$

Not available

3

* CASE, Lower

$

$

Not available

6

* KIT, Cap

$

$

Not available

7

Simplicity 1718226SM

M8 * 75 SCREW CAP

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 1720761SM

FILTER

$42.99

$

Usually ships in 2-12 days

0

9

Simplicity 1718065SM

MAGNET CMP

$14.99

$

Usually ships in 2-12 days

0

10

* KIT, PUMP / BEARING / SEAL (ALL K62)

$

$

Not available

11

Simplicity 1720796SM

WASHER SEAL 10

$

$

Not available

12

Simplicity 1708650SM

SNAP RING C 35

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 1707786SM

O-RING P18

$6.49

$

Usually ships in 2-12 days

0

14

Simplicity 7073794YP

SEAL TC 153507

$23.99

$

Usually ships in 2-12 days

0

15

Snapper 1724695SM

M8 * 20 FLANGE BOLT

$1.99

$

Usually ships in 2-12 days

0

16

*KIT, Drain Bolt

$

$

Not available

17

Simplicity 1707789SM

TAPPING SCREW 8 * 30

$6.99

$

Usually ships in 2-12 days

0

18

* CENTER CASE A

$

$

Not available

19

* E-RING, 15

$

$

Not available

20

Simplicity 1708691SM

O-RING, 1A P10A
(Superseded to 7073793YP)

$5.99

$

Usually ships in 2-12 days

0

21

Simplicity 1718070SM

PIN 3 * 9.8

$

$

Not available

22

Simplicity 1725633SM

FILTER

$95.99

$

Usually ships in 2-12 days

0

23

* BOLT, M10 x 65

$

$

Not available

24

* KIT, Cylinder Block

$

$

Not available

25

* PUMP SHAFT

$

$

Not available

26

Simplicity 1718076SM

E-RING

$4.49

$

Usually ships in 2-12 days

0

27

Simplicity 1708673SM

BEARING 6202C3

$24.99

$

Usually ships in 2-12 days

0

28

* MOTOR HOUSING

$

$

Not available

29

Simplicity 1708675SM

THRUST BEARING

$83.99

$

Usually ships in 2-12 days

0

31

Simplicity 1718084SM

WASHER 12 * 24 * 1

$4.49

$

Usually ships in 2-12 days

0

32

* SHAFT, Motor

$

$

Not available

33

Simplicity 1724752SM

MOTOR GEAR

$45.99

$

Usually ships in 2-12 days

0

34

* E-RING

$

$

Not available

36

* BEARING, 6302DUC3

$

$

Not available

38

Simplicity 1708677SM

THRUST METAL

$25.99

$

Usually ships in 2-12 days

0

39

Simplicity 1724703SM

SWASH PLATE ASSEMBLY

$64.99

$

Usually ships in 2-12 days

0

40

* KIT, Thrust Bearing

$

$

Not available

43

Simplicity 1725730SM

SPRING 25

$1.99

$

Usually ships in 2-12 days

0

44

* BYPASS SHAFT

$

$

Not available

45

Simplicity 1720418SM

BYPASS LEVER

$14.99

$

Usually ships in 2-12 days

0

46

* RING, 10

$

$

Not available

47

Simplicity 1707839SM

SPRING PIN 3.0A * 20

$3.49

$

Usually ships in 2-12 days

0

48

Simplicity 1718039SM

SHOCK ABSORBER K65

$240.99

$

In Stock, only 1 left!

0

49

* SHOCK STAY

$

$

Not available

50

Simplicity 1724705SM

PIN

$3.49

$

Usually ships in 2-12 days

0

51

* CONTROL LEVER

$

$

Not available

54

Simplicity 1960588SM

ROLL PIN 6 * 40

$4.49

$

In Stock, only 1 left!

0

55

* PIN

$

$

Not available

59

Simplicity 1718120SM

SEAL TC 162606

$10.99

$

Usually ships in 2-12 days

0

60

* KIT, Control Shaft

$

$

Not available

61

* SPRING, Torsion, Strong

$

$

Not available

62

* WASHER, 12

$

$

Not available

63

Simplicity 1707879SM

O-RING 1A P14

$4.49

$

Usually ships in 2-12 days

0

64

* NUT, 12

$

$

Not available

65

* COLLAR 25.4

$

$

Not available

66

* KIT, Differential Gear

$

$

Not available

68

* FINAL GEAR (67T)

$

$

Not available

69

* FINAL PINION SHAFT

$

$

Not available

70

Simplicity 1724715SM

WASHER 15 * 35 * 3.2

$3.99

$

Usually ships in 2-12 days

0

71

* REDUCTION GEAR (53T)

$

$

Not available

72

Simplicity 1724717SM

FINAL PINION Gear (11T)

$109.99

$

Usually ships in 2-12 days

0

74

Simplicity 1724693SM

BUSHING 25.4

$6.99

$

Usually ships in 2-12 days

0

76

Simplicity 1724718SM

SHAFT, Axle, LH

$107.99

$

Usually ships in 2-12 days

0

77

Simplicity 1720859SM

RETAINING RING 23

$3.99

$

Usually ships in 2-12 days

0

78

* AXLE SHAFT, RH

$

$

Not available

79

Simplicity 1720860SM

BUSHING 25.4

$8.49

$

Usually ships in 2-12 days

0

81

Simplicity 1718264SM

SEAL S 25.4 * 42 * 8

$24.99

$

In Stock, Qty 6

0

82

Simplicity 1720858SM

THRUST WASHER

$12.99

$

In Stock, only 1 left!

0

85

* BRAKE LEVER

$

$

Not available

86

* BRAKE RETURN SPRING

$

$

Not available

87

* BRAKE DISC

$

$

Not available

88

Simplicity 1724724SM

BRAKE SHOE

$6.49

$

Usually ships in 2-12 days

0

89

* KIT, Shim

$

$

Not available

90

* BRAKE ACTUATOR

$

$

Not available

91

* BRAKE SHAFT

$

$

Not available

92

Simplicity 1724728SM

WASHER 16 * 23 * 1.6

$6.49

$

Usually ships in 2-12 days

0

93

Simplicity 1708690SM

O-RING 1A P12
(Superseded to 7073763YP)

$6.49

$

In Stock, only 1 left!

0

99

* SEALANT

$

$

Not available

100

* SNAP RING

$

$

Not available

115

* ROS SWITCH

$

$

Not available

116

* ROS SWITCH PLATE

$

$

Not available

128

* DIFFERENTIAL LOCK PLATE, 19 Holes

$

$

Not available

139

* PIPE

$

$

Not available

140

* TANK BRACKET

$

$

Not available

141

* SCREW, Tapping, 8 x 20

$

$

Not available

144

* FITTING

$

$

Not available

145

Simplicity 1724745SM

SEAL

$5.49

$

In Stock, only 1 left!

0

146

Simplicity 1724740SM

VENT VALVE 15

$22.99

$

Usually ships in 2-12 days

0

148

Simplicity 1724742SM

RESERVOIR TANK

$

$

Not available

200

Simplicity 1731977YP

SEAL KIT

$262.99

$

Usually ships in 2-12 days

0

201

* KIT, Repair (K62A,B,C,E,F,G,J & K)

$

$

Not available

202

Simplicity 84003870

FAN

$46.99

$

Usually ships in 2-12 days

0

203

Simplicity 84003871

WASHER, Flat

$8.99

$

Usually ships in 2-12 days

0

204

Simplicity 1761520YP

WASHER, Wave, 0.65" ID

$3.99

$

Usually ships in 2-12 days

0

205

Simplicity 1732918SM

PULLEY D

$54.99

$

In Stock, only 2 left!

0

206

Simplicity 704128

WASHER, Flat

$4.99

$

In Stock, Qty 11

0

207

Simplicity 1719968SM

NUT, Hex Flange, M10-1.5, Nylon Insert

$3.49

$

Usually ships in 2-12 days

0
