2691673-01 - Simplicity Broadmoor 48" Lawn Tractor, 25hp Transmission Group - Tuff Torq K62AC Parts Diagram

Broadmoor 48" Lawn Tractor, 25hp

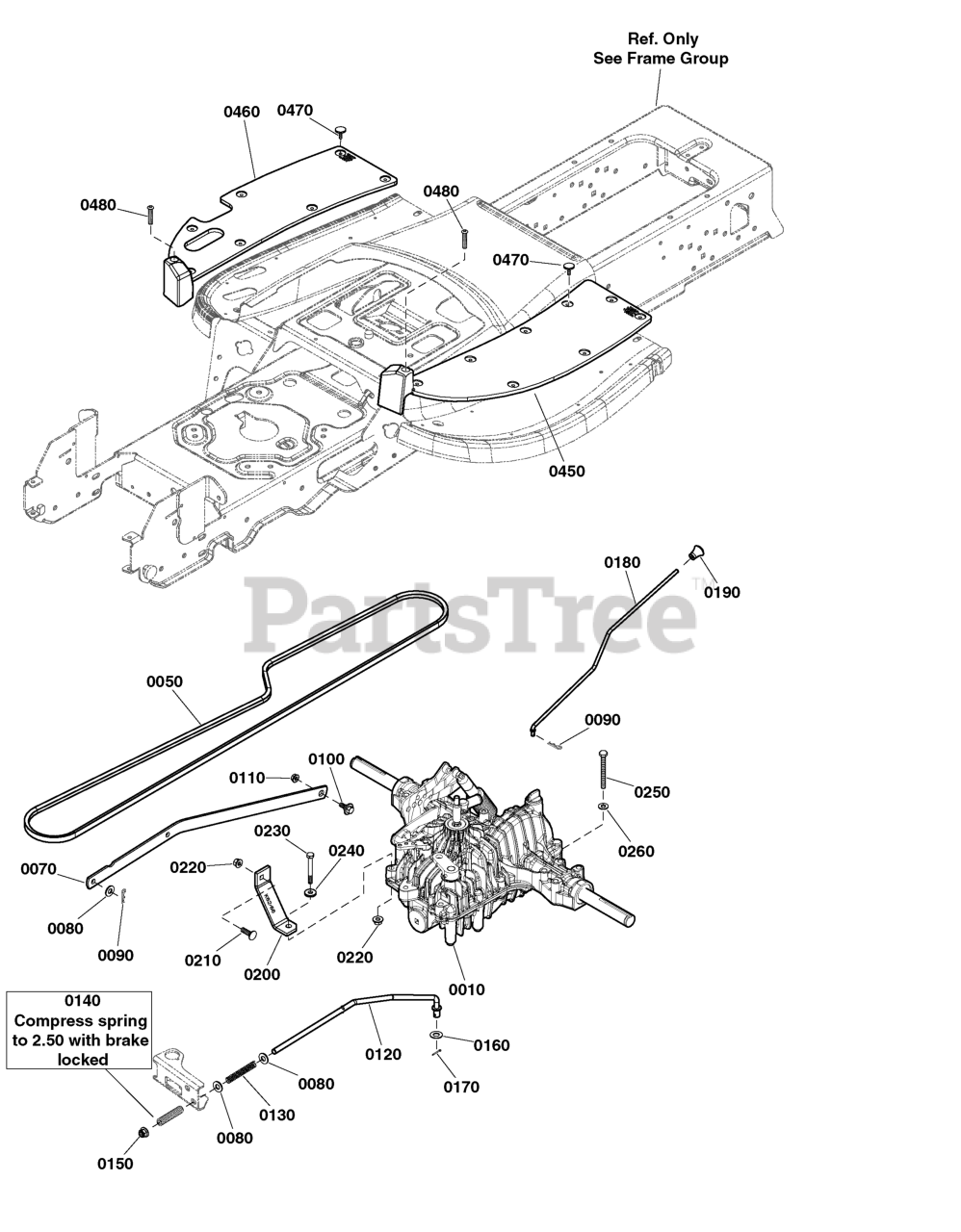

Transmission Group - Tuff Torq K62AC Parts Diagram

  • Title

0010

Simplicity 1755451YP

TRANSMISSION, Tuff Torq K62AC

$2470.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1721392SM

BELT, 94.05

$54.99

$

In Stock, Qty 20+

0

0070

Simplicity 1754368AYP

ARM, Transmission

$24.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0090

Simplicity 1722460SM

PIN, Quick, 1.19LG
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0100

Simplicity 1732426SM

BOLT, Shoulder, 5/16-18 x 1/2

$4.49

$

In Stock, only 1 left!

0

0110

Simplicity 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0120

Simplicity 1755737YP

BRAKE ROD, Transmission

$26.99

$

Usually ships in 2-12 days

0

0120

Simplicity 84003888

ROD, BRAKE

$20.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1722684SM

SPRING, Compression

$4.49

$

Usually ships in 2-12 days

0

0140

Simplicity 1729277SM

SPRING, Compression, 3-5/8"

$6.99

$

In Stock, only 1 left!

0

0150

Simplicity 1960687SM

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0160

Simplicity 1918267SM

WASHER, 7/16

$3.99

$

In Stock, only 1 left!

0

0170

Simplicity 703312

PIN, Cotter, 3/32 x 3/4

$3.99

$

In Stock, Qty 20+

0

0180

Simplicity 84003890

ROD

$23.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1723126SM

KNOB

$6.99

$

In Stock, only 2 left!

0

0200

Simplicity 1754643AYP

STRAP, Torque, Suspension

$18.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0220

Simplicity 1960686SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0230

Simplicity 1921719SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2, GR5
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

0240

Simplicity 1960141SM

WASHER, 5/16

$3.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1960590SM

CAPSCREW, Hex Head, 5/16-18 x 3, GR5
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

0260

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

0450

Simplicity 1755799YP

PAD, Foot Rest, LH

$43.99

$

Usually ships in 2-12 days

0

0460

Simplicity 1755642YP

PAD, Foot Rest, RH

$53.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1704351SM

FASTENER, Panel

$4.99

$

In Stock, only 4 left!

0

0480

Simplicity 1960676SM

SCREW, Pan Head Torx, Taptite, 1/4-20 x 1-1/4

$4.49

$

Usually ships in 2-12 days

0
