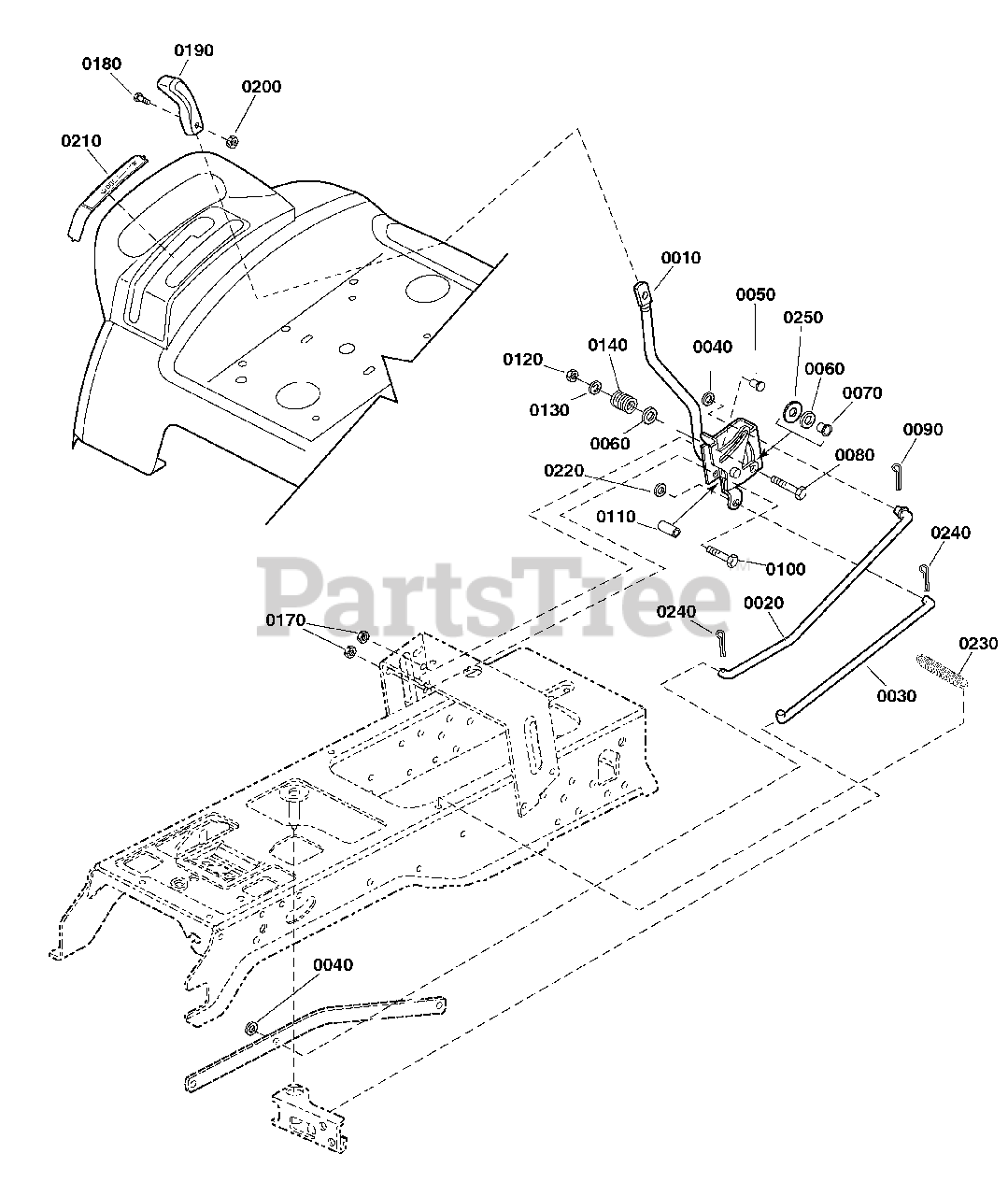

2691673-01 - Simplicity Broadmoor 48" Lawn Tractor, 25hp Cruise Control Group Parts Diagram

Broadmoor 48" Lawn Tractor, 25hp

Cruise Control Group Parts Diagram

  • Title

0010

Simplicity 1722003AYP

LEVER & BRACKET ASSEMBLY, Cruise
(Superseded to 1722003SM)

$78.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1722117SM

ROD, Cruise

$14.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1733719SM

ROD, Neutral Return, 8"

$14.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1960103SM

WASHER, 3/8" Flat- Black

$4.49

$

In Stock, Qty 7

0

0050

Simplicity 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0060

Simplicity 2826192SM

WASHER, 1/2
(Superseded to 1926192SM)

$19.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1709043SM

SPACER, w/Flange, 11/32 x 15/32 x 3/4

$8.49

$

Usually ships in 2-12 days

0

0080

Simplicity 1931342SM

BOLT, Carriage, Short Neck, 5/16-18 x 2-3/4, GR5
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

0090

Simplicity 703312

PIN, Cotter, 3/32 X 3/4

$3.99

$

In Stock, Qty 20+

0

0100

Simplicity 1960273SM

BOLT, Carriage, Short Neck, 5/16-18 x 2-1/4, GR5
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

0110

Simplicity 1722080SM

SPACER, 11/32 x 5/8 x 1-13/32

$15.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1919438SM

NUT, Hex Lock, Nylon Insert, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0130

Simplicity 1919381SM

WASHER, Flat, .34 ID x 1" OD
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

0140

Simplicity 1677746SM

SPRING, Compression (Later models only)

$7.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1960636SM

NUT, Hex, 5/16-18

$4.99

$

In Stock, only 1 left!

0

0180

Simplicity 1960666SM

SCREW, Torque Head Plus Socket Head, 1/4-20 x 7/8

$4.49

$

In Stock, only 1 left!

0

0190

Simplicity 1722303SM

HANDLE, Cruise 3/8 x 7/8 Slot

$13.99

$

In Stock, only 1 left!

0

0200

Simplicity 1920397SM

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0210

Simplicity 1722314SM

COVER, w/Cruise Icon

$8.99

$

In Stock, only 1 left!

0

0220

Simplicity 1919326SM

WASHER, 5/16, .34 ID x 3/4 OD x .06 THK

$4.49

$

In Stock, Qty 6

0

0230

Simplicity 703144

SPRING, Extension

$5.99

$

In Stock, Qty 6

0

0240

Simplicity 1722460SM

PIN, Hair
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0250

Simplicity 1705928SM

DISC., Friction

$6.99

$

Usually ships in 2-12 days

0
