2691670-01 - Simplicity Broadmoor 44" Lawn Tractor, 23hp Steering Group - Manual Parts Diagram

Broadmoor 44" Lawn Tractor, 23hp

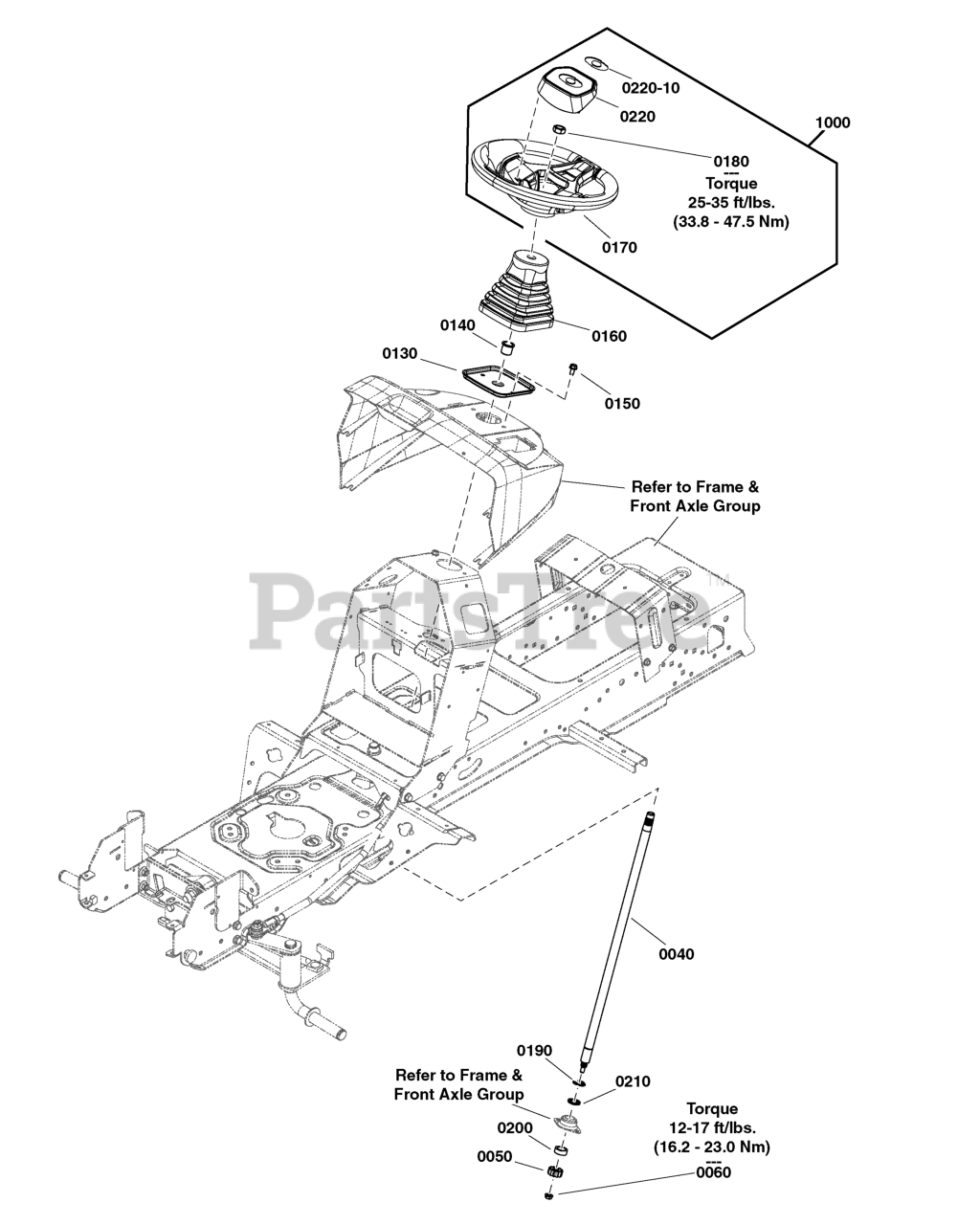

Steering Group - Manual Parts Diagram

  • Title

0040

Simplicity 84003732

SHAFT

$40.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1761013YP

GEAR, Pinion

$6.99

$

In Stock, Qty 20+

0

0060

Simplicity 704067

NUT, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0130

Simplicity 1754945AYP

PLATE, Steering Mount

$13.99

$

Usually ships in 2-12 days

0

0140

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

0150

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0160

Simplicity 1755550YP

BELLOWS, Steering Cover

$28.99

$

Usually ships in 2-12 days

0

0170

STEERING WHEEL

Note: ( Refer to Note: * )

$

$

Not available

0180

Simplicity 1960576SM

NUT, Hex Lock, ESNA Light, 5/8-18

$5.99

$

In Stock, Qty 9

0

0190

Simplicity 1611710SM

RING, Klipring, For 3/4 Dia. Shaft

$4.49

$

In Stock, Qty 20+

0

0200

Simplicity 1722461SM

SPACER, 3/4 x 1-1/16 x 3/8, Powder Metal

$26.99

$

In Stock, Qty 14

0

0210

Simplicity 706388

SPACER, .766 x 1.06 x 1/8

$7.99

$

Usually ships in 2-12 days

0

0220

Simplicity 84003162

CAP, Steering Wheel, Simplicity

$10.99

$

In Stock, only 1 left!

0

0220-10

Simplicity 1755843YP

DECAL, Logo, Steering Wheel

$15.99

$

In Stock, only 1 left!

0

1000

Simplicity 84001122

KIT, Steering Wheel, Simplicity

Note: ( Incl. Ref. Nos. 0170, 0180, 0220 & 0220-10 )

$82.99

$

Usually ships in 2-12 days

0
