2691670-01 - Simplicity Broadmoor 44" Lawn Tractor, 23hp 44" (112cm) Mower Deck - Height Adjust & Roller Group Parts Diagram

Broadmoor 44" Lawn Tractor, 23hp

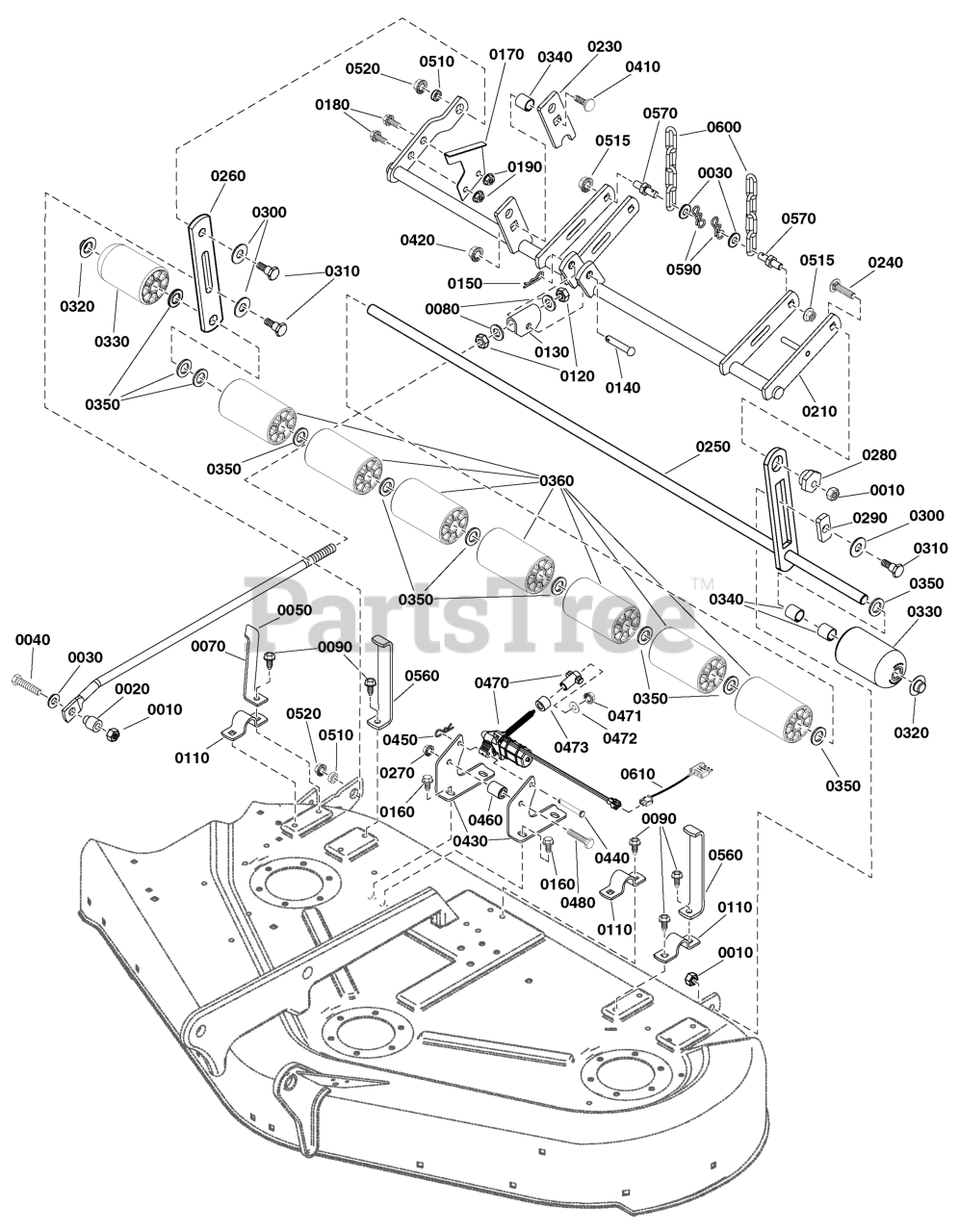

44" (112cm) Mower Deck - Height Adjust & Roller Group Parts Diagram

  • Title

0010

Simplicity 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 7

0

0020

Simplicity 1706644SM

SPACER, 3/8 x 3/4 x 15/16

$8.49

$

In Stock, only 3 left!

0

0030

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0040

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 13

0

0050

Simplicity 1704093SM

ROD, Adjustment

$47.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1756133AYP

INDICATOR, HOC

$20.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0090

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0110

Simplicity 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

In Stock, Qty 19

0

0130

Simplicity 1704081ASM

TRUNNION

$7.99

$

Usually ships in 2-12 days

0

0140

Simplicity 2118053SM

PIN, Round Head, 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

0150

Simplicity 1960074SM

CLIP, Hair Pin, 1-5/8"
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0160

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0160

Simplicity 1930601SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0170

Simplicity 1756350AYP

BRACKET, Height Of Cut

$14.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1930591SM

SCREW, Hex Flange, Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

0190

Simplicity 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0210

Simplicity 1756039AYP

ROCKER SHAFT ASSEMBLY, Electric HOC

$146.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1733386ASM

ARM, Mower, Rear
(Superseded to 1733776AYP)

$14.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 4 left!

0

0250

Simplicity 1716159ASM

SHAFT ASSEMBLY, Roller
(Superseded to 1685443SM)

$137.99

$

In Stock, only 1 left!

0

0260

Simplicity 1704074ASM

BAR, Roller

$17.99

$

In Stock, only 1 left!

0

0270

Simplicity 1927557SM

NUT, Hex Flange, Whiz Lock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1704082SM

NUT, Hex Adjusting, 11/16

$5.49

$

In Stock, Qty 15

0

0290

Simplicity 1677507SM

SLIDE, .803 x 1.7

$6.99

$

In Stock, only 3 left!

0

0300

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

0310

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34, 1/2 Shoulder

$6.99

$

In Stock, Qty 20+

0

0320

Simplicity 1960520SM

NUT, Push, 5/8
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

0330

Simplicity 1722036SM

ROLLER, Rounded, 4.1 LG, 650 ID, 2.50 OD Rounded End

$7.99

$

In Stock, Qty 20+

0

0340

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

0350

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

0360

Simplicity 1668513SM

ROLLER, .652 ID, 2.50 OD, 4.10 LG

$10.99

$

In Stock, Qty 20+

0

0410

Simplicity 1960706SM

BOLT, Carriage, Short Neck, 1/2-13 x 2

$5.99

$

Usually ships in 2-12 days

0

0420

Simplicity 1960689SM

NUT, Hex, Toplock Flange,1/2-13

$3.49

$

Usually ships in 2-12 days

0

0430

Simplicity 1756489AYP

BRACKET, Motor

$10.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1739295YP

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0450

Simplicity 1960221SM

CLIP, Hair Pin, 1-5/16"
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

0460

Simplicity 1733068SM

SPACER, 0.39 x 3/4 x 0.965

$13.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1753528YP

MOTOR, Deck Lift
(Superseded to 1761788YP)

$107.99

$

In Stock, Qty 15

0

0471

Simplicity 1960757SM

NUT, Hex, 1/4-20, LH

$5.49

$

Usually ships in 2-12 days

0

0472

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0473

Simplicity 5045178SM

SPACER, .52 X 1.00 X .75, CZ

$7.49

$

In Stock, Qty 6

0

0480

Simplicity 1922127SM

SCREW, Hex Head Cap, 5/16-18 x 1 3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0510

Simplicity 1663752SM

SPACER, 25/64 x 5/8 x 3/16

$5.99

$

In Stock, only 2 left!

0

0515

Simplicity 1960687SM

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0520

Simplicity 1960339SM

NUT, Hex Flange, MAC, 3/8-16

$

$

Not available

0560

Simplicity 1733226ASM

UPSTOP

$20.99

$

Usually ships in 2-12 days

0

0570

Simplicity 703816

PIN, Threaded Shoulder

$12.99

$

Usually ships in 2-12 days

0

0590

Simplicity 1722320SM

PIN, Cotter Locking

$3.49

$

In Stock, Qty 20+

0

0600

Simplicity 1708088ASM

CHAIN, Lift, 4 Link

$11.99

$

Usually ships in 2-12 days

0

0610

Simplicity 84004716

HARNESS, Jumper

$13.99

$

Usually ships in 2-12 days

0
