2691668-02 - Simplicity Regent S 44" Lawn Tractor, 25hp Briggs & Stratton Seat Group Parts Diagram

Regent S 44" Lawn Tractor, 25hp Briggs & Stratton

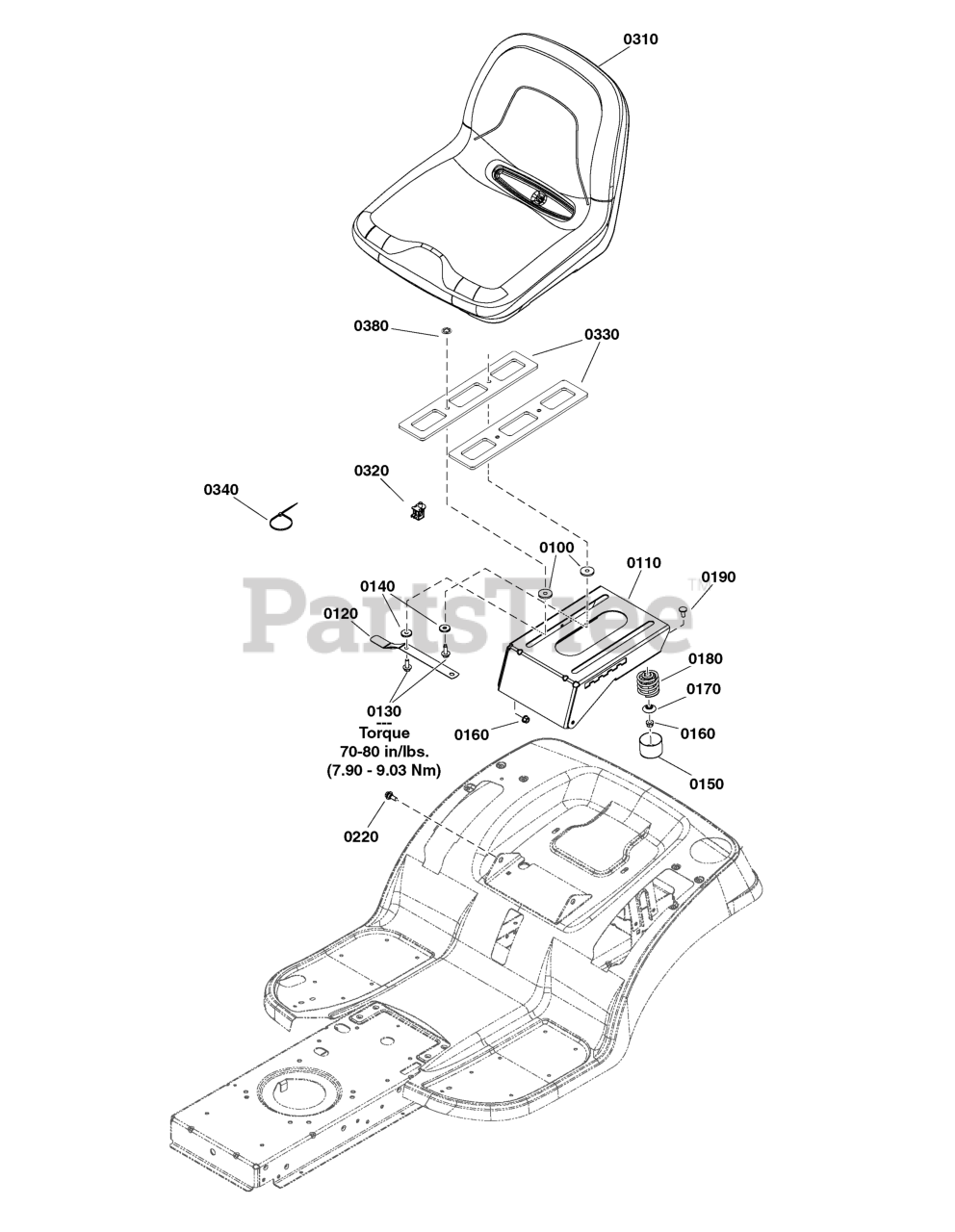

Seat Group Parts Diagram

  • Title

0100

Simplicity 1731300SM

SPACER, 5/16 ID x 1-1/4 OD x 5/16"

$5.49

$

Usually ships in 2-12 days

0

0110

Simplicity 1755767BMYP

SUPPORT, Seat

$152.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1727268BMYP

LATCH, Seat

$9.49

$

Usually ships in 2-12 days

0

0130

Simplicity 1933689SM

SCREW, 5/16-18 x 1-1/2, Hex Flange, Whiz Lock

$4.49

$

Usually ships in 2-12 days

0

0140

Simplicity 703298

WASHER, 5/16

$4.49

$

In Stock, only 2 left!

0

0150

Simplicity 1704724SM

COVER, Spring, 1-1/2"

$7.99

$

In Stock, only 2 left!

0

0160

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0170

Simplicity 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

In Stock, only 1 left!

0

0180

Simplicity 1704728SM

SPRING, Compression, 2"

$9.99

$

In Stock, only 2 left!

0

0190

Simplicity 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

0220

Simplicity 703851

BOLT, Shoulder, 5/16-18 x 1 1/8

$5.49

$

In Stock, only 1 left!

0

0310

Simplicity 84003946

SEAT, 15"

$378.99

$

Usually ships in 2-12 days

0

0320

Simplicity 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

In Stock, Qty 20+

0

0330

Simplicity 84003652

SPACER, Plate

$34.99

$

Usually ships in 2-12 days

0

0340

Simplicity 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0380

Simplicity 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0
