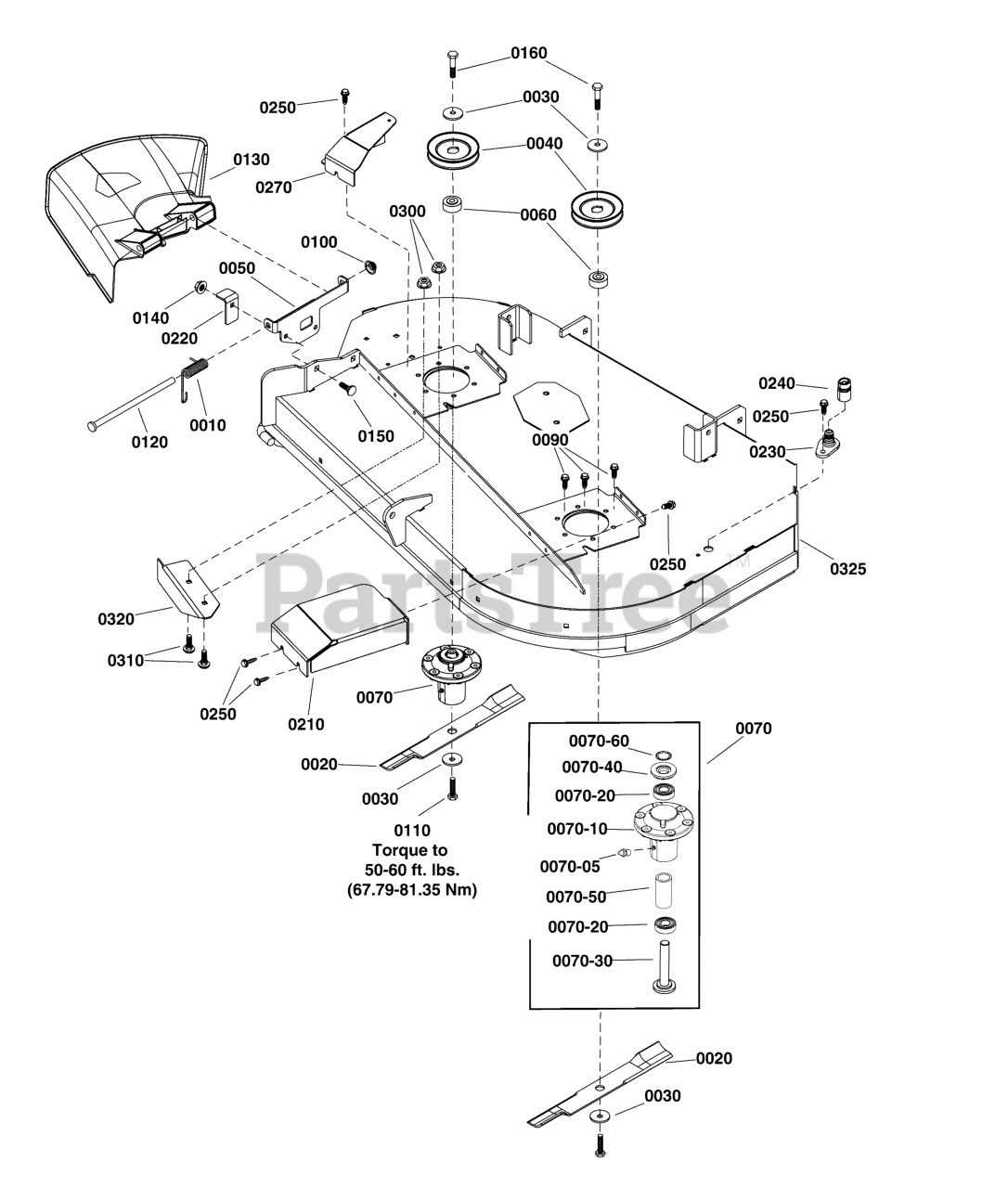

2691657-00 - Simplicity Courier 42" Zero-Turn Mower, 23hp Briggs & Stratton 42" (107cm) Mower Deck - Housing, Arbor & Blade Group Parts Diagram

Courier 42" Zero-Turn Mower, 23hp Briggs & Stratton

42" (107cm) Mower Deck - Housing, Arbor & Blade Group Parts Diagram

  • Title

0010

Simplicity 7035813SM

SPRING, Torsion

$24.99

$

In Stock, only 1 left!

0

0020

Simplicity 1758878BMYP

BLADE, 21.31" Long

$28.99

$

In Stock, Qty 20+

0

0030

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0040

Simplicity 1737835YP

PULLEY, 4.50

$20.99

$

In Stock, only 1 left!

0

0050

Simplicity 1758982BMYP

BRACKET, Deflector
(Superseded to 1758982AYP)

$42.99

$

In Stock, only 1 left!

0

0060

Simplicity 1737457YP

SPACER, Pulley

$10.99

$

In Stock, only 1 left!

0

0070

Simplicity 84003173

ARBOR ASSEMBLY

$96.99

$

In Stock, Qty 20+

0

0070-05

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0070-10

Simplicity 84003653

HOUSING, w/Lube Fittting

$81.99

$

Usually ships in 2-12 days

0

0070-20

Simplicity 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0070-30

Simplicity 84003170

SHAFT, Spindle

$29.99

$

In Stock, only 2 left!

0

0070-40

Simplicity 84003166

SHIELD, Arbor

$6.99

$

In Stock, only 3 left!

0

0070-50

Simplicity 84003167

SPACER, Bearing

$6.99

$

In Stock, Qty 7

0

0070-60

Simplicity 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0090

Simplicity 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0100

Simplicity 703179

PUSHNUT, 1/2

$3.49

$

In Stock, Qty 20+

0

0110

Simplicity 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 16

0

0120

Simplicity 7104640YP

ROD, Deflector

$28.99

$

In Stock, only 1 left!

0

0130

Simplicity 7104733YP

DEFLECTOR

$87.99

$

In Stock, Qty 20+

0

0140

Simplicity 703793

NUT, Lock, Flange, 3/8-16

$4.49

$

In Stock, Qty 5

0

0150

Simplicity 703815

BOLT, Carriage, 3/8-16 X 1

$4.49

$

In Stock, only 4 left!

0

0160

Simplicity 1921212SM

CAPSCREW, Hex Head, 7/16-14 X 1 1/2

$

$

Not available

0210

Simplicity 1758992BMYP

COVER, Pulley, LH

$63.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1758593BMYP

PROP, Deflector

$18.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1756247YP

ADAPTER, Washout Port

$6.49

$

Usually ships in 2-12 days

0

0240

Simplicity 1756246YP

CONNECTOR, Washout Port

$15.99

$

Usually ships in 2-12 days

0

0250

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0270

Simplicity 1759616AYP

COVER, Pulley, RH

$30.99

$

Usually ships in 2-12 days

0

0300

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0310

Simplicity 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

0320

Simplicity 1758581BMYP

BAFFLE, Pinchoff

$18.99

$

In Stock, only 2 left!

0

0325

Simplicity 1687840YP

Housing, Mower Deck, 42" w/Decals

$1951.99

$

Usually ships in 2-12 days

0
