2691592-00 - Murray 16"/40cm Walk-Behind Reel Mower (2020) Reel Mower Group Parts Diagram

16"/40cm Walk-Behind Reel Mower

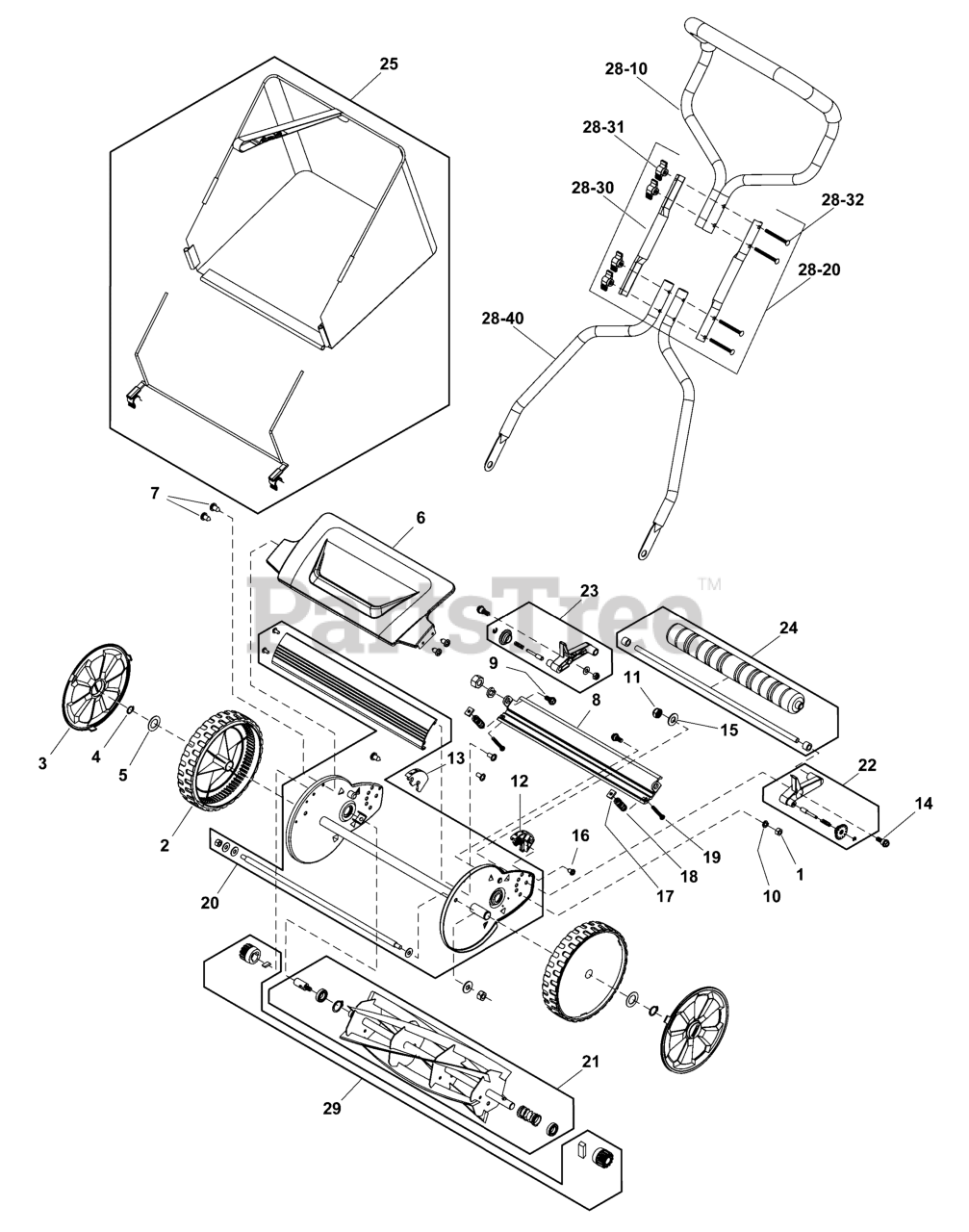

Reel Mower Group Parts Diagram

  • Title

1

NUT M8, Nylock

Note: Not a serviceable part

$

$

Not available

2

Murray RE10364A

WHEEL

$

$

Currently unavailable

3

Murray RE10417L

HUBCAP

$

$

Currently unavailable

8

BLADE, Fixed

Note: Not a serviceable part

$

$

Not available

9

BOLT, 24x4.5, M8

Note: Not a serviceable part

$

$

Not available

10

WASHER, Spring

Note: Not a serviceable part

$

$

Not available

11

NUT, Hex, Nyloc, M8

Note: Not a serviceable part

$

$

Not available

12

INDICATOR, Cutting Height, Left

Note: Not a serviceable part

$

$

Not available

13

INDICATOR, Cutting Height, Right

Note: Not a serviceable part

$

$

Not available

14

BOLT, 24x8, M8

Note: Not a serviceable part

$

$

Not available

15

WASHER, 17x8.2x1.2

Note: Not a serviceable part

$

$

Not available

16

SCREW, ST4.2x8

Note: Not a serviceable part

$

$

Not available

17

NUT, 4x13x17, M6

Note: Not a serviceable part

$

$

Not available

18

SPRING

Note: Not a serviceable part

$

$

Not available

19

BOLT, M6x50

Note: Not a serviceable part

$

$

Not available

20

CHASSIS

Note: Not a serviceable part

$

$

Not available

21

BLADE, Reel

Note: Not a serviceable part

$

$

Not available

22

BRACKET, Rear Roller, Left

Note: Not a serviceable part

$

$

Not available

23

BRACKET, Rear Roller, Right

Note: Not a serviceable part

$

$

Not available

24

ROLLER, Rear

Note: Not a serviceable part

$

$

Not available

25

Murray RE10373B

GRASS CATCHER ASSEMBLY, Fabric, Murray

$

$

Currently unavailable

28-10

Murray RE10359A

HANDLE, Top

$

$

Currently unavailable

28-20

Murray PA50669B

KIT, Knobs & Fasteners, Green

$

$

Currently unavailable

28-30

Murray RE10362A

HANDLE, Middle

$

$

Currently unavailable

28-31

KNOB

Note: Not a serviceable part

$

$

Not available

28-32

BOLT, M6x65

Note: Not a serviceable part

$

$

Not available

28-40

Murray RE10363A

HANDLE, Lower

$

$

Currently unavailable

29

Murray RE10414A

GEAR KIT

Note: Left and right include pins

$

$

Currently unavailable
