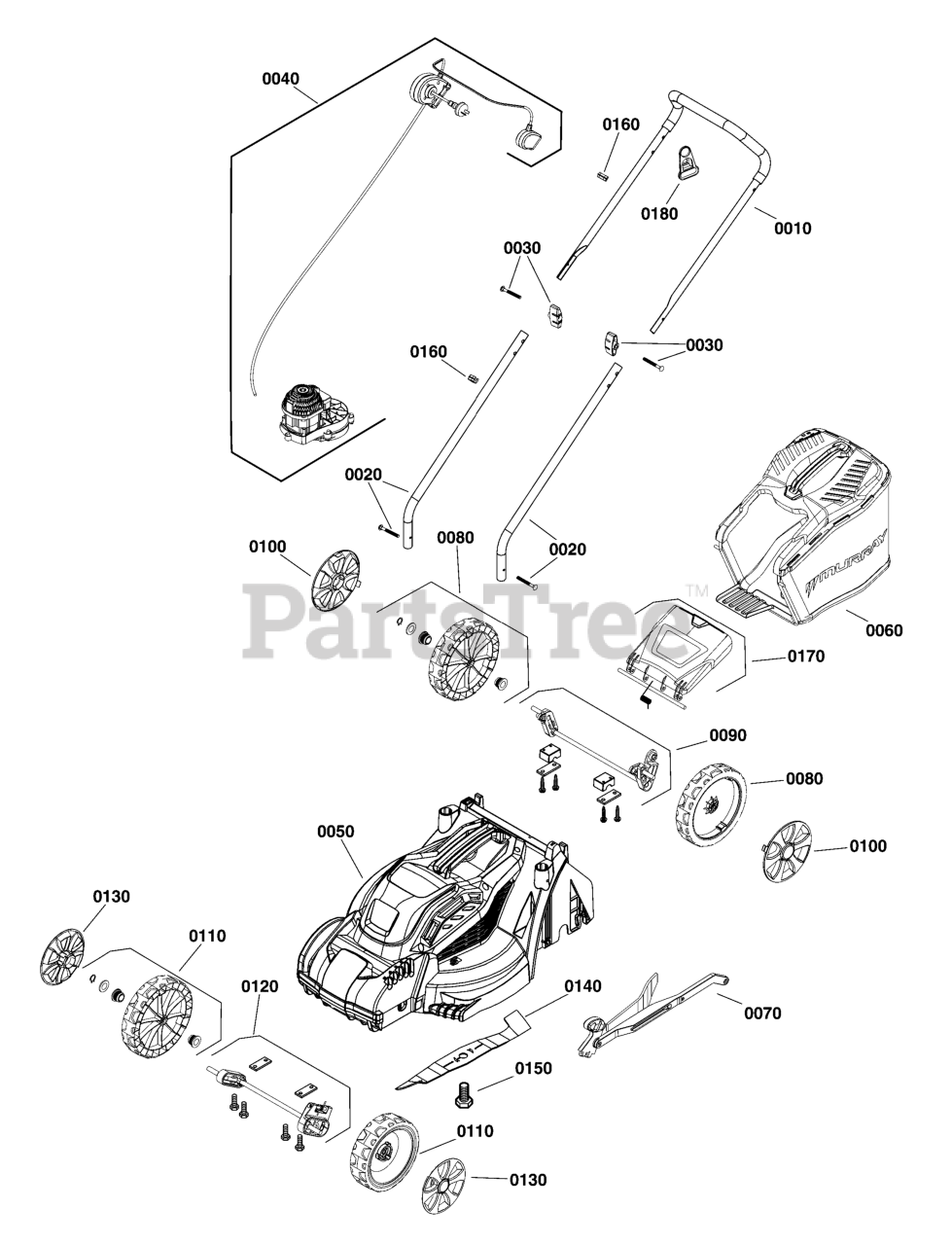

2691585-00 - Murray 32cm Corded Electric Walk-Behind Mower (2019) Walk Mower Parts Diagram

32cm Corded Electric Walk-Behind Mower

Walk Mower Parts Diagram

  • Title
0010

Murray EL10450A

HANDLE UPPER ASSEMBLY

$

$

Currently unavailable

0020

Murray EL10502A

HANDLE LOWER ASSEMBLY (WITH SCREW)

$

$

Currently unavailable

0030

Murray EL10539A

LOCK NUT, UPPER HANDLE ASSEMBLY

$

$

Currently unavailable

0040

MOTOR AND CONTROL ASSEMBLY

Note: ( Not a serviceable part )

$

$

Not available

0050

Murray EL10542A

DECK & MOTOR COVER ASSEMBLY

$

$

Currently unavailable

0060

Murray EL10543A

GRASS CATCHER ASSEMBLY

$

$

Currently unavailable

0070

Murray EL10544A

HEIGHT ADJUSTMENT ASSEMBLY

$

$

Currently unavailable

0080

Murray EL10453A

REAR WHEEL ASSEMBLY

$

$

Currently unavailable

0090

Murray EL10452A

REAR AXLE ASSEMBLY

$

$

Currently unavailable

0100

Murray EL10545A

REAR HUB CAP

$

$

Currently unavailable

0110

Murray EL10455A

FRONT WHEEL ASSEMBLY

$

$

Currently unavailable

0120

Murray EL10454A

FRONT AXLE ASSEMBLY

$

$

Currently unavailable

0130

Murray EL10546A

FRONT HUB CAP

$

$

Currently unavailable

0140

Murray EL10530A

BLADE BAR

$

$

Currently unavailable

0150

Murray EL10531A

BOLT BLADE

$

$

Currently unavailable

0160

Murray EL10457A

CABLE CLIP

$

$

Currently unavailable

0170

Murray EL10451A

REAR FLAP ASSEMBLY

$

$

Currently unavailable

0180

Murray EL10446A

CABLE RETAIN HANG

$

$
