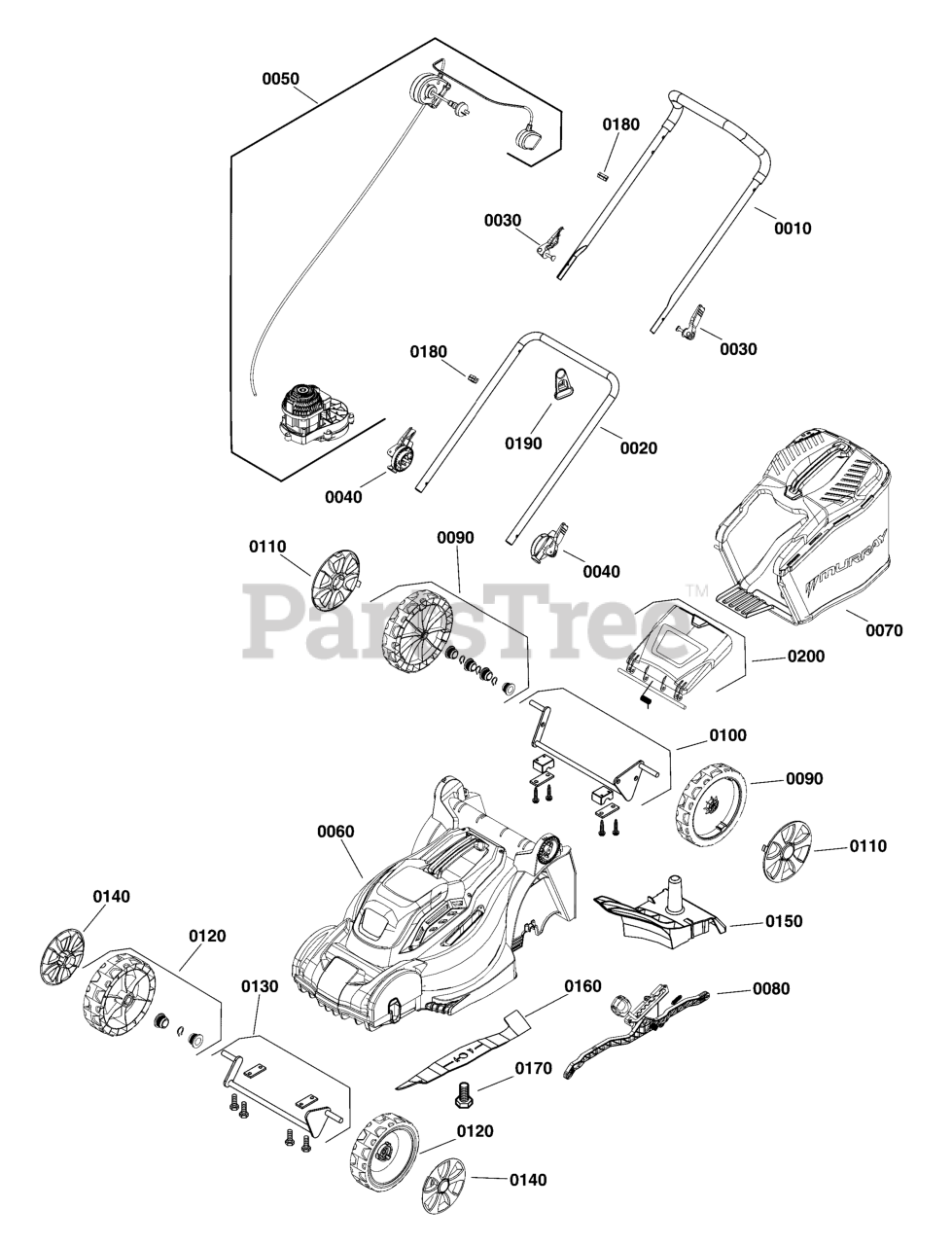

2691584-00 - Murray 37cm Corded Electric Walk-Behind Mower (2019) Walk Mower Parts Diagram

37cm Corded Electric Walk-Behind Mower

Walk Mower Parts Diagram

  • Title
0010

Murray EL10338A

UPPER HANDLE ASSEMBLY

$

$

Currently unavailable

0020

Murray EL10345A

LOWER HANDLE ASSEMBLY

$

$

Currently unavailable

0030

Murray EL10533A

UPPER CAM LOCK ASSEMBLY

$

$

Currently unavailable

0040

Murray EL10534A

LOWER CAM LOCK ASSEMBLY

$

$

Currently unavailable

0050

MOTOR AND CONTROL ASSEMBLY

Note: ( Not a serviceable part )

$

$

Not available

0060

Murray EL10536A

DECK & MOTOR COVER ASSEMBLY

$

$

Currently unavailable

0070

Murray EL10537A

GRASS CATCHER ASSEMBLY

$

$

Currently unavailable

0080

Murray EL10538A

HEIGHT ADJUSTMENT ASSEMBLY

$

$

Currently unavailable

0090

Murray EL10401A

REAR WHEEL ASSEMBLY

$

$

Currently unavailable

0100

Murray EL10407A

REAR AXLE ASSEMBLY

$

$

Currently unavailable

0110

Murray EL10517A

HUB CAP, Rear

$

$

Currently unavailable

0120

Murray EL10427A

FRONT WHEEL ASSEMBLY

$

$

Currently unavailable

0130

Murray EL10433A

FRONT AXLE ASSEMBLY

$

$

Currently unavailable

0140

Murray EL10522A

HUB CAP, Front

$

$

Currently unavailable

0150

Murray EL10337A

MULCH PLUG

$

$

Currently unavailable

0160

Murray EL10398A

BLADE BAR

$

$

Currently unavailable

0170

Murray EL10400A

BOLT BLADE

$

$

Currently unavailable

0180

Murray EL10445A

CABLE CLIP

$

$

Currently unavailable

0190

Murray EL10446A

CABLE RETAIN HANG

$

$

Currently unavailable

0200

Murray EL10347A

REAR FLAP ASSEMBLY

$

$

Currently unavailable
