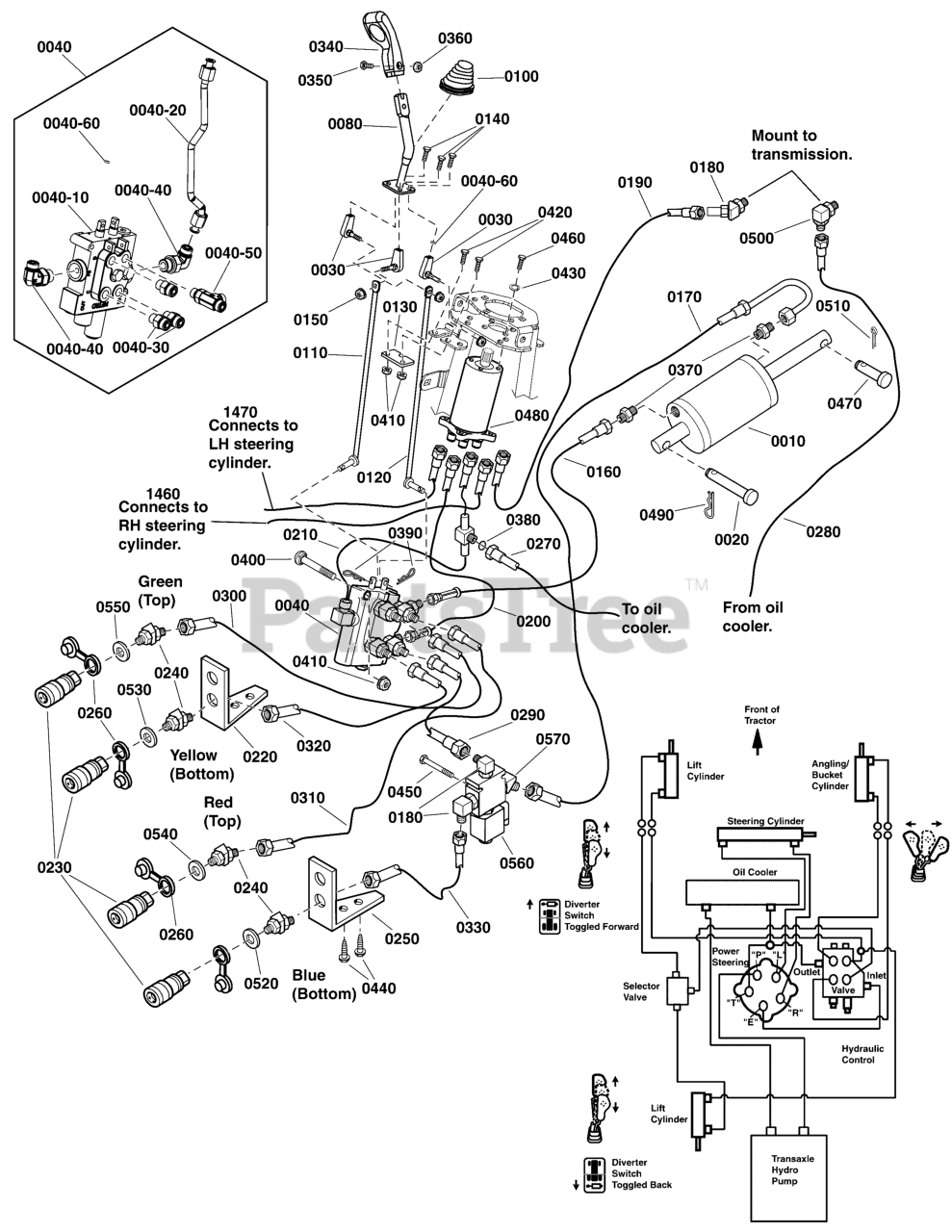

2691522-02 - Simplicity Legacy XL Garden Tractor, 31hp Briggs & Stratton Hydraulic Group Parts Diagram

Legacy XL Garden Tractor, 31hp Briggs & Stratton

Hydraulic Group Parts Diagram

  • Title

0010

Simplicity 1726442SM

CYLINDER ASSEMBLY, Hydraulic

$615.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1725223SM

PIN, Clevis

$6.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1725117SM

JOINT, Ball, 1/4-28 Int

$24.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1688015

KIT, CONTROL VALVE, HYDRAULIC

Note: (Incl. Ref. Nos. 0040-10, 0040-20, 0040-30, 0040-40, 0040-50, 0040-60)

$

$

Not available

0040-10

Simplicity 84003657

VALVE ASSEMBLY, Control 2 Spool

$706.99

$

Usually ships in 2-12 days

0

0040-20

Simplicity 84003660

TUBE, Assembly Hydraulic

$53.99

$

Usually ships in 2-12 days

0

0040-30

Simplicity 1722123SM

FITTING, Straight, 9/16-18, 11/16-16

$9.99

$

Usually ships in 2-12 days

0

0040-40

Simplicity 84003659

FITTING, Tube Elbow

$35.99

$

Usually ships in 2-12 days

0

0040-50

Simplicity 84003658

FITTING, Tube Tee

$41.99

$

Usually ships in 2-12 days

0

0040-60

Simplicity 703124

SPACER, 1/4 x .118, G5

$3.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1757503COYP

LEVER ASSEMBLY, Joystick

$101.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1725120SM

BOOT, Hydraulic Control

$

$

Not available

0110

Simplicity 1724878SM

ROD & PIN ASSEMBLY, Control

$34.99

$

In Stock, only 1 left!

0

0120

Simplicity 1724434SM

ROD & PIN ASSEMBLY, Control

$26.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1724881SM

PAD, Hydraulic

$4.49

$

Usually ships in 2-12 days

0

0140

Simplicity 2860696SM

SCREW, Hex SEMS Square Washer, 1/4-28 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0150

Simplicity 2860697SM

NUT, Hex, Spiralock Flange 1/4-28

$4.49

$

In Stock, only 1 left!

0

0160

Simplicity 1725110SM

HOSE ASSEMBLY, Hydraulic Rubber, 13.7 LG, 30 Degrees

$

$

Not available

0170

Simplicity 1725111SM

HOSE ASSEMBLY, Hydraulic Rubber, 180 Degrees

$97.99

$

In Stock, only 2 left!

0

0180

Simplicity 1729591SM

FITTING, Tube Elbow, 9/16-18 11/16-16, 90 Degrees

$23.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1729590SM

TUBE, Assembly Hydraulic

$119.99

$

In Stock, only 1 left!

0

0200

Simplicity 84003660

TUBE, Assembly Hydraulic

$53.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1725690SM

TUBE, Hydraulic

$91.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1725325ASM

SUPPORT, Quick Disc R.H.

$25.99

$

Usually ships in 2-12 days

0

0230

Simplicity 2173358SM

QUICK CONNECTOR, Female Nose Piece Assembly

$74.99

$

In Stock, only 1 left!

0

0240

Simplicity 1725351SM

FITTING, Tube Elbow

$12.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1725323ASM

SUPPORT, Quick Disc L.H.

$26.99

$

Usually ships in 2-12 days

0

0260

Simplicity 2173360SM

Plastic Plug (Mfg. Nos. 953 & 954)

$16.99

$

In Stock, Qty 6

0

0270

Simplicity 1725604SM

HOSE ASSEMBLY, Hydraulic Rubber, 29 LG, 1 Swivel

$78.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1725691SM

HOSE, Hydraulic

$97.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1725688SM

TUBE, Hydraulic

$40.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1725686SM

TUBE, Hydraulic

$64.99

$

Usually ships in 2-12 days

0

0310

Simplicity 1725684SM

TUBE, Hydraulic

$54.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1725687SM

TUBE, Hydraulic

$49.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1725685SM

TUBE, Hydraulic

$56.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1722303SM

HANDLE, Cruise 3/8 x 7/8 Slot

$13.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1960666SM

SCREW, Torque Head Plus Socket Head, 1/4-20 x 7/8

$4.49

$

In Stock, only 1 left!

0

0360

Simplicity 703232

NUT, Hex Lock, 1/4-20, ESNA

$4.49

$

In Stock, Qty 20+

0

0370

Simplicity 2819171SM

TUBE, Fitting Mail 1/8 NPT+7/16-20 .250TU

$5.99

$

In Stock, only 2 left!

0

0380

Simplicity 1725485SM

O-RING

$2.99

$

Usually ships in 2-12 days

0

0390

Simplicity 703892

PIN, Cotter, 1/16 x3/4

$3.49

$

In Stock, only 1 left!

0

0400

Simplicity 1960700SM

CARRIAGE BOLT, 1/4-20 x 2 G5

$3.49

$

Usually ships in 2-12 days

0

0410

Simplicity 703061

NUT, 1/4-20, Keps, Conical Washer

$3.49

$

In Stock, Qty 13

0

0420

Simplicity 703925

CAPSCREW, Hex Head, 1/4-20 x 5/8, GR5

$4.49

$

In Stock, Qty 7

0

0430

Simplicity 704133

WASHER

$3.99

$

In Stock, Qty 11

0

0440

HFLCS 1/4 - 20 X .750 GR5 ZINC/CLEAR

$

$

Not available

0450

SCREW, Hex Washer Head, 1/4-20 X 1.750

$

$

Not available

0460

CAPSCREW, Hex Head, 1 X 16MM

$

$

Not available

0470

Simplicity 1729275SM

PIN, Round Head, Drilled, 1/2 x 2-1/2

$18.99

$

Usually ships in 2-12 days

0

0480

Simplicity 1725288SM

POWER STEERING UNIT

$

$

Not available

0490

Simplicity 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0

0500

Simplicity 1725655SM

FITTING, Tube Elbow 9/16-18 13/16-16, 90 Degrees

$28.99

$

Usually ships in 2-12 days

0

0510

Simplicity 703795

PIN, Cotter, 1/8 X 1.0", ZC/CL

$5.99

$

In Stock, only 1 left!

0

0520

Simplicity 1726318SM

WASHER

$5.99

$

Usually ships in 2-12 days

0

0530

Simplicity 1726319SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

0540

Simplicity 1726320SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

0550

Simplicity 1726321SM

WASHER

$3.99

$

Usually ships in 2-12 days

0

0560

Simplicity 5102930

VALVE, HYD, 2 POS, 3 WAY
(Superseded to 5102930FS)

$326.99

$

Usually ships in 2-12 days

0

0570

Snapper 1752988YP

FITTING, Hydraulic, 45 degree

$55.99

$

Usually ships in 2-12 days

0

1460

Simplicity 1725012SM

HOSE ASSEMBLY, Hydraulics, R.H.

$

$

Not available

1470

Simplicity 1724890SM

HOSE ASSEMBLY, Hydraulics, L.H.

$96.99

$

In Stock, only 1 left!

0
