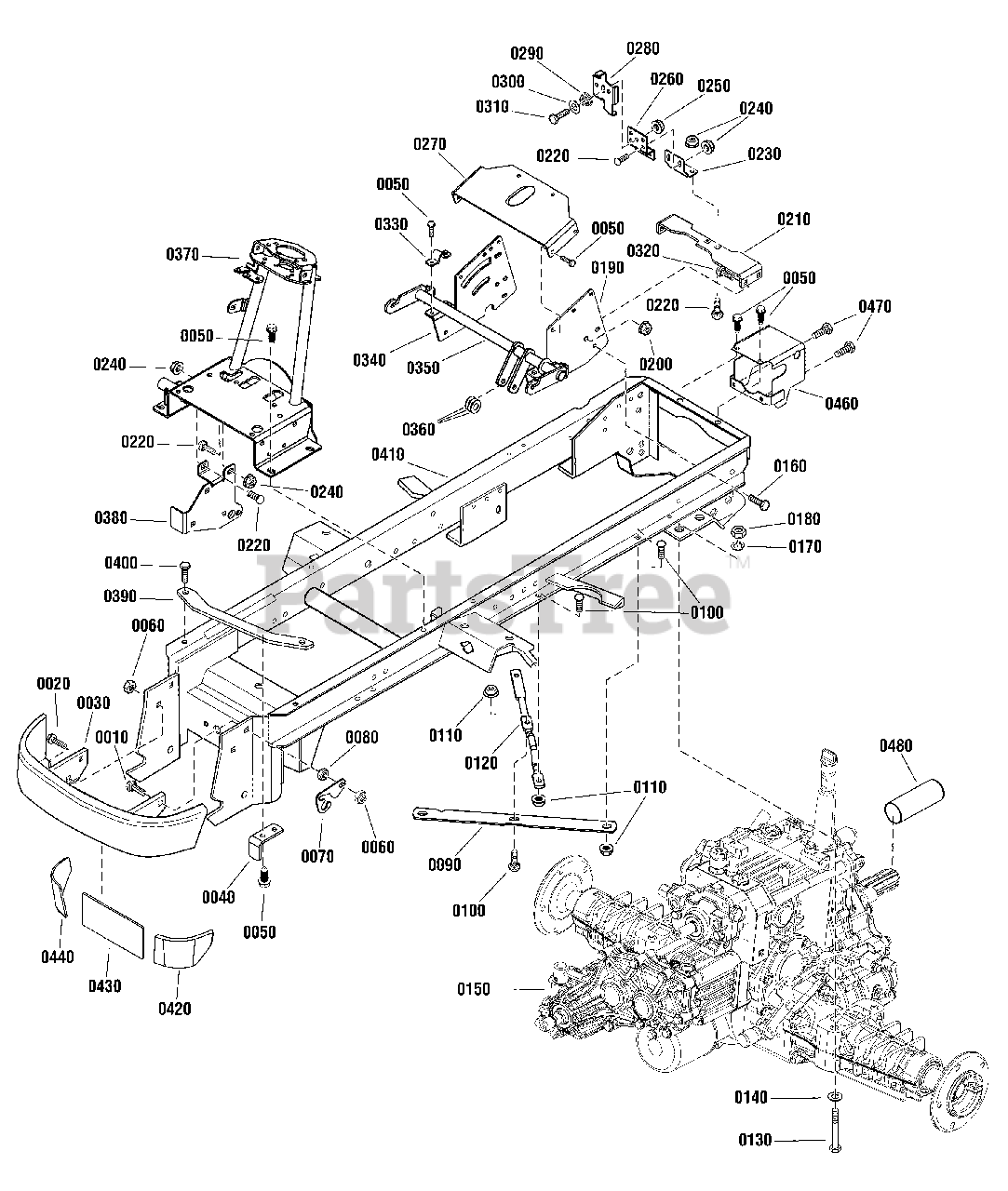

2691522-01 - Simplicity Legacy XL Garden Tractor, 31hp Briggs & Stratton Frame & Transmission Group Parts Diagram

Legacy XL Garden Tractor, 31hp Briggs & Stratton

Frame & Transmission Group Parts Diagram

  • Title

0010

Simplicity 1960706SM

CARRIAGE BOLT-RD, 1/2-13 x 2, Black

$5.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1920328SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

Usually ships in 2-12 days

0

0030

Simplicity 1725171ASM

BUMPER & BRACKETS ASSEMBLY

$237.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1725752ASM

BRACKET, Upstop

$10.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1664847SM

CAPSCREW, Hex, Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

Note: (Qty 18 with 540 PTO model)

$4.49

$

In Stock, Qty 20+

0

0060

Simplicity 1960708SM

NUT, Hex, Lock ESNA, 1/2-13
(Superseded to 703453)

$5.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1726019ASM

LOCK, Hood

$9.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1913744SM

NUT, Hex, Jam, 1/2-13, Black

$4.99

$

In Stock, Qty 20+

0

0090

Simplicity 1724936ASM

BRACE, Cross

$15.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1960268SM

CARRIAGE BOLT, 3/8-16 x 1 1/4

$4.49

$

In Stock, Qty 10

0

0110

Simplicity 1960680SM

NUT, Hex, KEPS 3/8-16

$6.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1725635SM

ROD

$29.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1960482SM

CAPSCREW, Hex Head, M12-1.25 x100MM

$6.49

$

Usually ships in 2-12 days

0

0140

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

0150

Simplicity 1752343YP

TRANSMISSION ASSEMBLY, 2WD, K92D

$9971.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1752344YP

TRANSMISSION ASSEMBLY, 4WD, K92E

$7124.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1752345YP

TRANSMISSION ASSEMBLY, 4WD W/540, K92F

$7989.99

$

Usually ships in 2-12 days

0

0160

Simplicity 704146

SCREW, Hex, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0170

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

0180

Simplicity 1960423SM

NUT, Hex Flange Center Lock, M12-1.25

$3.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1725096ASM

SUPPORT, Seat Support, LH

$27.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1960687SM

NUT, Hex, Flange ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0210

Simplicity 1724244ASM

BRACKET, Torque Strap

$25.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0230

Simplicity 1725081ASM

SUPPORT, Dump Valve

$17.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1960684SM

NUT, Hex, KEPS 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

0250

Simplicity 1960686SM

NUT, Hex, Flange ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0260

Simplicity 1725308SM

SUPPORT, Free Wheel Latch

$14.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1725094ASM

SUPPORT, Seat Deck

$31.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1724248SM

BRACKET-FREE WHEEL 10GA

$15.99

$

Usually ships in 2-12 days

0

0290

Simplicity 2153010SM

SPRING, Compresion, Conocal

$8.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1919326SM

WASHER, 5/16, Black

$4.49

$

In Stock, Qty 8

0

0310

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0320

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

Note: (Qty 3 with 540 PTO model)

$4.49

$

In Stock, only 4 left!

0

0330

Simplicity 1720147ASM

STRAP
(Superseded to 1720147BZYP)

$9.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1725095ASM

SUPPORT, Seat Support, RH

$28.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1724765ASM

SHAFT ASSEMBLY

$162.99

$

Usually ships in 2-12 days

0

0360

Simplicity 703853

WASHER, .516 x 1

Note: (Used on non 3-pont equiped models)

$4.99

$

In Stock, Qty 20+

0

0370

Simplicity 1724108ASM

TOWER ASSEMBLY

$438.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1724838ASM

SUPPORT, Control Valve

$24.99

$

Usually ships in 2-12 days

0

0390

Simplicity 1725242ASM

BRACE

$

$

Not available

0400

Simplicity 703950

SCREW, Washer, 3/8-16 3/4

$5.49

$

In Stock, only 1 left!

0

0410

* FRAME ASSEMBLY

$

$

Not available

0420

Simplicity 1759255YP

INSULATION, LH

$15.99

$

Usually ships in 2-12 days

0

0430

Simplicity 1759256YP

INSULATION, Center

$25.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1759257YP

INSULATION, RH

$15.99

$

Usually ships in 2-12 days

0

0460

Simplicity 1724817ASM

SHIELD, 540 PTO

Note: (Used with 540 PTO model)

$131.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1960677SM

CAPSCREW, Hex Head, M12-1.75 x 25MM

Note: (Used with 540 PTO model)

$4.99

$

Usually ships in 2-12 days

0

0480

Simplicity 1726474SM

COVER, 540 PTO

Note: (Used with 540 PTO model)

$7.99

$

In Stock, only 1 left!

0
