2691522-00 - Simplicity Legacy XL Garden Tractor, 31hp Briggs & Stratton Wheel & Tires Group Parts Diagram

Legacy XL Garden Tractor, 31hp Briggs & Stratton

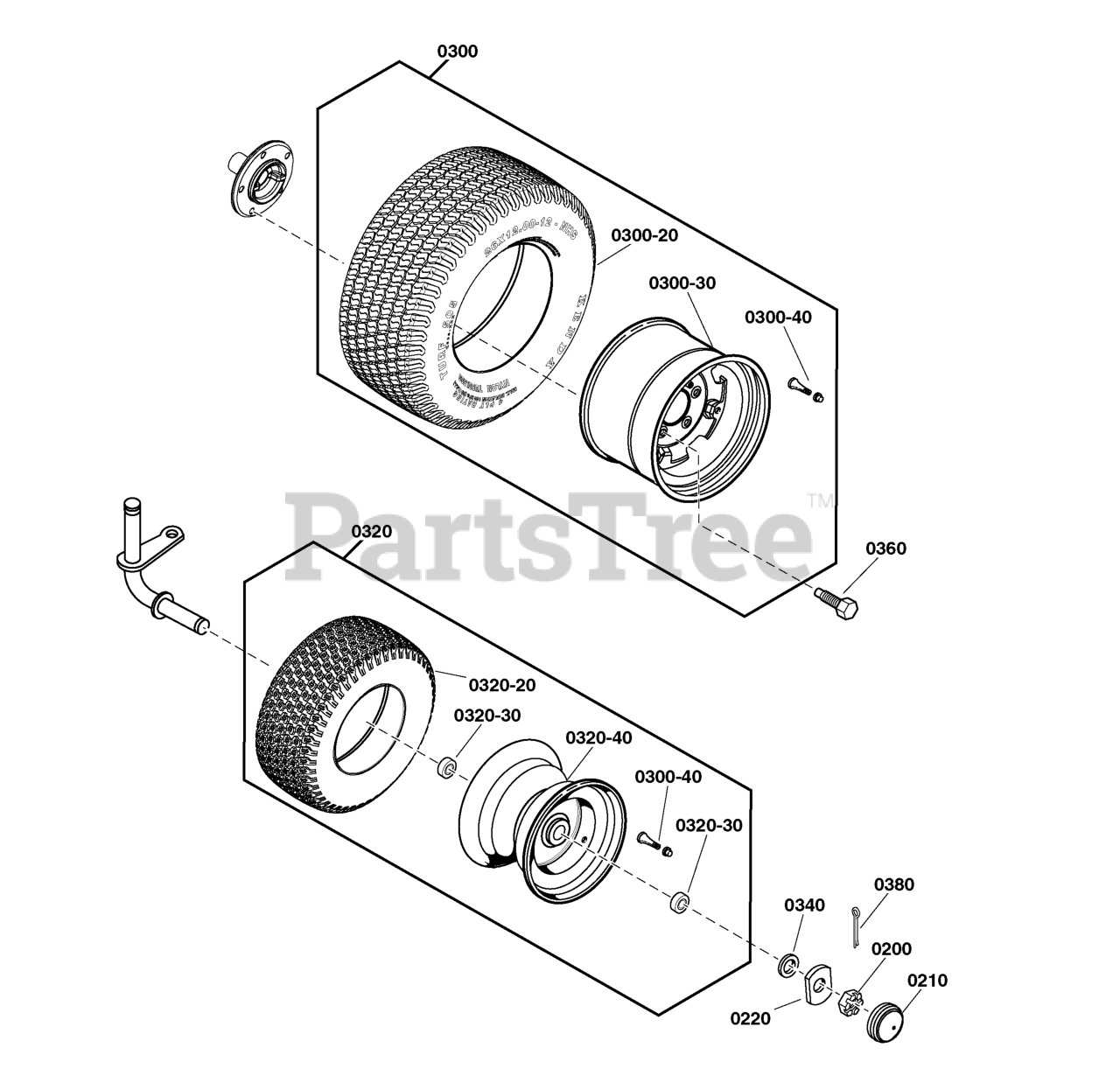

Wheel & Tires Group Parts Diagram

  • Title

0200

Simplicity 1960387SM

NUT, Hex, Slotted, 3/4-16, Black

$6.49

$

Usually ships in 2-12 days

0

0210

Simplicity 1722676SM

HUB CAP

$5.49

$

In Stock, Qty 20+

0

0220

Simplicity 1722717SM

WASHER, 2-1/2

$7.99

$

In Stock, Qty 20+

0

0300

Simplicity 84003649

WHEEL & TIRE ASSEMBLY, Rear, Turf Tires, 26 x 12 x 12

Note: (Incl. Ref. Nos. 0300-20, 0300-30 & 0300-40)

$554.99

$

Usually ships in 2-12 days

0

0300-20

Simplicity 1725724SM

TIRE, Turf Tire, 26 x 12-12

$307.99

$

Usually ships in 2-12 days

0

0300-30

RIM

Note: (Refer to Note: *)

$

$

Not available

0300-40

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0320

Simplicity 1761027YP

WHEEL & TIRE ASSEMBLY, Front, 2 Wheel Drive Models, Turf Tires

Note: (Incl. Ref. Nos. 0300-40, 0320-20, 0320-30, 0320-40)

$237.99

$

Usually ships in 2-12 days

0

0320-20

Simplicity 1725720SM

TIRE, Turf Tire, Front, 18 x 8.5-8

$105.99

$

Usually ships in 2-12 days

0

0320-30

Simplicity 1725722SM

BEARING

$37.99

$

In Stock, only 1 left!

0

0320-40

RIM

Note: (Refer to Note: *)

$

$

Not available

0340

Simplicity 2860202SM

WASHER, 3/4 x 1-5/8 OD x 1/8 Thick

$4.49

$

In Stock, Qty 20+

0

0360

Simplicity 1729280SM

Wheel Bolt (Not Included)

$6.49

$

In Stock, Qty 6

0

0380

Simplicity 84003651

PIN, Cotter

$3.49

$

Usually ships in 2-12 days

0
