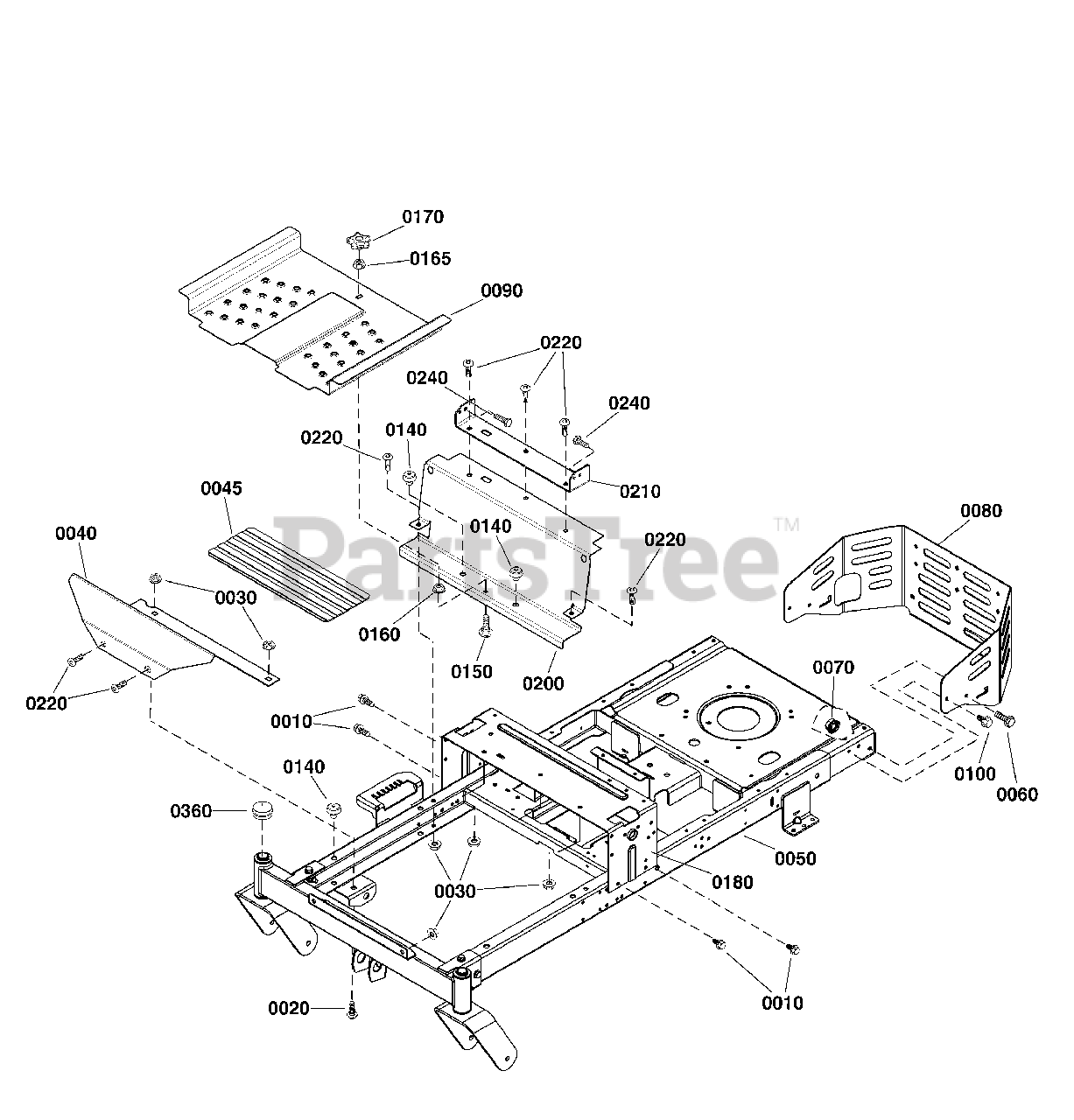

2691519-01 - Simplicity Courier 36"/91cm Zero-Turn Mower, 23hp Briggs & Stratton Frame Group (2992706) Parts Diagram

Courier 36"/91cm Zero-Turn Mower, 23hp Briggs & Stratton

Frame Group (2992706) Parts Diagram

  • Title
0010

Simplicity 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 5

0

0020

Simplicity 703448

BOLT, Carriage, 3/8-16 X 3/4, GR5

$4.49

$

In Stock, Qty 20+

0

0030

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0040

Simplicity 84002101

FOOTREST, Front

$109.99

$

Usually ships in 2-12 days

0

0045

Simplicity 5101567YP

SAFETY WALK, 5.13 X 15.25

$13.99

$

Usually ships in 2-12 days

0

0050

FRAME

Note: (Not a serviceable part)

$

$

Not available

0060

Simplicity 703410

BOLT, Serrated Flange, 5/16-18 X 1.0

$4.49

$

In Stock, only 2 left!

0

0070

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0080

Simplicity 84002229

BUMPER, Rear

$295.99

$

Usually ships in 2-12 days

0

0090

$164.99

$

Usually ships in 2-12 days

0

0100

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 197546GS

MOUNT, Vibration

$7.99

$

In Stock, only 2 left!

0

0150

Simplicity 7090496YP

BOLT, Carriage, 1/4C X 1, GR5

$3.49

$

Usually ships in 2-12 days

0

0160

Simplicity 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 6

0

0165

Simplicity 15X143MA

NUT, Center Lock, 1/4-20

$4.99

$

In Stock, Qty 13

0

0170

Simplicity 707785

KNOB, 5 Prong

$5.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1758010CYP

BRACKET, Control

$112.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1757796CYP

BRACKET, Brand Plate

$108.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1760193CYP

BRACKET, Seat

$25.99

$

Usually ships in 2-12 days

0

0220

Simplicity 707790

SCREW, Button Head, 3/8-16 X .88
(Superseded to 84004627)

$4.49

$

Usually ships in 2-12 days

0

0240

Simplicity 703932

SCREW, 5/16-18 x 1/2" Torx Pan Head

$4.99

$

Usually ships in 2-12 days

0

0360

Simplicity 84002102

CAP, Vinyl

$4.49

$

In Stock, only 2 left!

0
