2691519-01 - Simplicity Courier 36"/91cm Zero-Turn Mower, 23hp Briggs & Stratton 36" Mower Deck - Roller Group (2992727) Parts Diagram

Courier 36"/91cm Zero-Turn Mower, 23hp Briggs & Stratton

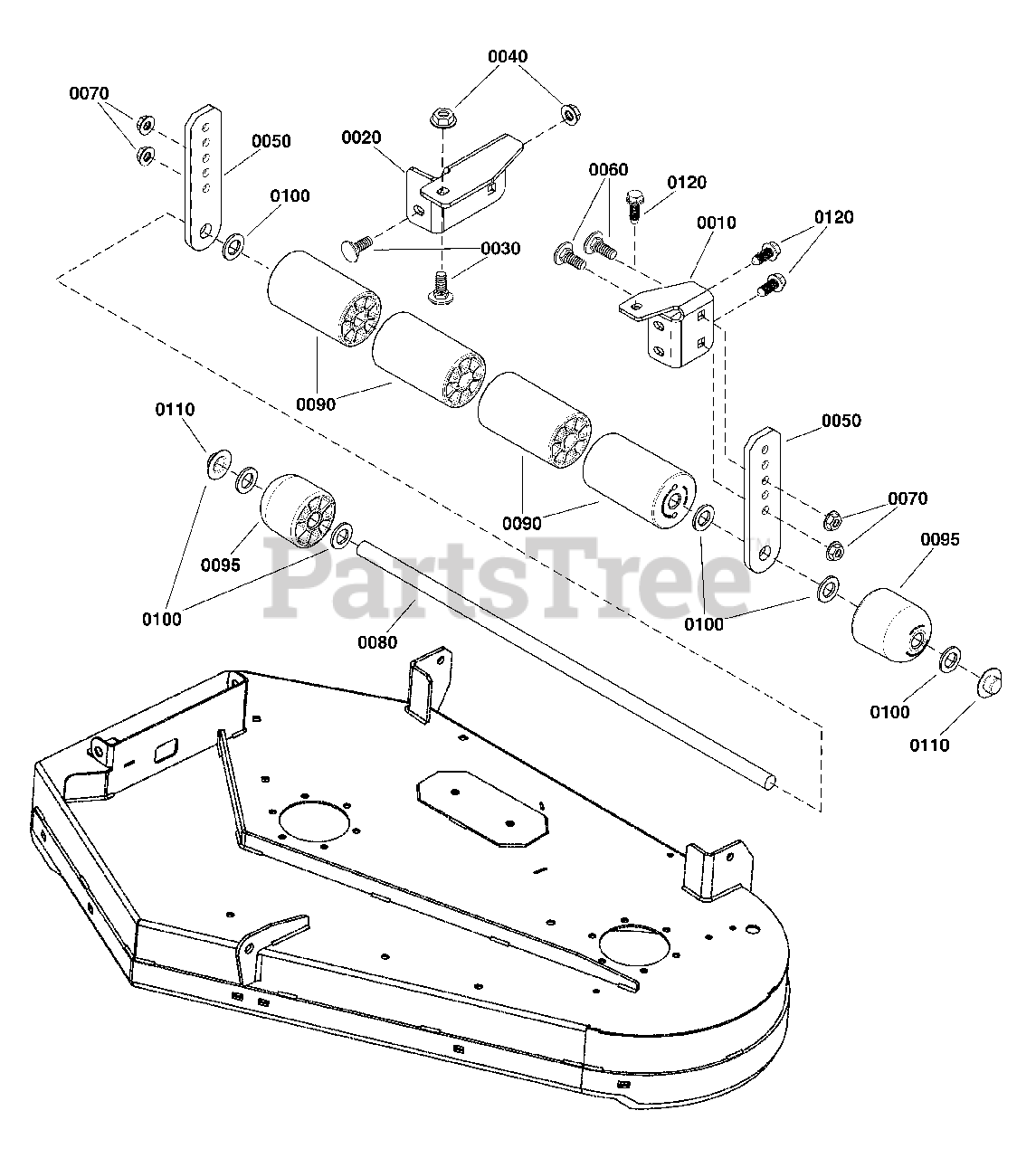

36" Mower Deck - Roller Group (2992727) Parts Diagram

  • Title

0010

Simplicity 84001713

BRACKET, Roller, LH

$28.99

$

Usually ships in 2-12 days

0

0020

Simplicity 84001714

BRACKET, Roller, RH

$27.99

$

Usually ships in 2-12 days

0

0030

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0040

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0050

Simplicity 1758461AYP

BAR, Roller

$18.99

$

Usually ships in 2-12 days

0

0060

Simplicity 703815

BOLT, Carriage, 3/8-16 X 1

$4.49

$

In Stock, only 4 left!

0

0070

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0080

Simplicity 1759677YP

SHAFT, Roller

$43.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1668513SM

ROLLER, .652 ID, 2.50 OD, 4.10 LG

$10.99

$

In Stock, Qty 20+

0

0095

Simplicity 1717675SM

ROLLER, .650 ID, 2.5" OD, 2.05" Long, Rounded End

$6.99

$

In Stock, Qty 20+

0

0100

Simplicity 703580

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

0110

Simplicity 771009

PUSHNUT

$3.99

$

In Stock, Qty 20+

0

0120

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0
