2691519-00 - Simplicity Courier 36"/91cm Zero-Turn Mower, 23hp Briggs & Stratton Transmission Group (2992737) Parts Diagram

Courier 36"/91cm Zero-Turn Mower, 23hp Briggs & Stratton

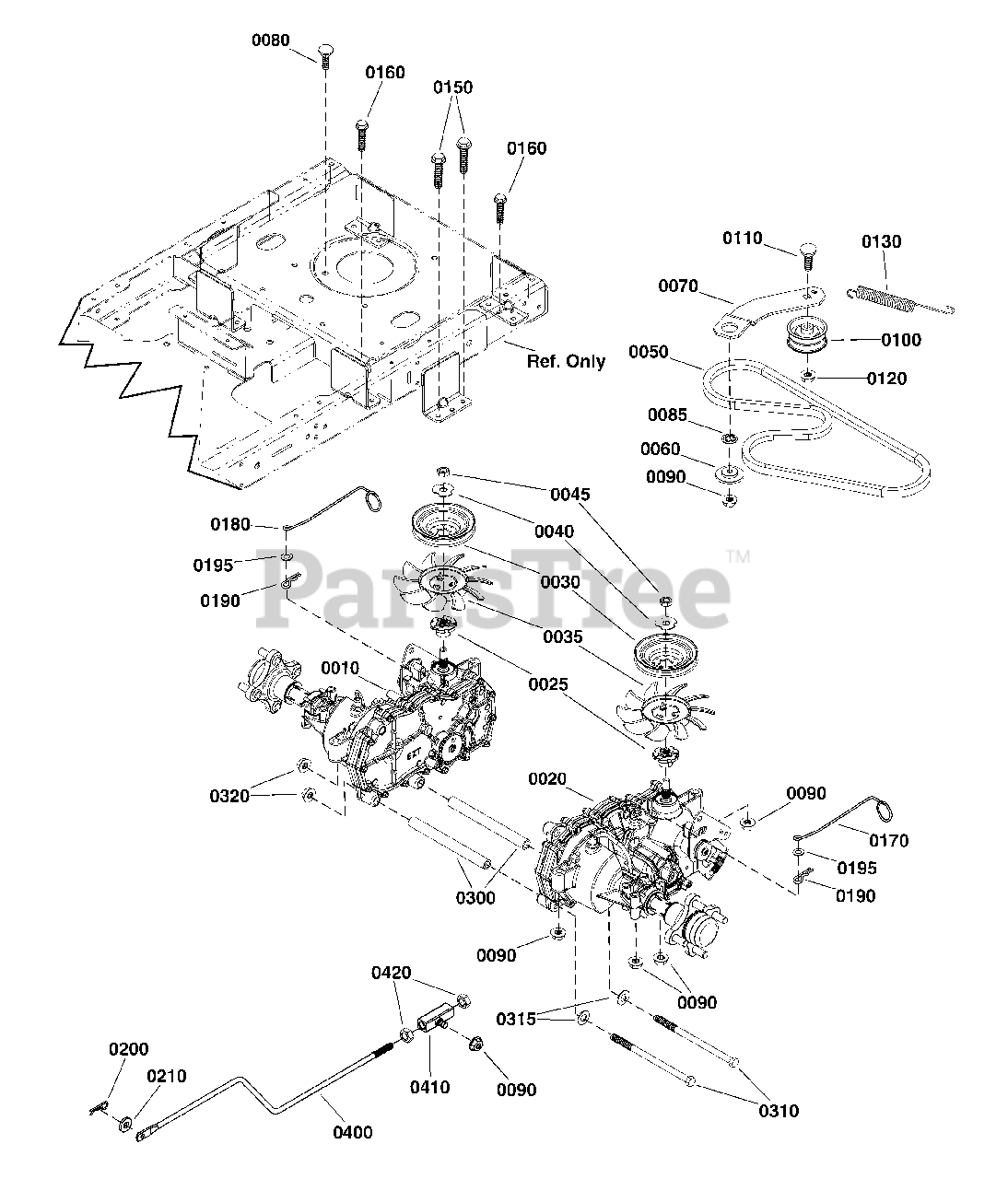

Transmission Group (2992737) Parts Diagram

  • Title

0010

Simplicity 84002176

* TRANSMISSION, EZT, RH

Note: (Refer to Note: *) (Model: (ZD-DPBB-2A7C-2XPX)

$817.99

$

Usually ships in 2-12 days

0

0020

Simplicity 84002177

* TRANSMISSION, EZT, LH

Note: (Refer to Note: *) (Model: (ZD-APBB-2A7B-3XPX)

$805.99

$

Usually ships in 2-12 days

0

0025

Simplicity 1759450YP

SPACER, Transmission

$12.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1759447YP

PULLEY, Transmission

$26.99

$

In Stock, only 3 left!

0

0035

Simplicity 1759448YP

FAN, Input

$14.99

$

In Stock, only 3 left!

0

0040

Simplicity 5102914YP

WASHER, Slotted

$3.99

$

In Stock, only 1 left!

0

0045

Simplicity 5102916YP

NUT, ZT5400

$3.49

$

In Stock, only 1 left!

0

0050

Simplicity 1758100YP

BELT, Transmission

$42.99

$

In Stock, Qty 20+

0

0060

Simplicity 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 1 left!

0

0070

Simplicity 1758044AYP

ARM, Idler

$20.99

$

In Stock, only 1 left!

0

0080

Simplicity 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 7

0

0085

Simplicity 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0090

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0100

Simplicity 1668477SM

PULLEY, Idler, 2.25" OD, .378 ID

$23.99

$

In Stock, Qty 20+

0

0110

Simplicity 703879

BOLT, Carriage, 3/8-16X1-3/4, GR5

$3.99

$

In Stock, Qty 5

0

0120

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0130

Simplicity 1758045YP

SPRING, 7.18"Long, .75" OD, Extension

$8.49

$

In Stock, only 2 left!

0

0150

Simplicity 707943

SCREW, Washer Head, 5/16-18 X 3

$5.99

$

Usually ships in 2-12 days

0

0160

Simplicity 707944

SCREW, Washer Head, 5/16-18 X 2 1/4

$4.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1759245YP

ROD, Release, LH

$14.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1759246YP

ROD, Release, RH

$14.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703430

PIN, 13X1.19

$3.49

$

In Stock, only 2 left!

0

0195

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0200

Simplicity 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0210

Simplicity 704138

TANK-FUEL

$461.99

$

In Stock, only 1 left!

0

0300

Simplicity 1759392YP

SPACER, Transmission

$14.99

$

Usually ships in 2-12 days

0

0310

Simplicity 707945

CAPSCREW, HexHead, 7/16-14 X 11 1/4

$12.99

$

Usually ships in 2-12 days

0

0315

Simplicity 703183

WASHER, 7/16

$3.99

$

In Stock, only 2 left!

0

0320

Simplicity 1930650SM

NUT, Hex Two Way, 7/16-14

$5.49

$

In Stock, only 4 left!

0

0400

Simplicity 84002180

CONTROL ROD, Transmission

$60.99

$

Usually ships in 2-12 days

0

0410

Simplicity 84002181

TRUNNION

$10.99

$

Usually ships in 2-12 days

0

0420

Simplicity 7090460

NUT, 7/16-20 Hex, GR 5 or B
(Superseded to 7090460SM)

$2.49

$

Usually ships in 2-12 days

0
