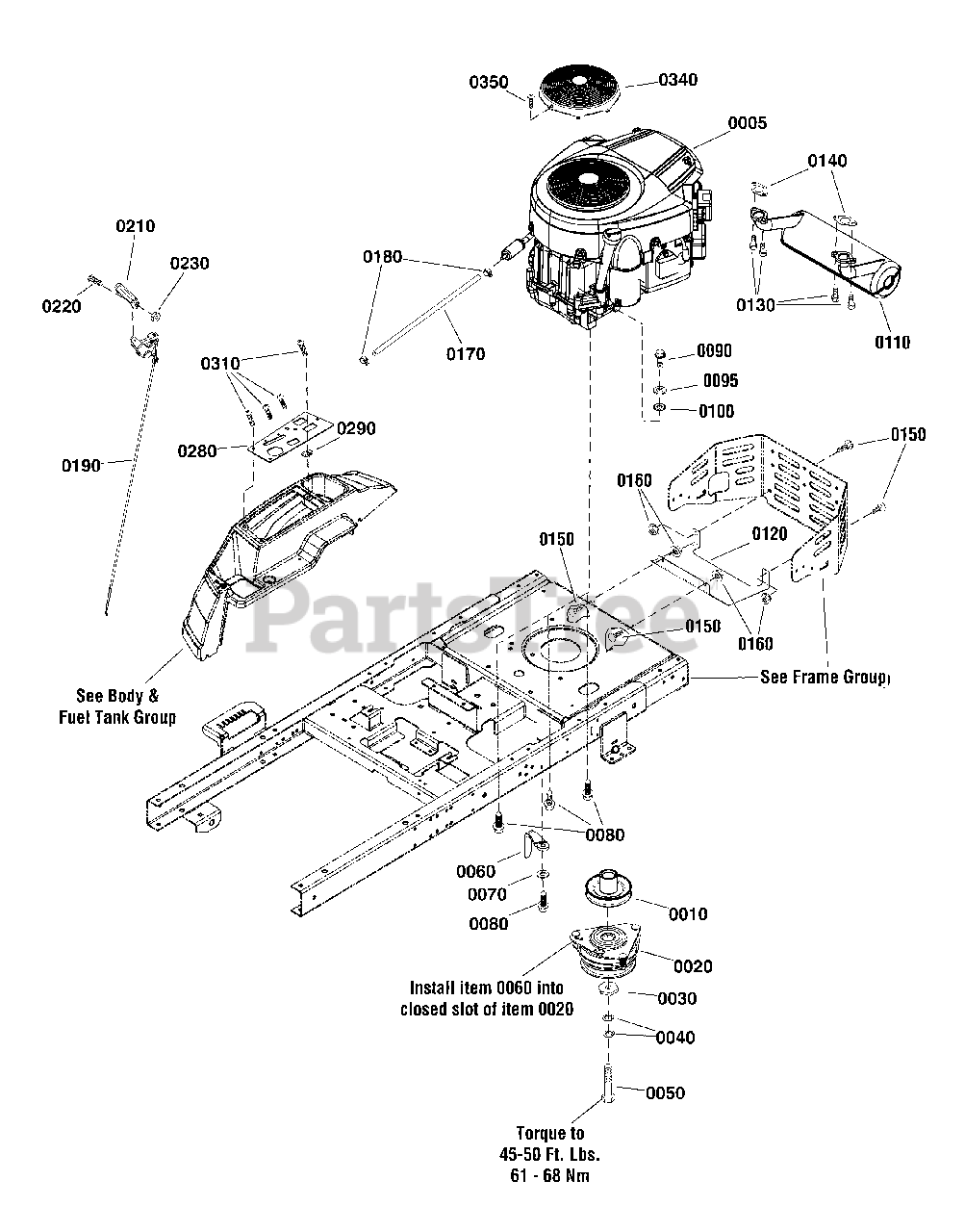

2691502-01 - Simplicity Courier 44"/112cm Zero-Turn Mower, 23hp Briggs & Stratton Engine Group (2992564) Parts Diagram

Courier 44"/112cm Zero-Turn Mower, 23hp Briggs & Stratton

Engine Group (2992564) Parts Diagram

  • Title

0005

Simplicity 44U777-0003-G1

* ENGINE, 23 Gross HP B&S PRO Series Twin

Note: (Engine Model: 44U777-0003-G1)

$

$

Currently unavailable

0010

Simplicity 1757995YP

PULLEY ASSEMBLY

$39.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1736105SM

CLUTCH, Ogura

$387.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

0040

Simplicity 1960769YP

WASHER, Belleville

$4.99

$

Usually ships in 2-12 days

0

0050

Simplicity 771023

CAPSCREW, Hex Head, Loctite, 7/16-20 x 3 1/2

$6.99

$

In Stock, only 2 left!

0

0060

Simplicity 1737421AYP

GUIDE, Belt

$12.99

$

In Stock, Qty 10

0

0070

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0080

Simplicity 2828635SM

SCREW, Taptite, 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

0090

Simplicity 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0095

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 1921880SM

WASHER, Lock, 1/4

$3.49

$

Usually ships in 2-12 days

0

0110

Simplicity 1758350YP

MUFFLER

$225.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1759502AYP

SHIELD, Heat

$63.99

$

In Stock, only 1 left!

0

0130

Simplicity 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

0140

Simplicity 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

0150

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0160

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0150

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0160

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0170

Simplicity 327290MA

HOSE, Fuel
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

0180

Simplicity 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 17

0

0190

Simplicity 1759205YP

CONTROL, Throttle

$43.99

$

In Stock, only 3 left!

0

0210

Simplicity 1739312YP

KNOB, Throttle

$11.99

$

Usually ships in 2-12 days

0

0220

Simplicity 797483

Screw

$4.49

$

Usually ships in 2-12 days

0

0230

Simplicity 703460

Nut

$3.99

$

In Stock, Qty 9

0

0280

Simplicity 1759430AYP

PANEL, Control

Note: (Used on Push Button Start)

$15.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1759429AYP

PANEL, Control

Note: (Used on Key Start)

$37.99

$

Usually ships in 2-12 days

0

0290

Simplicity 705876

NUT, Speed, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0310

Simplicity 7090999SM

SCREW, Phillips Head, 1/4-20 X 5/8
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

0340

Simplicity 797420YP

GUARD, Debris Screen

$37.99

$

Usually ships in 2-12 days

0

0350

Simplicity 799359

SCREW

$4.49

$

In Stock, only 3 left!

0
