2691502-01 - Simplicity Courier 44"/112cm Zero-Turn Mower, 23hp Briggs & Stratton 44" (112cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

Courier 44"/112cm Zero-Turn Mower, 23hp Briggs & Stratton

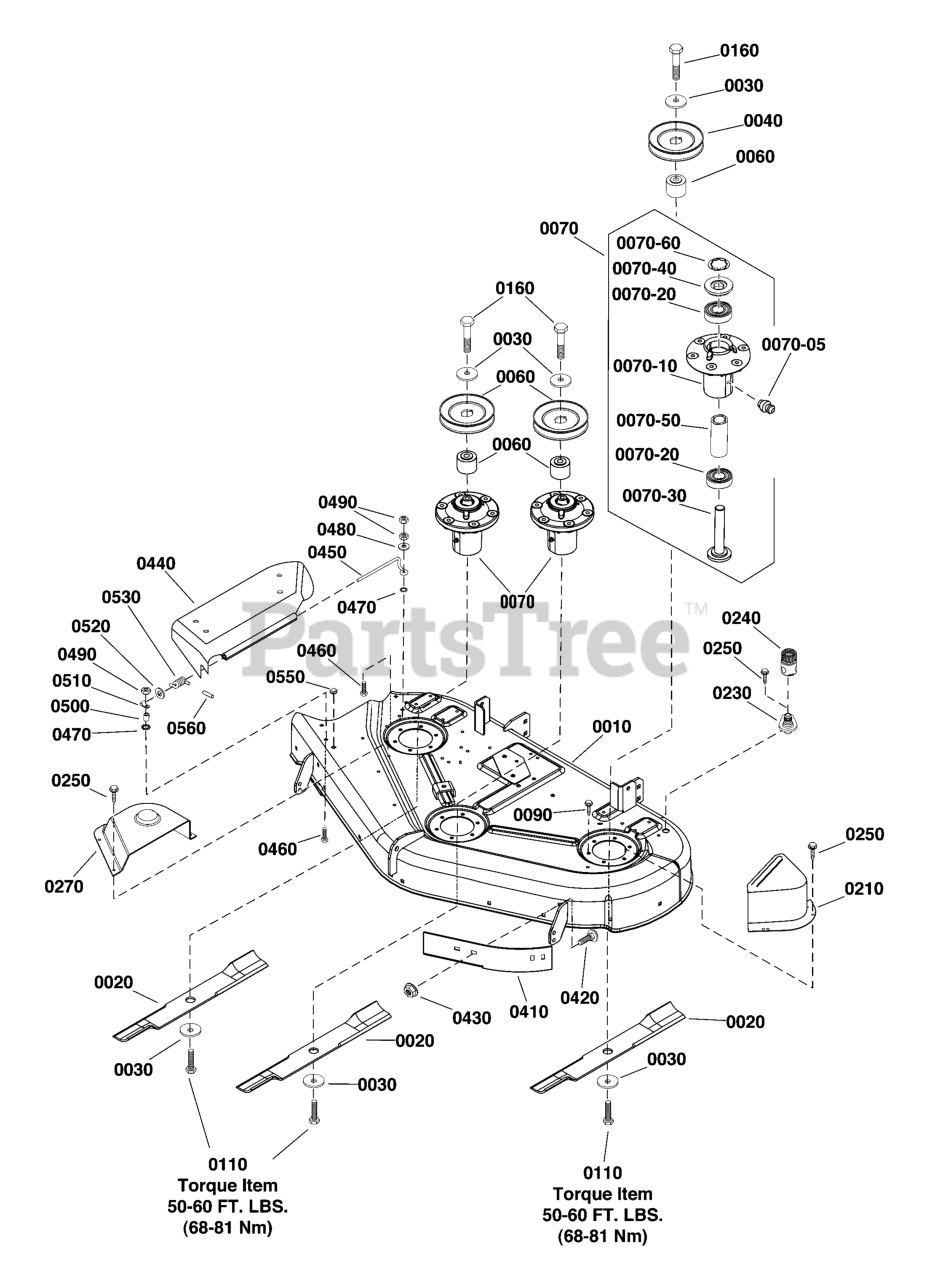

44" (112cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0010

Simplicity 1688016

KIT, Mower Deck 44" w/Decals

$1097.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1727774ASM

BLADE, Mower 44"
(Superseded to 1716696ASM)

$25.99

$

In Stock, Qty 20+

0

0030

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0040

Simplicity 1732951SM

PULLEY, .68" Deep-Groove OD 4.6"

$19.99

$

In Stock, Qty 20+

0

0060

Simplicity 706362

SPACER, Pulley

$9.99

$

Usually ships in 2-12 days

0

0070

Simplicity 84003172

ARBOR ASSEMBLY

$100.99

$

In Stock, Qty 10

0

0070-05

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0070-10

Simplicity 84003653

HOUSING, w/Lube Fittting

$81.99

$

Usually ships in 2-12 days

0

0070-20

Simplicity 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0070-30

Simplicity 84003165

SHAFT, Spindle

$31.99

$

In Stock, only 1 left!

0

0070-40

Simplicity 84003166

SHIELD, Arbor

$6.99

$

In Stock, only 3 left!

0

0070-50

Simplicity 84003167

SPACER, Bearing

$6.99

$

In Stock, Qty 7

0

0070-60

Simplicity 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0090

Simplicity 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0110

Simplicity 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 16

0

0160

Simplicity 1921212SM

CAPSCREW, Hex Head, 7/16-14 X 1 1/2

$

$

Not available

0210

Simplicity 1759296YP

COVER, Arbor, LH

$64.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1756247YP

ADAPTER, Washout Port

$6.49

$

Usually ships in 2-12 days

0

0240

Simplicity 1756246YP

CONNECTOR, Washout Port

$15.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1664847CAYP

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0270

Simplicity 1759139YP

COVER, Arbor, RH

$75.99

$

Usually ships in 2-12 days

0

0410

Simplicity 1724538ASM

BAFFLE, Blowout, Short

$45.99

$

In Stock, only 1 left!

0

0420

Simplicity 703447

BOLT, 5/16-18 X .625, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0430

Simplicity 5025127SM

NUT, Hex Serrated Flange, 5/16-18,

$3.49

$

In Stock, only 3 left!

0

0440

Simplicity 1705449SM

DEFLECTOR, Discharge

$122.99

$

In Stock, only 2 left!

0

0450

Simplicity 1706709SM

ROD, Deflector

$8.49

$

In Stock, Qty 20+

0

0460

Simplicity 1960633SM

BOLT, 1/4-20 x 1-1/2" Round Head Square Neck, GR5
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1960674SM

NUT, Push Pal 1/4 Diameter Thread
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

0480

Simplicity 703229

WASHER, 1/4 x 27/32

$4.49

$

In Stock, Qty 8

0

0490

Simplicity 15X145MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0500

Simplicity 1710703SM

SPACER, 3/8 x 1/2 x 5/8

$6.49

$

In Stock, Qty 20+

0

0510

Simplicity 1704873SM

CLAMP, Wire, 5/16 Diameter

$4.49

$

In Stock, Qty 20+

0

0520

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 9

0

0530

Simplicity 1759750YP

SPRING, Deflector

$8.49

$

In Stock, Qty 20+

0

0550

Simplicity 1705115SM

PLUG, Button

$4.49

$

In Stock, only 1 left!

0

0560

Simplicity 1723323SM

CAP, Spring End

$4.99

$

In Stock, only 1 left!

0
