2691502-00 - Simplicity Courier 44"/112cm Zero-Turn Mower, 23hp Briggs & Stratton 44" (112cm) Mower Deck - Clutch & Support Group (2992563) Parts Diagram

Courier 44"/112cm Zero-Turn Mower, 23hp Briggs & Stratton

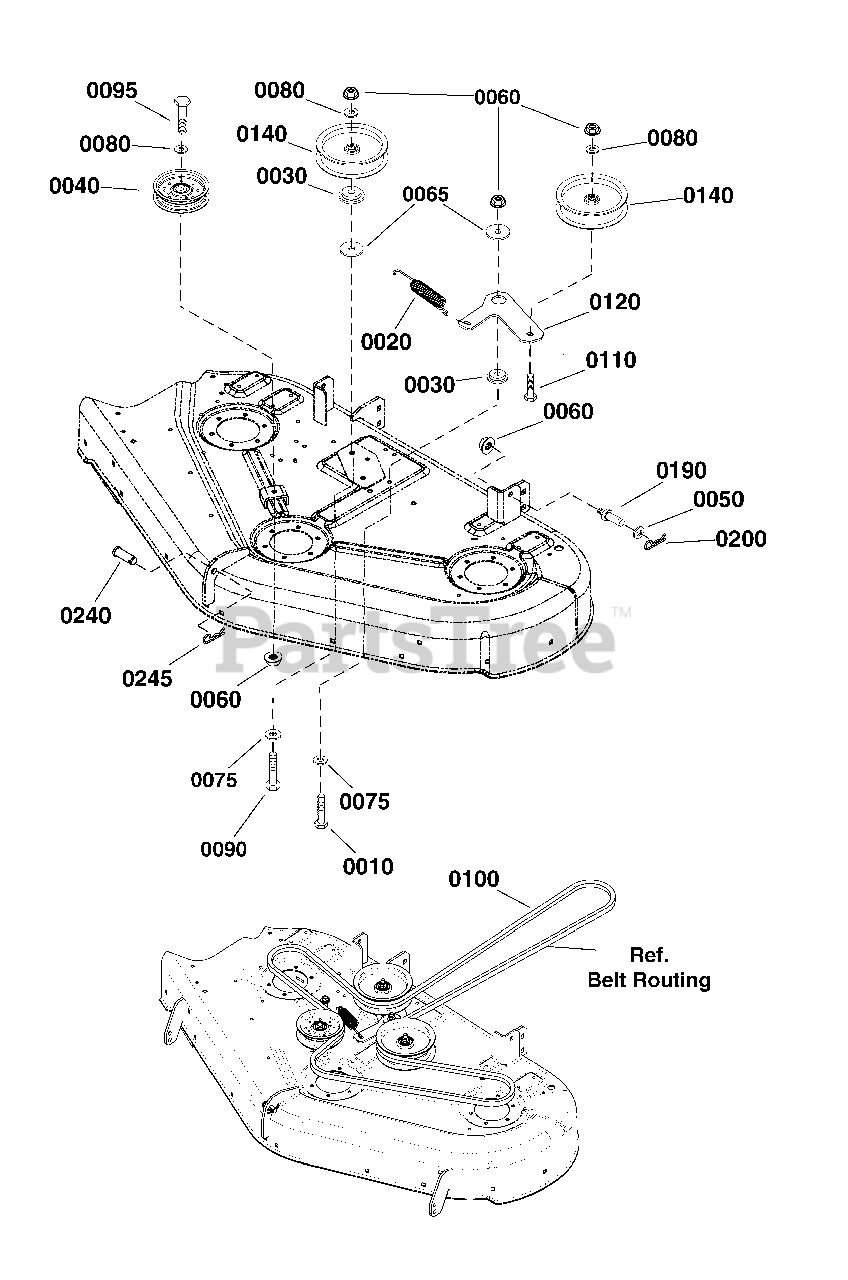

44" (112cm) Mower Deck - Clutch & Support Group (2992563) Parts Diagram

  • Title

0010

Simplicity 703406

CAPSCREW, Hex Head, 3/8-16 X 1 1/2, GR5

$4.99

$

In Stock, only 1 left!

0

0020

Simplicity 1729620SM

SPRING, Extension, 1 OD x 7-1/2

$8.49

$

In Stock, only 1 left!

0

0030

Simplicity 706128

SPACER, Idler

$6.99

$

In Stock, only 4 left!

0

0040

Simplicity 1757823YP

PULLEY, Idler, Backside

$22.99

$

In Stock, Qty 14

0

0050

Simplicity 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0

0060

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0065

Simplicity 5025305SM

WASHER, .41 X 1.75 X .14

$3.99

$

In Stock, only 2 left!

0

0075

Simplicity 1919384SM

WASHER, 3/8

$5.49

$

In Stock, only 1 left!

0

0080

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0090

Simplicity 703133

CAPSCREW, Hex Head, 3/8-16 X 2 3/4, GR5

$3.99

$

Usually ships in 2-12 days

0

0095

Simplicity 704289

CAPSCREW, Hex Head, 3/8-16 X 1 3/4

$4.99

$

In Stock, Qty 13

0

0100

Simplicity 84001702

BELT, Arbor

$87.99

$

Usually ships in 2-12 days

0

0110

Simplicity 7900009SM

BOLT, Carriage, 3/8-16 X 2 1/4

$3.99

$

In Stock, only 1 left!

0

0120

Simplicity 84002329

ARM, Idler

$21.99

$

Usually ships in 2-12 days

0

0140

Simplicity 7034422SM

PULLEY, Flat Idler

$38.99

$

In Stock, Qty 20+

0

0190

Simplicity 704054

PIN, Threaded Shoulder, 3/8-16 X 11/16

$7.49

$

In Stock, Qty 20+

0

0200

Simplicity 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0240

Simplicity 5025479YP

PIN, Clevis, 1/2 X 1 23/64

$3.99

$

In Stock, only 2 left!

0

0245

Simplicity 1722320SM

PIN, Cotter, Locking,

$3.49

$

In Stock, Qty 20+

0
