2691471-00 - Simplicity Conquest 52" Garden Tractor, 25hp Transmission SERVICE PARTS - Tuff Torq K66AP (1755100) Parts Diagram

Conquest 52" Garden Tractor, 25hp

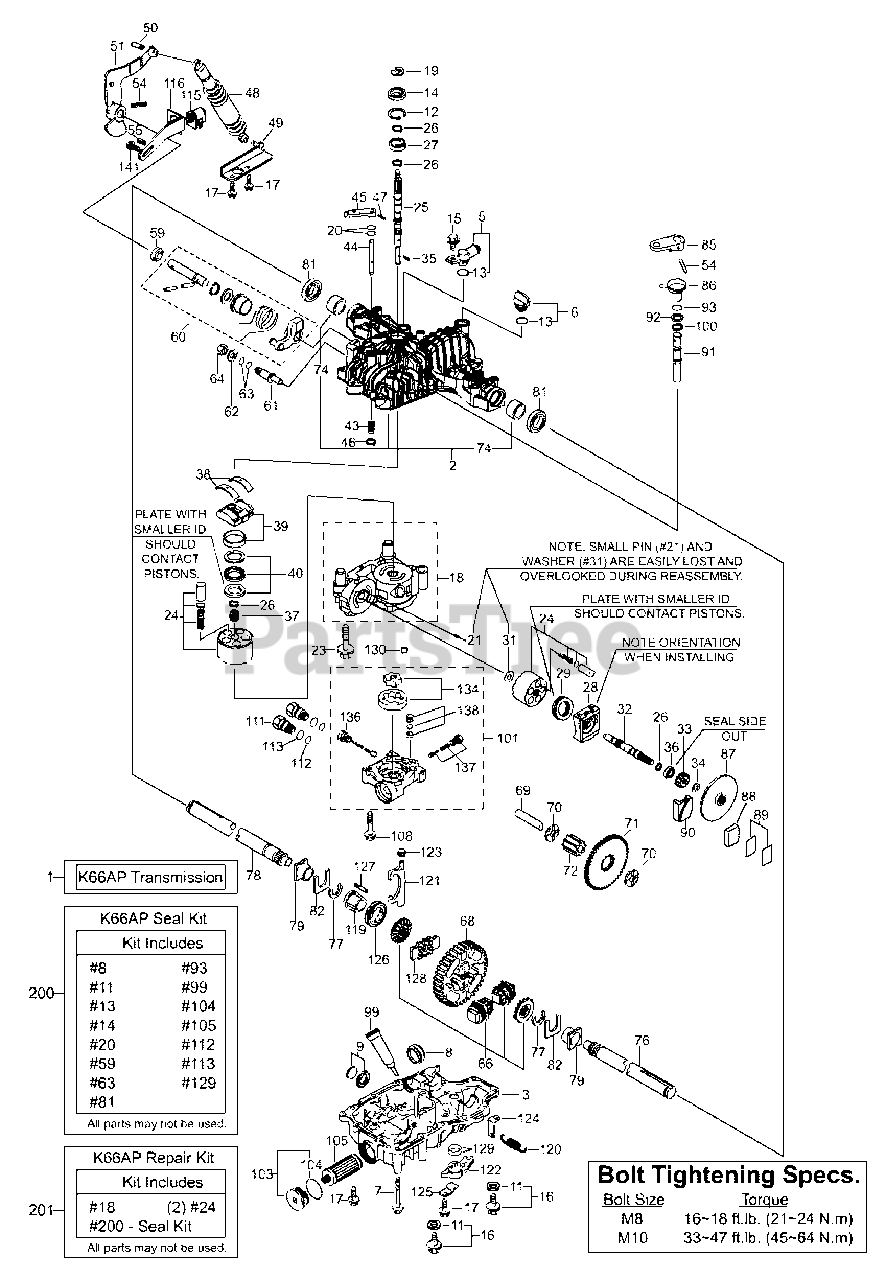

Transmission SERVICE PARTS - Tuff Torq K66AP (1755100) Parts Diagram

  • Title

1

Simplicity 1755100YP

TRANSMISSION, Tuff Torq, K66AP

$2653.99

$

Usually ships in 2-12 days

0

2

* UPPER CASE KIT

$

$

Not available

3

* LOWER CASE

$

$

Not available

5

* FITTING KIT

$

$

Not available

6

* CAP KIT

$

$

Not available

7

* CAPSCREW, M8 x 75

$

$

Not available

8

Simplicity 1720761SM

FILTER

$42.99

$

Usually ships in 2-12 days

0

9

Simplicity 1718065SM

MAGNET CMP

$14.99

$

Usually ships in 2-12 days

0

11

Simplicity 1720796SM

WASHER SEAL 10

$

$

Not available

12

Simplicity 1708650SM

SNAP RING C 35

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 1707786SM

O-RING P18

$6.49

$

Usually ships in 2-12 days

0

14

Simplicity 7073794YP

SEAL TC 153507

$23.99

$

Usually ships in 2-12 days

0

15

* BOLT, Flange, M8 x 20

$

$

Not available

16

* DRAIN BOLT KIT

$

$

Not available

17

Simplicity 1707789SM

TAPPING SCREW 8 x 30

$6.99

$

Usually ships in 2-12 days

0

18

* CENTER CASE AB

$

$

Not available

19

Simplicity 1718076SM

E-RING

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 1708691SM

O-RING, 1A P10A
(Superseded to 7073793YP)

$5.99

$

Usually ships in 2-12 days

0

21

Simplicity 1718070SM

PIN 3 x 9.8

$

$

Not available

23

* BOLT, M10 x 65

$

$

Not available

24

* CYLINDER BLOCK KIT

$

$

Not available

25

Simplicity 1724699SM

PUMP SHAFT

$140.99

$

In Stock, only 1 left!

0

26

Simplicity 1708672SM

SNAP RING S15

$5.49

$

Usually ships in 2-12 days

0

27

Simplicity 1708673SM

BEARING 6202C3

$24.99

$

Usually ships in 2-12 days

0

28

Simplicity 1724700SM

MOTOR HOUSING

$

$

Not available

29

Simplicity 1708675SM

THRUST BEARING

$83.99

$

Usually ships in 2-12 days

0

31

Simplicity 1718084SM

WASHER 12 x 24 x 1

$4.49

$

Usually ships in 2-12 days

0

32

* MOTOR SHAFT/GEAR (9T)

$

$

Not available

33

Simplicity 1724752SM

MOTOR GEAR

$45.99

$

Usually ships in 2-12 days

0

34

Simplicity 1724751SM

E-RING

$

$

Not available

35

Simplicity 1722223SM

PIN 3 x 13.8

$2.99

$

Usually ships in 2-12 days

0

36

Simplicity 1724702SM

BEARING 6302DUC3

$29.99

$

Usually ships in 2-12 days

0

37

Simplicity 1708669SM

PUMP SPRING

$3.99

$

Usually ships in 2-12 days

0

38

Simplicity 1708677SM

THRUST METAL

$25.99

$

Usually ships in 2-12 days

0

39

Simplicity 1724703SM

SWASH PLATE ASSEMBLY

$64.99

$

Usually ships in 2-12 days

0

40

* THRUST BEARING KIT

$

$

Not available

43

Simplicity 1725730SM

SPRING 25

$1.99

$

Usually ships in 2-12 days

0

44

Simplicity 1720838SM

BYPASS SHAFT

$

$

Not available

45

Simplicity 1720418SM

BYPASS LEVER

$14.99

$

Usually ships in 2-12 days

0

46

* RING, 10

$

$

Not available

47

Simplicity 1707839SM

SPRING PIN 3.0A x 20

$3.49

$

Usually ships in 2-12 days

0

48

* SHOCK ABSORBER

$

$

Not available

49

Simplicity 1724704SM

SHOCK STAY

$30.99

$

Usually ships in 2-12 days

0

50

Simplicity 1724705SM

PIN

$3.49

$

Usually ships in 2-12 days

0

51

* CONTROL LEVER

$

$

Not available

54

Simplicity 1718100SM

ROLL PIN 6 x 40
(Superseded to 1960588SM)

$4.49

$

In Stock, only 1 left!

0

55

* PIN 8 x 16

$

$

Not available

59

Simplicity 1718120SM

SEAL TC 162606

$10.99

$

Usually ships in 2-12 days

0

60

* CONTROL SHAFT KIT

$

$

Not available

61

Simplicity 1724344SM

FULCRUM

$

$

Not available

62

Simplicity 1708689SM

WASHER 12

$3.99

$

Usually ships in 2-12 days

0

63

Simplicity 1707879SM

O-RING 1A P14

$4.49

$

Usually ships in 2-12 days

0

64

Simplicity 1708692SM

NUT 12

$2.99

$

Usually ships in 2-12 days

0

66

* DIFFERENTIAL GEAR KIT

$

$

Not available

68

* FINAL GEAR

$

$

Not available

69

Simplicity 1724714SM

FINAL PINION SHAFT

$

$

Not available

70

Simplicity 1724715SM

WASHER 15 x 35 x 3.2

$3.99

$

Usually ships in 2-12 days

0

71

Simplicity 1724753SM

REDUCTION GEAR (53T)

$71.99

$

Usually ships in 2-12 days

0

72

Simplicity 1724717SM

FINAL PINION Gear (11T)

$109.99

$

Usually ships in 2-12 days

0

74

Simplicity 1724693SM

BUSHING 25.4

$6.99

$

Usually ships in 2-12 days

0

76

Simplicity 1724718SM

AXLE SHAFT, LEFT

$107.99

$

Usually ships in 2-12 days

0

77

Simplicity 1720859SM

RETAINING RING 23

$3.99

$

Usually ships in 2-12 days

0

78

Simplicity 1724719SM

AXLE SHAFT, RIGHT

$

$

Not available

79

Simplicity 1720860SM

BUSHING 25.4

$8.49

$

Usually ships in 2-12 days

0

81

Simplicity 1718264SM

SEAL S 25.4 x 42 x 8

$24.99

$

In Stock, Qty 6

0

82

Simplicity 1720858SM

THRUST WASHER

$12.99

$

Usually ships in 2-12 days

0

85

* BRAKE LEVER

$

$

Not available

86

* BRAKE RETURN SPRING

$

$

Not available

87

Simplicity 1724723SM

BRAKE DISC

$21.99

$

Usually ships in 2-12 days

0

88

Simplicity 1724724SM

BRAKE SHOE

$6.49

$

Usually ships in 2-12 days

0

89

Simplicity 1724725SM

SHIM KIT

$3.99

$

Usually ships in 2-12 days

0

90

Simplicity 1724726SM

BRAKE ACTUATOR

$8.99

$

Usually ships in 2-12 days

0

91

Simplicity 1724727SM

BRAKE SHAFT

$

$

Not available

92

Simplicity 1724728SM

WASHER 16 x 23 x 1.6

$6.49

$

Usually ships in 2-12 days

0

93

Simplicity 1708690SM

O-RING 1A P12
(Superseded to 7073763YP)

$6.49

$

In Stock, only 1 left!

0

99

* SEALANT

$

$

Not available

100

Simplicity 1707912SM

SNAP RING

$3.49

$

In Stock, only 2 left!

0

101

* PUMP CASE KIT (K664C & E)

$

$

Not available

103

* CAP KIT

$

$

Not available

104

* O-RING 1A 24040

$

$

Not available

105

Simplicity 1736211SM

FILTER

$73.99

$

Usually ships in 2-12 days

0

108

* BOLT, Flange, M8 x 45

$

$

Not available

111

Simplicity 1720829SM

CONNECTOR

$22.99

$

Usually ships in 2-12 days

0

112

Simplicity 1720831SM

O-RING 6.1

$5.49

$

Usually ships in 2-12 days

0

113

Snapper 1723773SM

O-RING

$1.99

$

Usually ships in 2-12 days

0

115

* SWITCH 6440-11 DELTA

$

$

Not available

116

* SWITCH PLATE

$

$

Not available

119

* COLLAR 25.4

$

$

Not available

120

Simplicity 1724741SM

DIFFERENTIAL RETURN SPRING

$13.99

$

Usually ships in 2-12 days

0

121

Simplicity 1724733SM

DIFFERENTIAL LOCK FORK

$

$

Not available

122

Simplicity 1724732SM

DIFFERENTIAL LOCK LEVER

$75.99

$

Usually ships in 2-12 days

0

123

* LEVER PIVOT

$

$

Not available

124

Simplicity 1724734SM

SPRING HOOK

$7.49

$

Usually ships in 2-12 days

0

125

Simplicity 1724735SM

LEVER CLIP

$8.49

$

Usually ships in 2-12 days

0

126

Simplicity 1724736SM

DIFFERENTIAL LOCK SLIDER

$67.99

$

Usually ships in 2-12 days

0

127

* DIFF LOCK PIN

$

$

Not available

128

* DIFF LOCK PLATE

$

$

Not available

129

Simplicity 1724739SM

0-RING 1A G25

$7.49

$

Usually ships in 2-12 days

0

130

* ALIGNMENT SLEEVE 11 x 7

$

$

Not available

134

* ROTOR SET

$

$

Not available

136

Simplicity 1720828SM

CHARGE RELIEF VALVE

$

$

Not available

137

Simplicity 1720826SM

IMPLEMENT RELIEF VALVE

$

$

Not available

138

Simplicity 1720824SM

3RD CHECK VALVE

$

$

Not available

141

Simplicity 1707890SM

TAPPING SCREW 8 x 20

$3.49

$

In Stock, only 1 left!

0

200

* KIT, Seal

$

$

Not available

201

* REPAIR KIT

$

$

Not available
