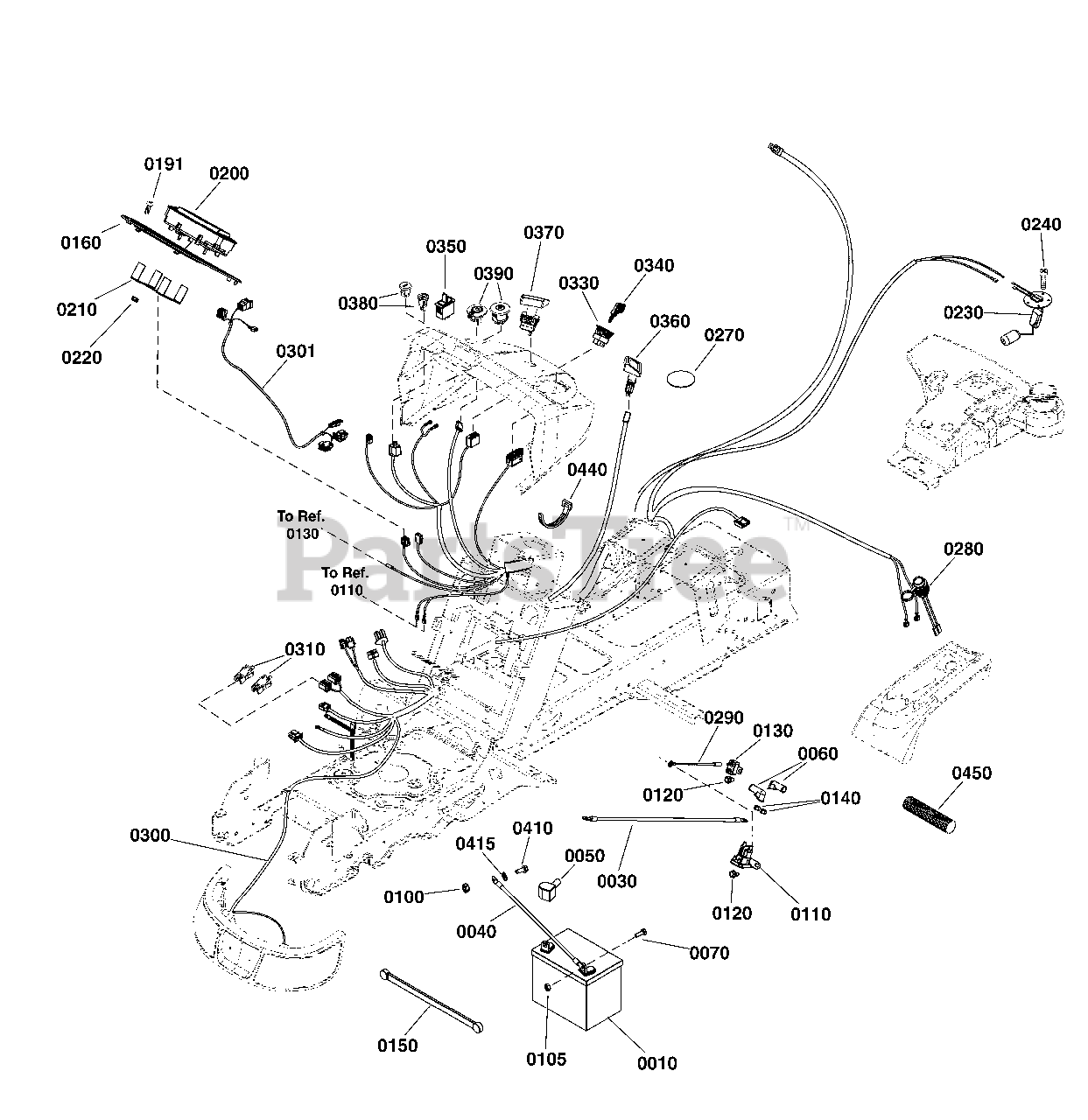

2691468-01 - Simplicity Prestige 50" Garden Tractor, 27hp Electrical Group Parts Diagram

Prestige 50" Garden Tractor, 27hp

Electrical Group Parts Diagram

  • Title

0010

BATTERY, 12 Volt, 350 CCA

$

$

Not available

0030

Simplicity 1721830SM

CABLE, #6 x 25

$19.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1755469YP

CABLE, Electric, #6 X 17.5", Black

$12.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1677296SM

BOOT, Insulator, Red

$6.49

$

In Stock, Qty 11

0

0060

Simplicity 1713535SM

BOOT, Insulator

$5.99

$

In Stock, only 1 left!

0

0070

Simplicity 1960295SM

CAPSCREW, Hex Head Whizlock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

0100

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

0105

Simplicity 703233

NUT, 1/4-20

$4.49

$

In Stock, Qty 6

0

0110

Simplicity 1755381YP

SOLENOID

$24.99

$

In Stock, Qty 20+

0

0120

Simplicity 1925003SM

SCREW, Hex Washer Head, Taptite, 1/4-20X0.500
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

0130

Simplicity 1665238SM

BREAKER, Circuit, 20 Amp

$14.99

$

In Stock, Qty 20+

0

0140

Simplicity 2860750SM

NUT, Hex KEPS, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1722009SM

STRAP, Rubber

$10.99

$

In Stock, only 1 left!

0

0160

Simplicity 1754861YP

BEZEL, Premium Instrument

$8.99

$

Usually ships in 2-12 days

0

0191

Simplicity 1739329YP

SCREW, 5mm. x 12mm Lg

$4.49

$

Usually ships in 2-12 days

0

0200

Simplicity 1760751YP

PANEL, EFI

$494.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1739681BMYP

BRACKET, Instrument Panel

$31.99

$

Usually ships in 2-12 days

0

0220

Simplicity 67885GS

NUT, Nylock, M6-1

$6.99

$

In Stock, only 1 left!

0

0230

Simplicity 1737523YP

SENDER, Fuel

$75.99

$

Usually ships in 2-12 days

0

0240

Simplicity 2860665SM

SCREW, Pan Head, 10-32 X 1/2

$3.49

$

Usually ships in 2-12 days

0

0270

Simplicity 1722309SM

PLUG

$5.99

$

In Stock, Qty 11

0

0280

Simplicity 1725302SM

OUTLET, 12 Volt

$26.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1665237SM

WIRE, 12GA, 5.9

$11.99

$

In Stock, Qty 7

0

0300

Simplicity 84001666

WIRING HARNESS, Main

$222.99

$

Usually ships in 2-12 days

0

0301

Simplicity 84001666

WIRING HARNESS, Main

$222.99

$

Usually ships in 2-12 days

0

0310

Simplicity 7022886YP

SWITCH, DP NO/NC SNAP-IN

$14.99

$

In Stock, Qty 20+

0

0330

Simplicity 1761897YP

SWITCH, Reverse Mow Option

$30.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1726557SM

KEY, No Mow Module, Plastic

$5.49

$

In Stock, Qty 20+

0

0350

Simplicity 1738381YP

SWITCH, Height Of Cut

$38.99

$

In Stock, only 1 left!

0

0360

Simplicity 1757736YP

SWITCH, PTO

$43.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1757737YP

SWITCH, Headlight

$39.99

$

Usually ships in 2-12 days

0

0380

Simplicity 791944

SWITCH, Key

$14.99

$

In Stock, only 1 left!

0

0380

Simplicity 282640YP

PLUG, Hole

$6.99

$

Usually ships in 2-12 days

0

0390

Simplicity 1753667YP

SWITCH ASSEMBLY, Push Button Start

$43.99

$

In Stock, only 1 left!

0

0390

Simplicity 7106169YP

SWITCH, Ignition, 3 Position

$17.99

$

In Stock, Qty 20+

0

0410

Simplicity 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0415

Simplicity 1921880SM

LOCKWASHER, External Tooth, 1/4

$3.49

$

Usually ships in 2-12 days

0

0450

Simplicity 5050861X6YP

WIRE LOOM, 5/8 ID X 6 IN

$6.49

$

In Stock, only 1 left!
