2691457-00 - Simplicity Regent S 44" Lawn Tractor, 25hp Briggs & Stratton Steering Group Parts Diagram

Regent S 44" Lawn Tractor, 25hp Briggs & Stratton

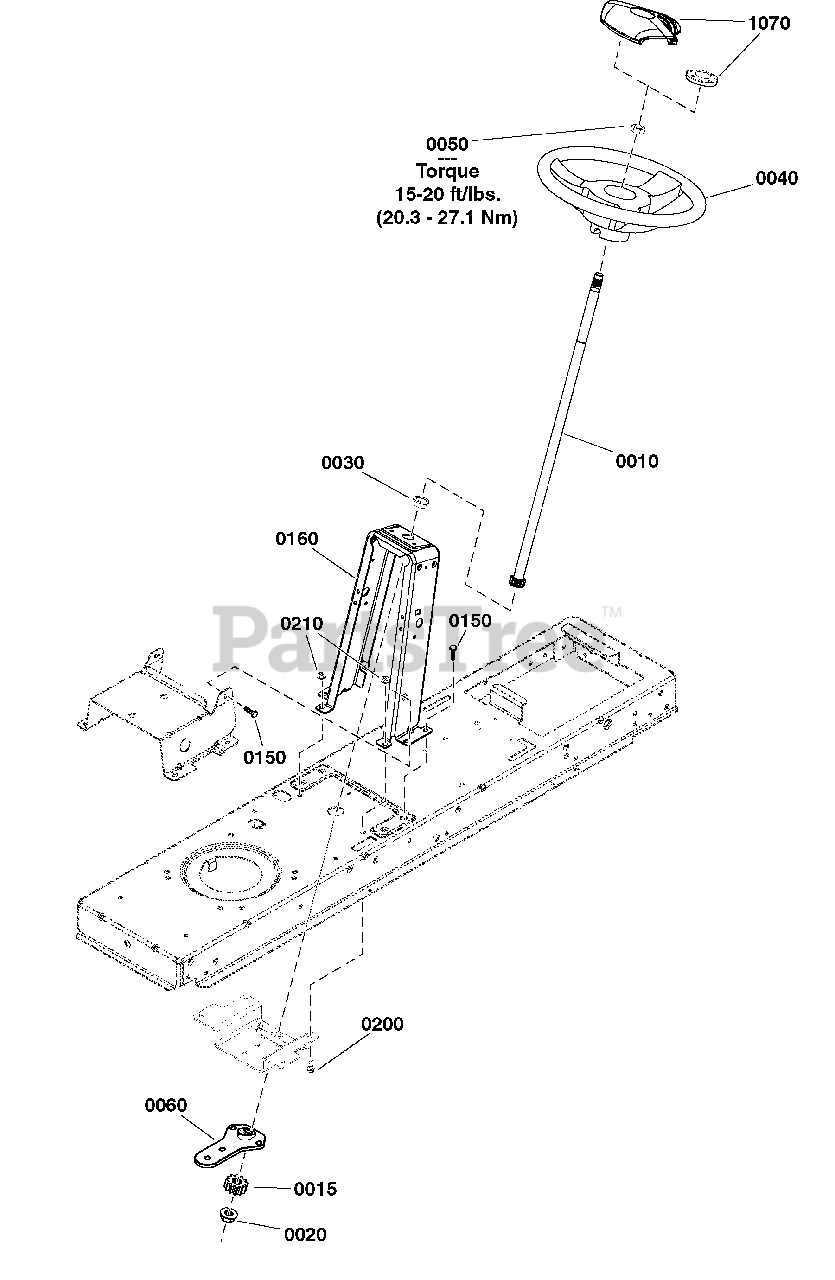

Steering Group Parts Diagram

  • Title

0010

Simplicity 1761012YP

SHAFT, Steering

$54.99

$

In Stock, Qty 5

0

0015

Simplicity 1761013YP

GEAR, Pinion

$6.99

$

In Stock, Qty 20+

0

0020

Simplicity 704067

NUT, 5/16-18, Hex Flange, Center Lock

$3.99

$

In Stock, Qty 20+

0

0030

Simplicity 1729665SM

BUSHING, Steering, 3/4 ID

$5.99

$

In Stock, Qty 15

0

0040

Simplicity 7078088YP

STEERING WHEEL, UV-2

$131.99

$

In Stock, only 1 left!

0

0050

Simplicity 1960576SM

NUT, Hex Lock, ESNA Light, 5/8-18

$5.99

$

In Stock, Qty 8

0

0060

Simplicity 1761010YP

SUPPORT, Steering

$28.99

$

In Stock, Qty 9

0

0150

Simplicity 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, only 3 left!

0

0160

Simplicity 1761498CJYP

TOWER, Steering

$113.99

$

Usually ships in 2-12 days

0

0200

Simplicity 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 6

0

0210

Simplicity 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

1070

Simplicity 1725024

CAP, Steering Wheel, Plain
(Superseded to 1725024SM)

$7.49

$

In Stock, only 1 left!

0

1070

Simplicity REF-DECALS

Refer to: Decals Group

$

$

Currently unavailable
