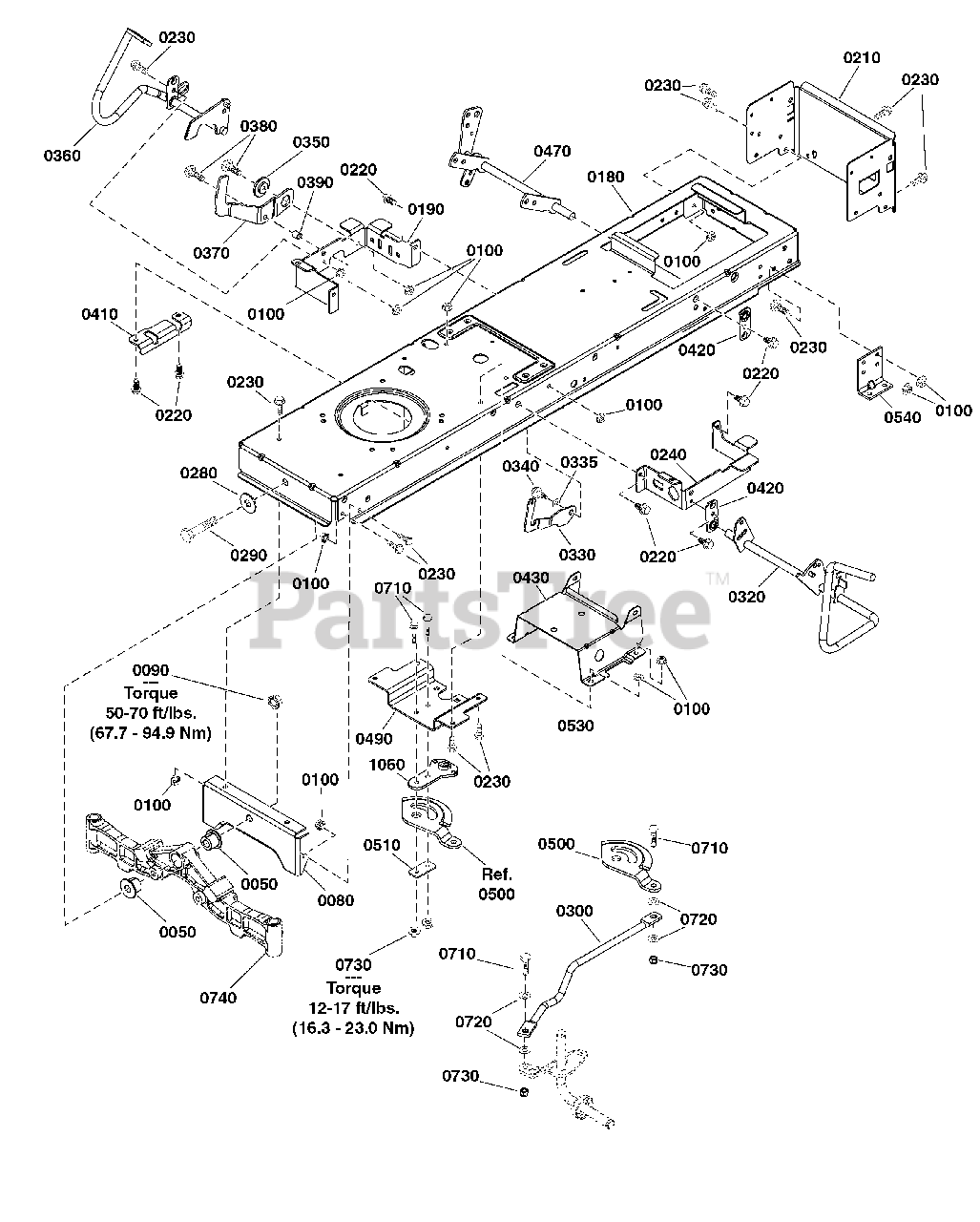

2691454-02 - Simplicity Regent 38" Lawn Tractor, 22hp Briggs & Stratton Frame & Front Axle Group Parts Diagram

Regent 38" Lawn Tractor, 22hp Briggs & Stratton

Frame & Front Axle Group Parts Diagram

  • Title

0050

Simplicity 1730186SM

BUSHING, Axle Pivot

$6.99

$

In Stock, Qty 12

0

0080

Simplicity 1727902SM

PLATE, Axle Support

$43.99

$

Usually ships in 2-12 days

0

0090

Simplicity 2860646SM

NUT, Hex Flange, 5/8-11

Note: (Torque to 50-70 ft/lbs., 67.7-94.9 Nm)

$10.99

$

In Stock, Qty 6

0

0100

Simplicity 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0180

FRAME

$

$

Not available

0190

Simplicity 1759842BMYP

SUPPORT, Front Footrest, RH

$39.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1758690YP

SUPPORT, Rear Frame

$36.99

$

Usually ships in 2-12 days

0

0220

Simplicity 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 5

0

0230

Simplicity 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 14

0

0240

Simplicity 1759841BMYP

SUPPORT, Front Footrest, LH

$37.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1960035SM

WASHER, 5/8

$4.49

$

In Stock, only 2 left!

0

0290

Simplicity 2860744SM

CAPSCREW, Hex Head, 5/8-11 x 3 1/4

$8.49

$

Usually ships in 2-12 days

0

0300

Simplicity 1738051YP

LINK, Drag (with Bearing), 5/16

$60.99

$

In Stock, Qty 12

0

0320

Simplicity 1736404AYP

BRAKE PEDAL ASSEMBLY
(Superseded to 772383)

$98.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1735595YP

LATCH, Brake Lock

$6.99

$

Usually ships in 2-12 days

0

0335

Simplicity 7014296YP

WASHER, Shim

$4.49

$

In Stock, only 4 left!

0

0340

Simplicity 703851

BOLT, Shoulder, 5/16-18 x 1 1/8

$5.49

$

In Stock, only 1 left!

0

0350

Simplicity 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 1 left!

0

0360

Simplicity 1736714AYP

FORWARD PEDAL ASSEMBLY

$89.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1727246SM

PEDAL, Reverse

$20.99

$

Usually ships in 2-12 days

0

0380

Simplicity 703446

BOLT, Carriage, 5/16-18 X 1 1/4, GR5

$4.49

$

In Stock, Qty 5

0

0390

Simplicity 1728024SM

SPACER, Foot Pedal

$4.99

$

Usually ships in 2-12 days

0

0410

Simplicity 885591YP

BRACKET, Pedal Pivot

$22.99

$

Usually ships in 2-12 days

0

0420

Simplicity 1727911ASM

PLATE, Bearing

$12.99

$

Usually ships in 2-12 days

0

0430

Simplicity 1727282ASM

SUPPORT, Battery 12 GA
(Superseded to 1727282SM)

$

$

Not available

0470

Simplicity 1737957YP

LIFT SHAFT ASSEMBLY

$59.99

$

Usually ships in 2-12 days

0

0490

Simplicity 1761009YP

BRACKET, Sector Support

$35.99

$

Usually ships in 2-12 days

0

0500

Simplicity 1751110YP

GEAR, Steering

$34.99

$

In Stock, Qty 20+

0

0510

Simplicity 1761011CJYP

PLATE, Sector Gear

$6.99

$

In Stock, only 2 left!

0

0530

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0540

Simplicity 1727903ASM

SUPPORT, Transmission
(Superseded to 1727903SM)

$10.99

$

In Stock, Qty 12

0

0710

Simplicity 703570

CAPSCREW, Hex Head, 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 7

0

0720

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

0730

Simplicity 704067

NUT, 5/16-18, Hex Flange, Center Lock

Note: (Torque to 12-17 ft/lbs)

$3.99

$

In Stock, Qty 14

0

0740

Refer to: Front Axle Group

$

$

Not available

1060

Simplicity 1761010YP

SUPPORT, Steering

$28.99

$

In Stock, Qty 8

0
