2691454-01 - Simplicity Regent 38" Lawn Tractor, 22hp Briggs & Stratton Seat Deck & Fuel Tank Group Parts Diagram

Regent 38" Lawn Tractor, 22hp Briggs & Stratton

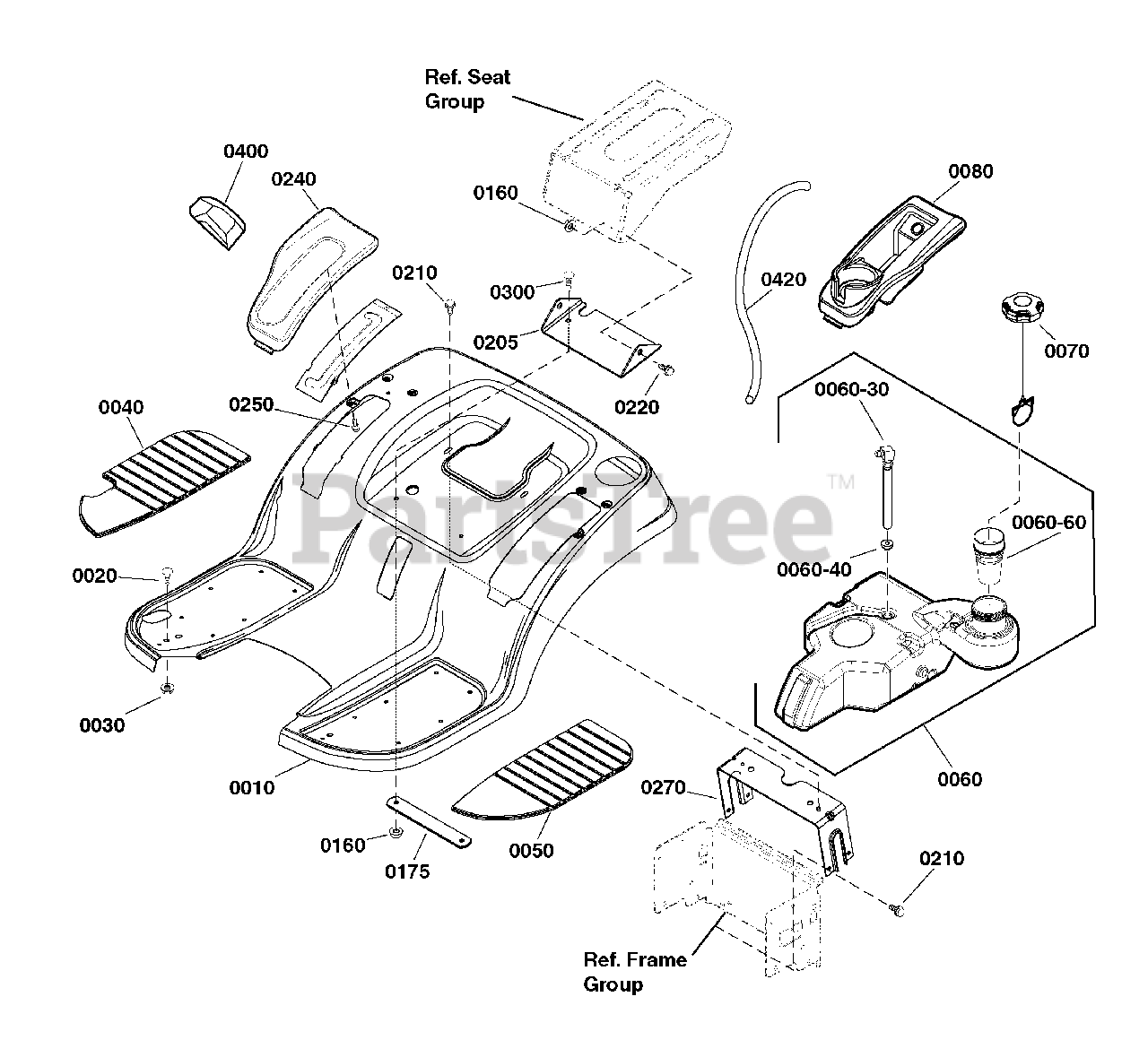

Seat Deck & Fuel Tank Group Parts Diagram

  • Title
0010

Simplicity 1727264CSM

DECK, Seat w/Footrests (Orange)

$530.99

$

Usually ships in 2-12 days

0

0010

$542.99

$

Usually ships in 2-12 days

0

0020

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0030

Simplicity 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0040

Simplicity 1728007SM

PAD, Footrest, R.H.

$20.99

$

In Stock, only 1 left!

0

0050

Simplicity 1728006SM

PAD, Footrest, L.H.

$21.99

$

In Stock, only 1 left!

0

0060

$311.99

$

Usually ships in 2-12 days

0

0060-30

Simplicity 1736609YP

FITTING & HOSE ASSEMBLY, Fuel Tank

$24.99

$

In Stock, only 1 left!

0

0060-40

Simplicity 1654930SM

BUSHING, Fuel Tank

$7.99

$

In Stock, Qty 20+

0

0060-60

DROP TUBE

Note: (Not Serviceable)

$

$

Not available

0070

$48.99

$

In Stock, Qty 6

0

0080

$32.99

$

Usually ships in 2-12 days

0

0160

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0175

Simplicity 1759177CJYP

BRACKET, Support, Seat Pivot

$16.99

$

Usually ships in 2-12 days

0

0205

Simplicity 1757755BMYP

SUPPORT, Seat Pivot

$60.99

$

In Stock, only 1 left!

0

0210

Simplicity 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, only 3 left!

0

0220

Simplicity 703851

BOLT, Shoulder, 5/16-18 x 1 1/8

$5.49

$

In Stock, only 1 left!

0

0240

$31.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1960536SM

CAPSCREW, Hex Washer Head, Plastite, 1/4 x 1/2

$4.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1731310SM

SUPPORT, Seat Deck

$36.99

$

Usually ships in 2-12 days

0

0300

Simplicity 704065

BOLT, Carriage Short Neck, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 6

0

0400

Simplicity 1722302SM

GRIP, Black

$8.49

$

In Stock, Qty 10

0

0420

Simplicity 771962

HOSE, Vapor

Note: (Cut to Length)

$

$

Currently unavailable

0440

Simplicity 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0
