2691454-00 - Simplicity Regent 38" Lawn Tractor, 22hp Briggs & Stratton 38" (96cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

Regent 38" Lawn Tractor, 22hp Briggs & Stratton

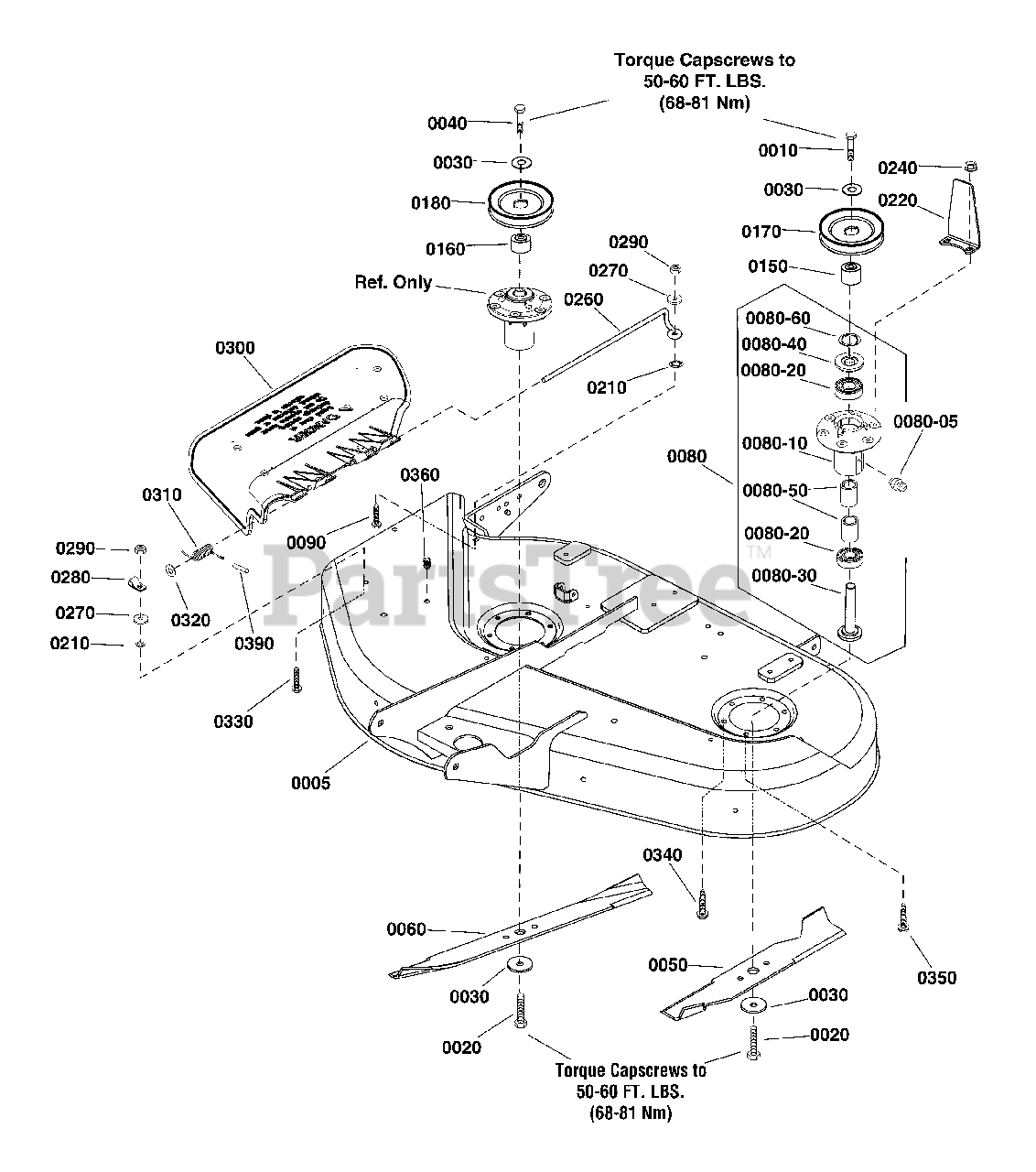

38" (96cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0005

Simplicity 1687955

KIT, Mower Deck w/Decals, 38"

$731.99

$

Usually ships in 2-12 days

0

0010

Simplicity 705877

CAPSCREW, Hex Head, 7/16-14 x 2 1/2

$7.49

$

In Stock, only 2 left!

0

0020

Simplicity 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 16

0

0030

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0040

Simplicity 705424

CAPSCREW, Hex Head, 7/16-14 X 1 3/4
(Superseded to 703171)

$3.99

$

In Stock, Qty 6

0

0050

Simplicity 1704856ASM

BLADE, Mower, 16-1/8", LH

$24.99

$

In Stock, Qty 20+

0

0060

Simplicity 1704101A

BLADE, Mower 22-1/4
(Superseded to 1716695ASM)

$29.99

$

In Stock, Qty 20+

0

0080

Simplicity 1760726

ARBOR ASSEMBLY

Note: (*See footnote)

$

$

Currently unavailable

0080-05

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0080-10

Simplicity 1760371YP

HOUSING, w/Lube Fitting

$76.99

$

In Stock, only 1 left!

0

0080-20

Simplicity 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0080-30

Simplicity 1755472YP

SHAFT, Spindle

$

$

Not available

0080-40

Simplicity 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, only 3 left!

0

0080-50

Simplicity 1735328YP

SPACER, Bearing

$6.49

$

In Stock, only 3 left!

0

0080-60

Simplicity 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0090

Simplicity 1960698SM

BOLT, Round Head, Short Neck, 1/4-20 X 1
(Superseded to 703584)

$3.99

$

In Stock, Qty 9

0

0150

Simplicity 1759940YP

SPACER, Upper Drive

$16.99

$

In Stock, only 1 left!

0

0160

Simplicity 1758623YP

SPACER, Hub

$

$

Not available

0170

Simplicity 1732950SM

PULLEY

$20.99

$

In Stock, only 1 left!

0

0180

Simplicity 1732953SM

PULLEY

$31.99

$

In Stock, only 1 left!

0

0210

Simplicity 703826

NUT, Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0220

Simplicity 1759808BMYP

UPSTOP

$

$

Not available

0240

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0260

Simplicity 1706709SM

ROD, Deflector

$8.49

$

In Stock, Qty 20+

0

0270

Simplicity 703229

WASHER, 1/4 x 27/32

$4.49

$

In Stock, Qty 8

0

0280

Simplicity 1704873SM

CLAMP, Wire, 5/16 Diameter

$4.49

$

In Stock, Qty 20+

0

0290

Simplicity 703232

NUT, Hex Lock, 1/4-20, ESNA

$4.49

$

In Stock, Qty 20+

0

0300

Simplicity 1705449SM

DEFLECTOR, Discharge

$122.99

$

In Stock, only 2 left!

0

0310

Simplicity 1759750YP

SPRING, Deflector

$8.49

$

In Stock, Qty 20+

0

0320

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 9

0

0330

Simplicity 703584

BOLT, Carriage, 1/4-20 x 1

$3.99

$

In Stock, Qty 9

0

0340

Simplicity 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0350

Simplicity 2860678SM

CAPSCREW, Taptite R, 5/16-18 x 1-3/4

$4.49

$

In Stock, only 2 left!

0

0360

Simplicity 7046780

PLUG, Hole, Polyethylene
(Superseded to 7046780SM)

$4.99

$

Usually ships in 2-12 days

0

0390

Simplicity 1723323SM

CAP, Spring End

$4.99

$

In Stock, only 1 left!

0
