2691425-00 (12A-EPH7E672) - Murray 21" Self-Propelled Walk-Behind Mower (2017) Drive Group Parts Diagram

21" Self-Propelled Walk-Behind Mower

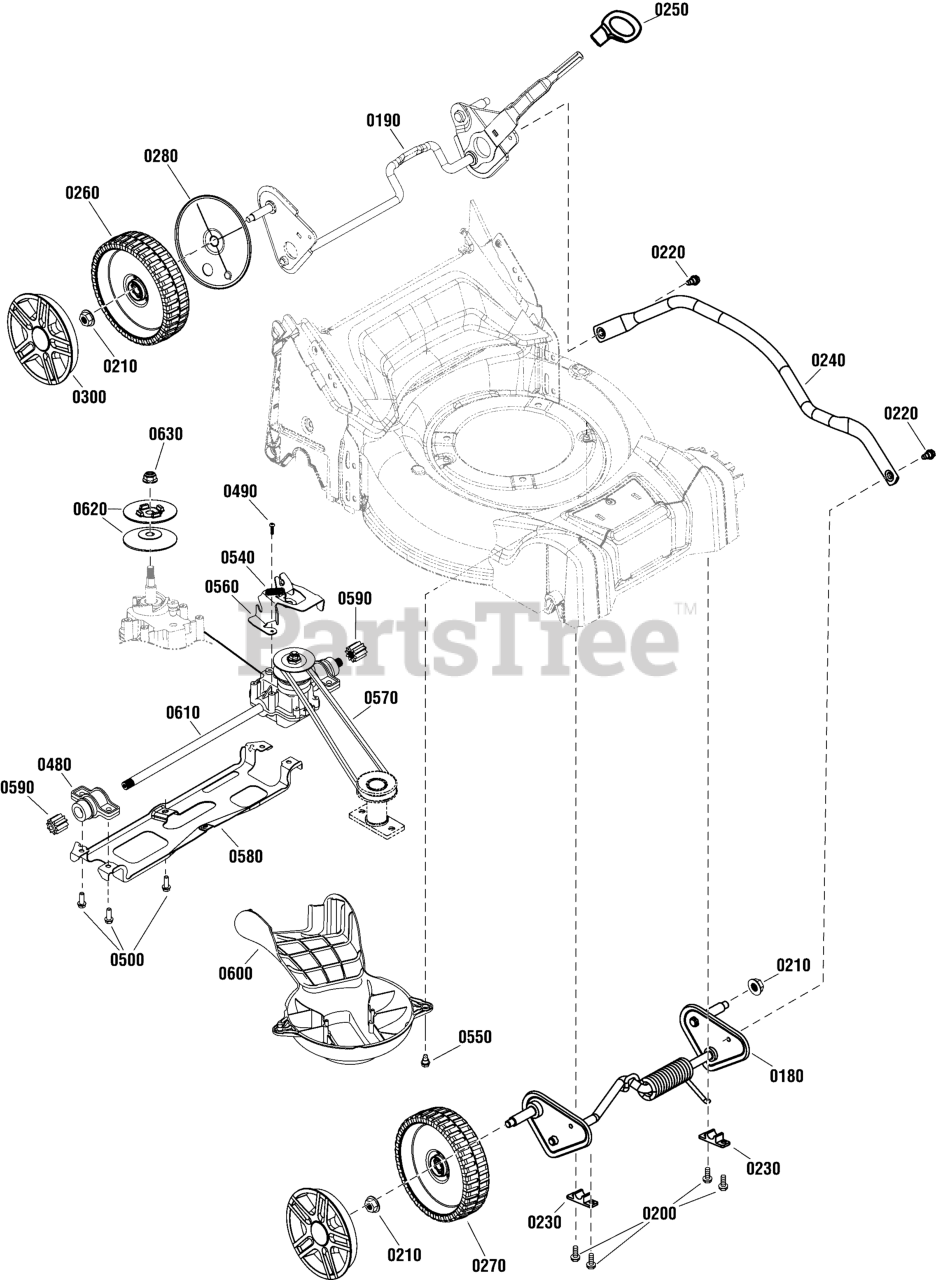

Drive Group Parts Diagram

  • Title

0180

Murray 704819

AXLE, Front

$

$

Currently unavailable

0190

Murray 704818

AXLE, Rear

$

$

Currently unavailable

0200

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

0210

Murray 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0220

Murray 703714

SCREW, Shoulder, 1/4-20 x 1/2

$

$

Currently unavailable

0230

Murray 703524

BUSHING, Bearing, Front Crossbar

$10.99

$

Usually ships in 2-12 days

0

0240

Murray 704707

TUBE

$

$

Currently unavailable

0250

Murray 1761290YP

KNOB, Green

$

$

Currently unavailable

0270

Murray 704805

WHEEL, Front

$

$

Currently unavailable

0260

Murray 704802

WHEEL, Drive

$

$

Currently unavailable

0280

Murray 703503

DUST COVER, Wheel

$18.99

$

Usually ships in 2-12 days

0

0290

Murray 704738

HUBCAP, Front

$

$

Currently unavailable

0300

Murray 704737

HUBCAP, Rear

$

$

Currently unavailable

0480

Murray 703469

ASSEMBLY, Bearing

$11.99

$

In Stock, only 1 left!

0

0490

Murray 703479

SCREW, Hex Washer Head, .159 x .43

$7.99

$

In Stock, only 2 left!

0

0500

Murray 7900023SM

CAPSCREW, Hex Head Flange Taptite, 1/4-15 X 1-1/4
(Superseded to 1751399YP)

$4.49

$

In Stock, only 2 left!

0

0540

Murray 703516

SPRING, Extension, 2.405

$7.99

$

Usually ships in 2-12 days

0

0550

Murray 703714

SCREW, Shoulder, 1/4-20 x 1/2

$

$

Currently unavailable

0560

Murray 704694

BRACKET

$

$

Currently unavailable

0570

Murray 704702

BELT

$

$

Currently unavailable

0580

Murray 703542

BRACKET, Rear Support

$26.99

$

Usually ships in 2-12 days

0

0590

Murray 704782

GEAR, 9 Tooth

$

$

Currently unavailable

0600

Murray 704814

COVER, Rear

$

$

Currently unavailable

0610

Murray 1761289YP

TRANSMISSON

$

$

Currently unavailable

0620

Murray 704698

PULLEY HALF

$

$

Currently unavailable

0630

Murray 704783

NUT, Lock

$

$

Currently unavailable
