2691366-00 - Simplicity Regent 38" Lawn Tractor, 22hp Briggs & Stratton 38" (96cm) Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

Regent 38" Lawn Tractor, 22hp Briggs & Stratton

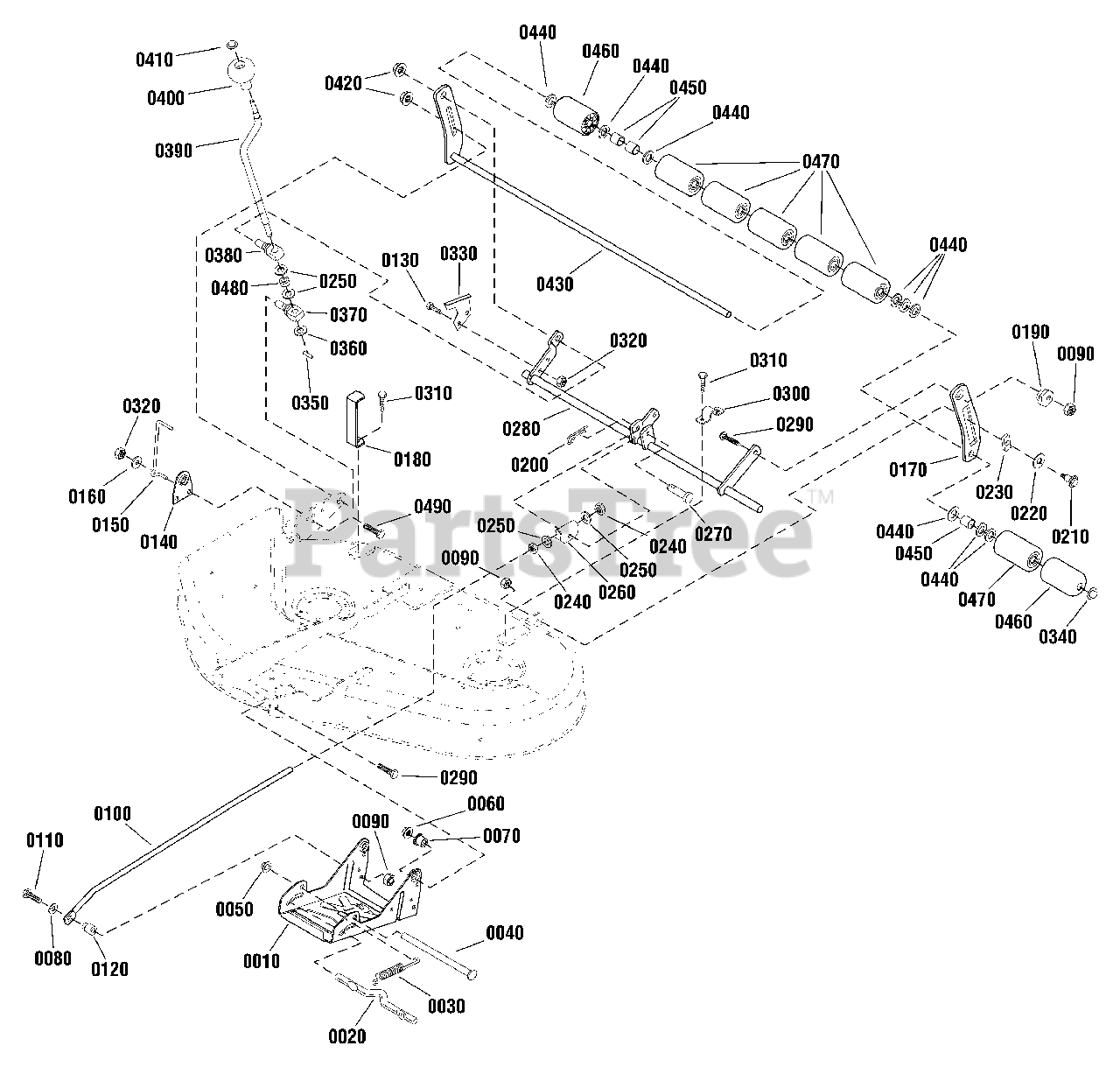

38" (96cm) Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

  • Title

0010

Simplicity 1720044ASM

HITCH, Mower
(Superseded to 1760192AYP)

$155.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1715759SM

ROD, 3/8

$7.99

$

In Stock, Qty 11

0

0030

Simplicity 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 20+

0

0040

Simplicity 1713578SM

ROD, 1/2

$15.99

$

In Stock, only 1 left!

0

0050

Simplicity 1960519SM

NUT, Push 1/2
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

0060

Simplicity 1960687SM

NUT, Hex Flange, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0070

Simplicity 1732443SM

SPACER

$5.99

$

In Stock, Qty 20+

0

0080

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0090

Simplicity 2860681SM

NUT, Hex Toplock Spiral Lock Flange, 3/8-16

$4.49

$

In Stock, Qty 7

0

0100

Simplicity 1729625SM

ROD, 1/2-13 x 5.3

$43.99

$

In Stock, only 1 left!

0

0110

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 13

0

0120

Simplicity 1706644SM

SPACER, 3/8 x 3/4 x 15/16

$8.49

$

In Stock, only 2 left!

0

0130

Simplicity 1923325SM

CAPSCREW, 5/16-18 x 7/8, G5
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

0140

Simplicity 1704115ASM

PLATE, Support

$11.99

$

In Stock, only 1 left!

0

0150

Simplicity 1732092SM

ROD, 1/4

$11.99

$

In Stock, only 1 left!

0

0160

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

0170

Simplicity 1733117ASM

BAR, Roller

$18.99

$

In Stock, only 1 left!

0

0180

Simplicity 1733226ASM

UPSTOP

$20.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 16

0

0200

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0210

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

0220

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

0230

Simplicity 1677507SM

SLIDE

$6.99

$

In Stock, only 3 left!

0

0240

Simplicity 1913744SM

NUT, Hex Jam 1/2-13

$4.99

$

In Stock, Qty 19

0

0250

Simplicity 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0260

Simplicity 1704081ASM

TRUNNION

$7.99

$

Usually ships in 2-12 days

0

0270

Simplicity 2118053SM

PIN, Round Head, 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

0280

Simplicity 1733118ASM

SHAFT, Rocker
(Superseded to 1759047BMYP)

$110.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1931352SM

BOLT, Carriage, 3/8-16 x 1 1/2, G5

$4.49

$

In Stock, only 3 left!

0

0300

Simplicity 1665374SM

STRAP, Roller
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

0310

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0320

Simplicity 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0330

Simplicity 1704116ASM

BRACKET, Height of Cut
(Superseded to 1704116BMYP)

$11.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1960520SM

NUT, Push 5/8
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

0350

Simplicity 2816001SM

PIN, Spring

$4.49

$

In Stock, Qty 11

0

0360

Simplicity 1704097SM

WASHER, Detent

$4.49

$

In Stock, Qty 11

0

0370

Simplicity 1733257SM

TRUNNION, 1-1/4

$28.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1733258SM

TRUNNION, 1-1/4

$

$

Not available

0390

Simplicity 1719901SM

CRANK, Height Adjusting

$48.99

$

In Stock, only 1 left!

0

0400

Simplicity 1714084SM

KNOB, Spinner

$12.99

$

In Stock, only 1 left!

0

0410

Simplicity 1960093SM

NUT, Push Pal 5/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

0420

Simplicity 1930644SM

NUT, Hex Flange 1/2-13 Two-Way Lock

$3.49

$

In Stock, Qty 6

0

0430

Simplicity 1733121ASM

SHAFT, Roller

$

$

Not available

0440

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

0450

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

0460

Simplicity 1722036SM

ROLLER, Rounded

$7.99

$

In Stock, Qty 20+

0

0470

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

0480

Simplicity 1716953SM

SPACER

$13.99

$

In Stock, only 2 left!

0

0490

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1 1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0
