2691354-00 - Simplicity Cavalier 84cm Rear-Engine Riding Mower, 15.5hp Lift Group Parts Diagram

Cavalier 84cm Rear-Engine Riding Mower, 15.5hp

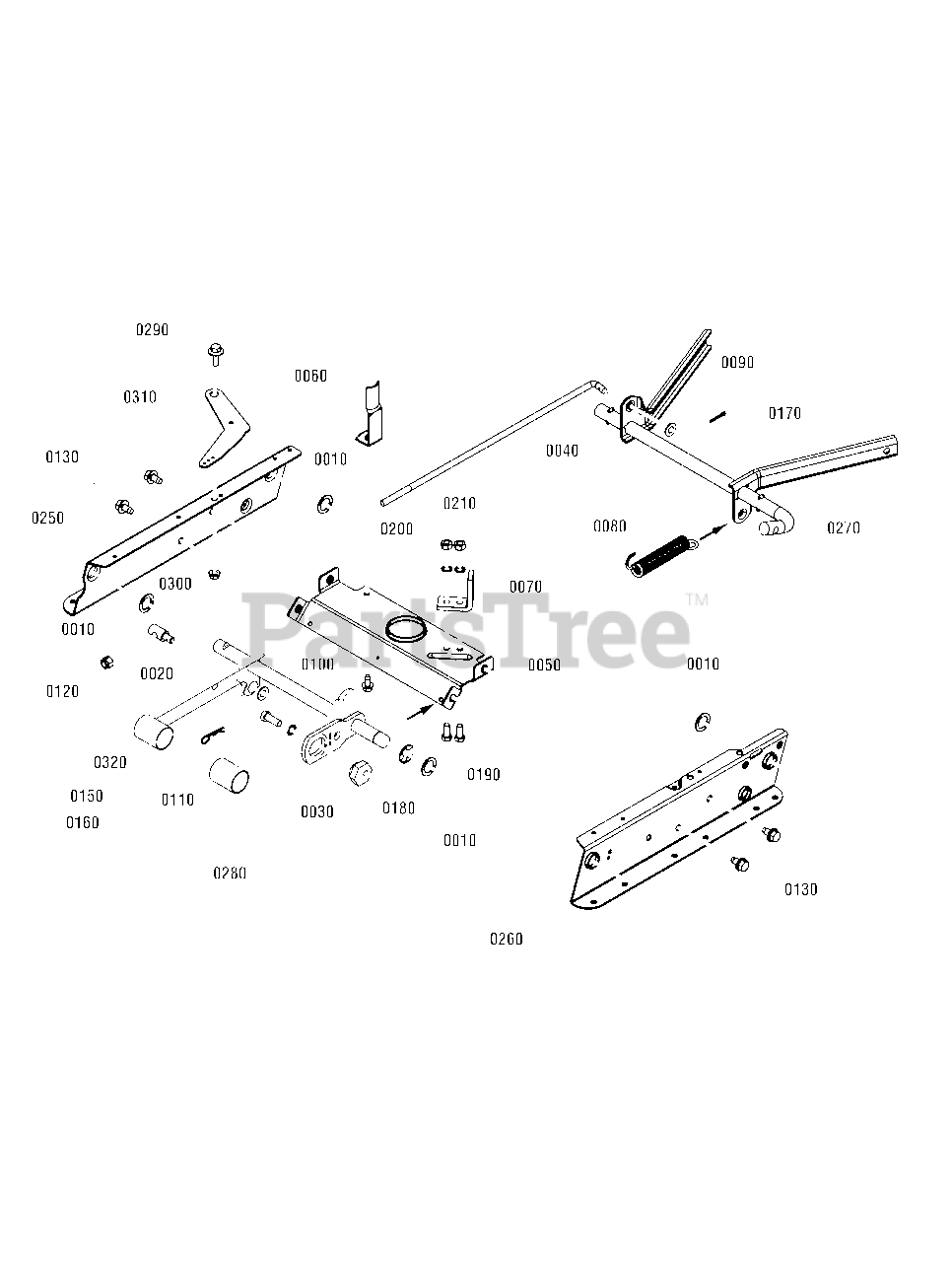

Lift Group Parts Diagram

  • Title

0010

Simplicity 7010935SM

WASHER, .77 x 1.13 x .06, Flat

$3.99

$

In Stock, Qty 20+

0

0020

Simplicity 7011231SM

SWIVEL, 3/8 w/thru hole, Special

$11.99

$

Usually ships in 2-12 days

0

0030

Simplicity 7015447YP

ECCENTRIC, Leveling

$22.99

$

Usually ships in 2-12 days

0

0040

Simplicity 7016122YP

ROD, Leveling (3/4-24 thread)

$10.99

$

Usually ships in 2-12 days

0

0050

Simplicity 7031838YP

BRACE, Top Rail
(Superseded to 7031838BMYP)

$37.99

$

Usually ships in 2-12 days

0

0060

Simplicity 7031855YP

GUIDE, Belt

$7.49

$

In Stock, only 1 left!

0

0070

Simplicity 706321

ANCHOR

$6.99

$

Usually ships in 2-12 days

0

0080

Simplicity 7046163YP

SPRING, Assist

$10.99

$

Usually ships in 2-12 days

0

0090

Simplicity 703590

WASHER, 3/8 (.406 X .816 X .65), Flat, Zinc/Clear

$3.99

$

In Stock, Qty 18

0

0100

Simplicity 703949

SCREW, 5/16-18 x 5/8 Hex Washer Self-Tap, BP

$3.99

$

In Stock, only 3 left!

0

0110

Simplicity 703930

WASHER, 3/8 Internal Tooth Lock, BZ

$4.49

$

In Stock, only 1 left!

0

0120

Simplicity 703901

NUT, 3/8-24 Hex Nyloc ZP

$3.49

$

In Stock, Qty 5

0

0130

Simplicity 7091198SM

SCREW, 3/8-16 x 5/8 Hex Washer Self-Tap, BP

$4.49

$

Usually ships in 2-12 days

0

0150

Simplicity 703300

PIN, Hair, 3/32 x 1-5/8, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0160

Simplicity 001X20MA

CAPSCREW, 3/8-24 x 1, Hex Head, Zinc

$4.49

$

In Stock, only 4 left!

0

0170

Simplicity 703958

PIN, 1/8 X 0.75, Cotter, Zinc/Clear

$4.49

$

In Stock, only 4 left!

0

0180

Simplicity 0011X3MA

E-RING, .750D x .050T

$5.49

$

In Stock, Qty 15

0

0190

Simplicity 703336

SCREW, 5/16-24 x 3/4 Hex Head Cap, GR 5

$4.49

$

In Stock, Qty 5

0

0200

Simplicity 703587

WASHER, 5/16, Internal Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0210

Simplicity 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0250

Simplicity 7301328YP

RAIL, Deck Lift RH

$35.99

$

Usually ships in 2-12 days

0

0260

Simplicity 7301329YP

RAIL, Deck Lift LH

$35.99

$

Usually ships in 2-12 days

0

0270

Simplicity 7400324YP

WELDMENT, Rear Lift Arm, RER-RE

$106.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1759615YP

WELDMENT, Front Lift Arm, Adjustable

$

$

Not available

0290

Simplicity 1716654SM

BOLT, 5/16-18 X 0.75, .50 Shoulder, G5 YZ

$5.49

$

In Stock, only 2 left!

0

0300

Simplicity 704067

NUT, 5/16-18 Hex Flange Two-Way Lk Ga

$3.99

$

In Stock, Qty 20+

0

0310

Simplicity 7301366YP

PLATE, Brake OPC

$7.49

$

Usually ships in 2-12 days

0

0320

Simplicity 1960103SM

WASHER, 3/8 Flat, Black

$4.49

$

In Stock, Qty 7

0
