2691354-00 - Simplicity Cavalier 84cm Rear-Engine Riding Mower, 15.5hp Guard Group (7503142) Parts Diagram

Cavalier 84cm Rear-Engine Riding Mower, 15.5hp

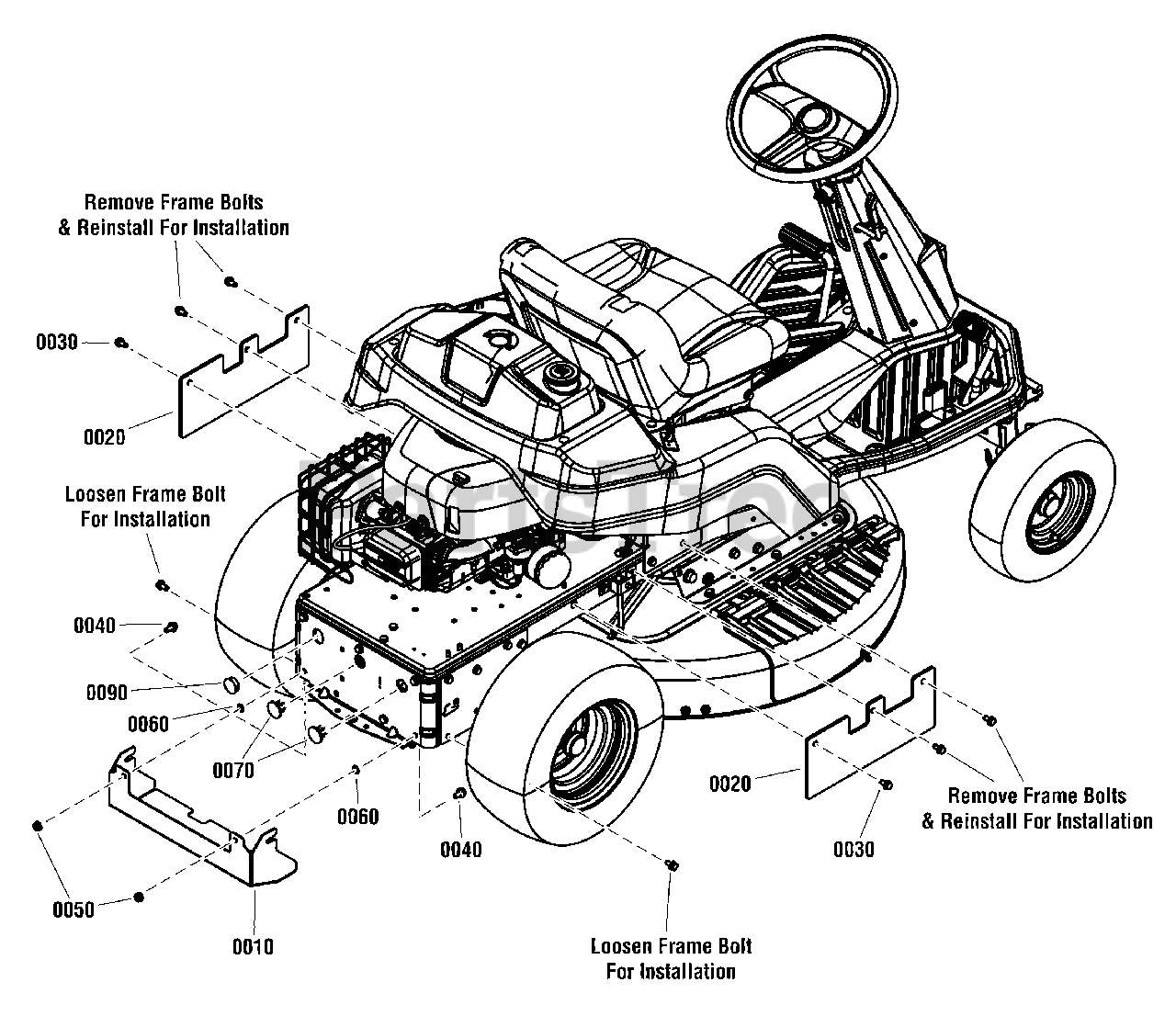

Guard Group (7503142) Parts Diagram

  • Title
0010

Simplicity 706115

COVER, Bottom

$72.99

$

Usually ships in 2-12 days

0

0020

Simplicity 706116

GUARD, Frame, L.H.

$9.99

$

Usually ships in 2-12 days

0

0030

Simplicity 703949

SCREW, Washer, 5/16-18 x 5/8

$3.99

$

In Stock, only 3 left!

0

0040

Simplicity 703823

BOLT, 5/16-18 x 5/8

$3.99

$

In Stock, Qty 5

0

0050

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0060

Simplicity 703297

RETAINER, 5/16

$3.99

$

In Stock, Qty 20+

0

0070

Simplicity 7024998YP

PLUG, 1 Hole

$4.49

$

Usually ships in 2-12 days

0

0090

Simplicity 706118

PLUG, Hole, 1.093/1.125

$3.49

$

Usually ships in 2-12 days

0
