2691354-00 - Simplicity Cavalier 84cm Rear-Engine Riding Mower, 15.5hp Engine Group (7503308) Parts Diagram

Cavalier 84cm Rear-Engine Riding Mower, 15.5hp

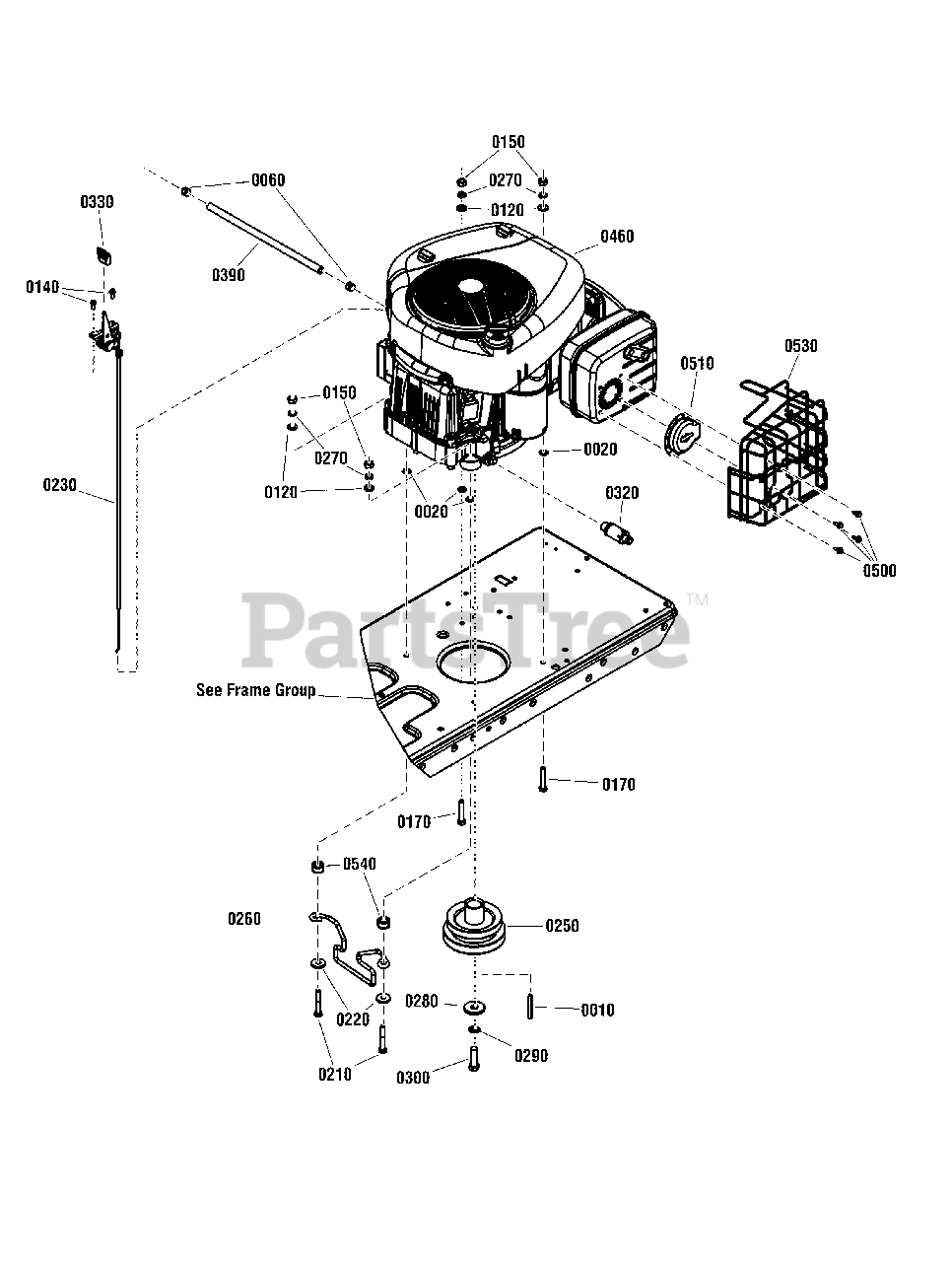

Engine Group (7503308) Parts Diagram

  • Title

0010

Simplicity 703890

KEY, 1/4 Square x 2 Long

$4.99

$

In Stock, Qty 7

0

0020

Simplicity 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0060

Simplicity 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

0120

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0140

Simplicity 704060

SCREW, 10-24 x 1/2" Hex Washer Self-Tap, Torx, ZC/CL

$3.49

$

In Stock, Qty 11

0

0150

Simplicity 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0170

Simplicity 704288

SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5 YZ

$4.99

$

Usually ships in 2-12 days

0

0210

Simplicity 704332

SCREW, 5/16-18X2-1/4, Hex Head Washer, BK/ZC

$23.99

$

Usually ships in 2-12 days

0

0220

Simplicity 703298

WASHER, 5/16 (.34 ID X 1 OD X .13 THK) GR5, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0230

Simplicity 7105872YP

ASSEMBLY, Throttle Control, 27.6" Long, 1.6" Throw

$25.99

$

Usually ships in 2-12 days

0

0250

Simplicity 709947

PULLEY, Double Stack, 4.0" OD & 4.5" OD

$109.99

$

Usually ships in 2-12 days

0

0260

Simplicity 7106336BMYP

GUIDE, Belt, 1/4" Wire, 1" X 4" ID, 3.30" Tall, 7.66" Mount

$17.99

$

Usually ships in 2-12 days

0

0270

Simplicity 703116

WASHER, 5/16 Split Lock, YZ

$3.49

$

In Stock, Qty 20+

0

0280

Simplicity 704053

WASHER, .468 ID X 1.5 OD X .19 THK, Special, Zinc/Clear

$9.99

$

Usually ships in 2-12 days

0

0290

Simplicity 704007

WASHER, 7/16, Split-Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0300

Simplicity 720205

BOLT, HEX, .43-20X1.50 Z-NYL
(Superseded to 01X140MA)

$5.49

$

In Stock, Qty 15

0

0320

Simplicity 7027972SM

ASSEMBLY, Oil Drain Valve, 2.775" Long

$24.99

$

In Stock, Qty 9

0

0330

Simplicity 7106008YP

KNOB, Molded Paddle, Black

$5.49

$

Usually ships in 2-12 days

0

0390

Simplicity 7200116YP

HOSE, Fuel, Low Perm, 1/4" ID X 14"

$8.99

$

In Stock, only 1 left!

0

0460

Simplicity 31R977-0035-B1

* ENGINE, Briggs & Stratton 4195 Series Inkek, Single, 31R977-0035-B1

$

$

Not available

0500

Simplicity 690367

* SCREW, #8-18X.53, Tapping Washer HD (B&S Part)

$3.99

$

Usually ships in 2-12 days

0

0510

Simplicity 795036

* DEFLECTOR, Muffler, 3.062 Dia. 10 Hole Pattern (B&S Part)

$8.49

$

In Stock, only 1 left!

0

0530

Simplicity 706336

* GUARD, Muffler, Welded Wire (B&S Part)

$34.99

$

Usually ships in 2-12 days

0

0540

Simplicity 703933

SPACER, .700 OD x .480 ID x .380 L, ZC/CL

$4.49

$

Usually ships in 2-12 days

0
