2691354-00 - Simplicity Cavalier 84cm Rear-Engine Riding Mower, 15.5hp Console & Fuel Tank Group Parts Diagram

Cavalier 84cm Rear-Engine Riding Mower, 15.5hp

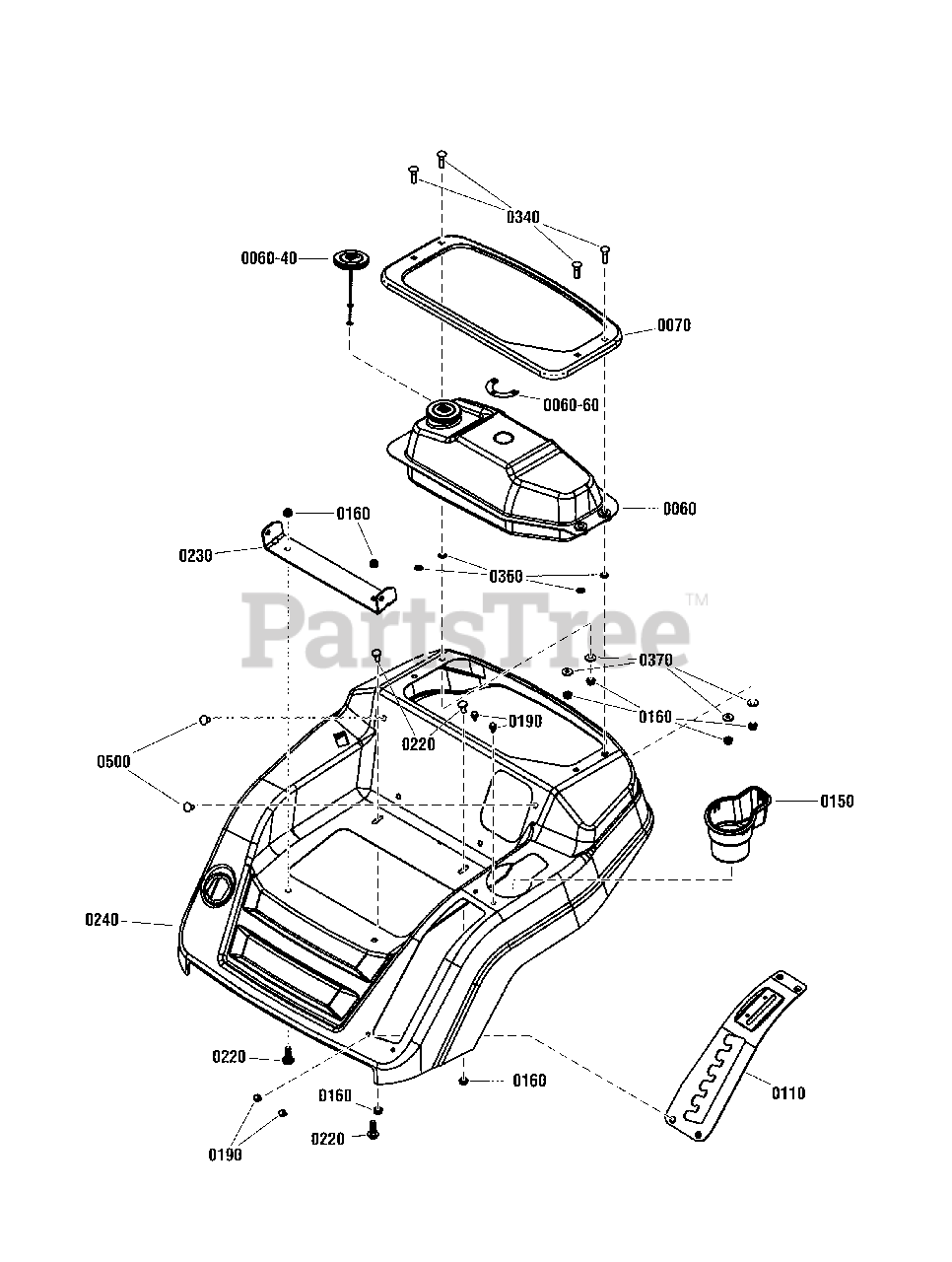

Console & Fuel Tank Group Parts Diagram

  • Title

0060

Simplicity 7106250YP

ASSEMBLY, Fuel Tank w/guage (Includes Decal)

$165.99

$

Usually ships in 2-12 days

0

0060-40

Simplicity 1751942YP

CAP FUEL, Vented

$16.99

$

Usually ships in 2-12 days

0

0060-60

Simplicity 706328

DECAL, Fuel Gauge, RER

$

$

Not available

0070

Simplicity 1758785YP

TANK, Trim

$38.99

$

Usually ships in 2-12 days

0

0110

Simplicity 7301262BMYP

PLATE, HOC Detent, Black

$27.99

$

Usually ships in 2-12 days

0

0150

Simplicity 7105766YP

CUP HOLDER

$15.99

$

Usually ships in 2-12 days

0

0160

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0190

Simplicity 703953

SCREW, 1/4-20 X 5/8, Torx Pan Head Self-Tapping, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0220

Simplicity 703185

BOLT, 5/16-18X3/4 GR5, Carriage, YZ

$3.49

$

In Stock, Qty 20+

0

0230

Simplicity 706334

BRACKET, Seat Pivot, 12.41" W, 9.5" W .344" Sq Holes, Black

$21.99

$

Usually ships in 2-12 days

0

0240

Simplicity 7301427CYP

CONSOLE, Seat/Hydro Control, Orange

$296.99

$

Usually ships in 2-12 days

0

0340

Simplicity 703446

BOLT, 5/16-18 X 1.25, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 5

0

0360

Simplicity 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0370

Simplicity 703298

WASHER, 5/16 (.34 ID X 1 OD X .13 THK) GR5, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0500

Simplicity 1705115SM

PLUG, Hole (for .344 Square Hole)

$4.49

$

In Stock, only 1 left!

0
