2691354-00 - Simplicity Cavalier 84cm Rear-Engine Riding Mower, 15.5hp 33" Mower Assembly - EURO Parts Diagram

Cavalier 84cm Rear-Engine Riding Mower, 15.5hp

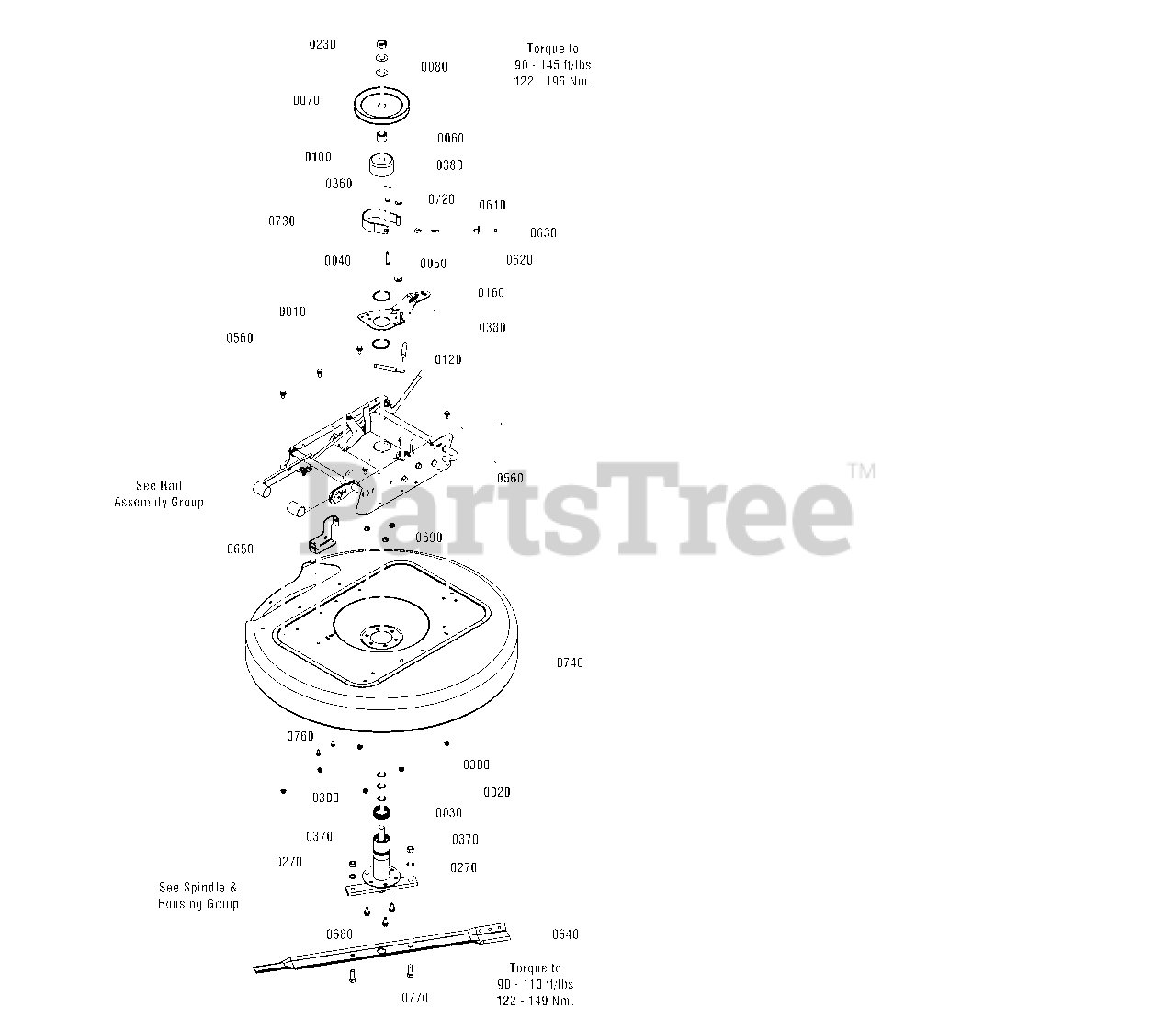

33" Mower Assembly - EURO Parts Diagram

  • Title

0010

Simplicity 7010740YP

RING, 2 External Retaining

$5.49

$

In Stock, only 2 left!

0

0020

Simplicity 7010935SM

WASHER, .77 x 1.13 x .06, Flat

$3.99

$

In Stock, Qty 20+

0

0030

Simplicity 7012670YP

RING, 2 ID x 3/4 High, Tolerance

$8.49

$

In Stock, Qty 6

0

0040

Simplicity 7014304YP

PIN, 1/4 x 1-5/8 Clevis

$4.49

$

Usually ships in 2-12 days

0

0050

Simplicity 7014314YP

SPACER, .31 I.D. x .39 O.D. x 1 Nylon

$4.99

$

In Stock, only 1 left!

0

0060

Simplicity 7015290YP

HUB, Pulley, PM

$6.49

$

In Stock, Qty 10

0

0070

Simplicity 7018781YP

PULLEY, Deck Spindle, 6.95 OD
(Superseded to 7018781BMYP)

$43.99

$

In Stock, Qty 9

0

0080

Simplicity 7032027SM

WASHER, 49/64x1-1/2x.06, Flat

$4.49

$

In Stock, Qty 7

0

0100

Simplicity 7035378YP

DRUM, Brake Spindle (3" OD, 1.6" Tall)

$11.99

$

In Stock, only 2 left!

0

0120

Simplicity 7036521YP

SPRING, Extension, 4 x 1/2 Diameter

$7.49

$

In Stock, Qty 5

0

0160

Simplicity 706001

WELDMENT, Idler Arm, RER

$27.99

$

Usually ships in 2-12 days

0

0230

Simplicity 7074467SM

NUT, 3/4-16 Hex Jam, GR 8

$4.49

$

In Stock, Qty 10

0

0270

Simplicity 7090509YP

WASHER, 1/2 Internal Tooth Lock, BZ

$4.49

$

In Stock, Qty 10

0

0300

Simplicity 690272MA

NUT, 5/16-18, Serated Lock Flange, GR5, Zinc/Clear

$

$

Not available

0360

Simplicity 71067MA

WASHER, 1/4, Flat, GR5 Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0370

Simplicity 7091939YP

NUT, 1/2-20 Hex, GR 5 ZP

$3.49

$

In Stock, Qty 20+

0

0380

Simplicity 331613MA

PIN, 3/32 X 3/4, GR5, Cotter, Zinc/Clear

$25.99

$

Usually ships in 2-12 days

0

0560

Simplicity 703823

BOLT, 5/16-18 x 5/8 Hex Flange lock, GR 5, YZ

$3.99

$

In Stock, Qty 5

0

0610

Simplicity 7014302YP

EYE-BOLT, 1/4-20 x 2-7/8 ZP

$4.99

$

In Stock, Qty 6

0

0620

Simplicity 7106120YP

T-NUT, 1/4-20 (Bent End)

$9.49

$

Usually ships in 2-12 days

0

0630

Simplicity 703127

NUT, 1/4-20, G5 Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0640

Simplicity 7018781YP

PULLEY, Deck Spindle, 6.95 OD
(Superseded to 7018781BMYP)

$43.99

$

In Stock, Qty 9

0

0650

Simplicity 7301280BMYP

BRACKET, Blade Engagement Cable

$18.99

$

Usually ships in 2-12 days

0

0680

Simplicity 703955

BOLT, 3/8-16X0.75, Serrated Flange, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 6

0

0690

Simplicity 703333

NUT, 3/8-16, Flanged Lock, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 20+

0

0720

Simplicity 703590

WASHER, 3/8 (.406 X .816 X .65), Flat, Zinc/Clear

$3.99

$

In Stock, Qty 19

0

0730

Simplicity 7503086YP

ASSEMBLY, Brake Band, RER, 10.12 X 1.25"

$35.99

$

In Stock, only 1 left!

0

0740

Simplicity 1687753YP

KIT, 33" Mower Housing, Orange w/Decals

$501.99

$

Usually ships in 2-12 days

0

0760

Simplicity B4300GS

SCREW, 1/4-20 X .500, Hex HD, Self-Tap, Zinc/Clear
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

0770

Simplicity 7090491YP

SCREW, 1/2-20 x 1-1/4" Hex Head Cap, GR5

$4.99

$

Usually ships in 2-12 days

0
