2691339-02 - Simplicity Conquest 52" Garden Tractor, 25hp Seat Deck Group Parts Diagram

Conquest 52" Garden Tractor, 25hp

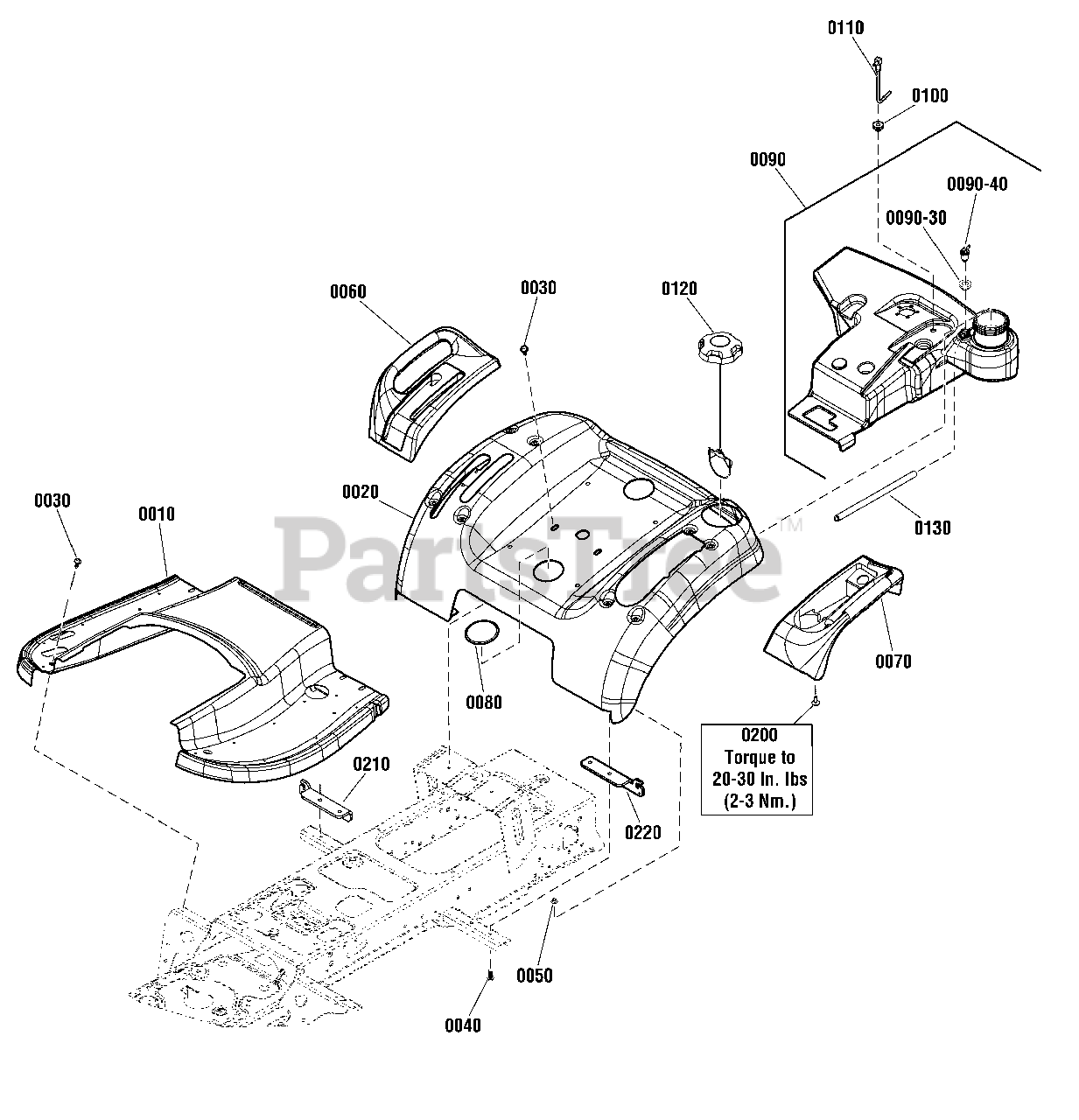

Seat Deck Group Parts Diagram

  • Title

0010

Simplicity 1722105CSM

TUNNEL

$481.99

$

In Stock, only 1 left!

0

0020

Simplicity 1722106CSM

DECK, Seat

$603.99

$

Usually ships in 2-12 days

0

0030

Simplicity 703949

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8

$3.99

$

In Stock, only 3 left!

0

0040

Simplicity 1930595SM

SCREW, Hex Flange, Whiz Lock, 5/16-18 x 1 1/4

$3.99

$

In Stock, Qty 5

0

0050

Simplicity 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0060

Simplicity 1722108SM

POD, RH
(Superseded to 1687790YP)

$103.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1729711SM

POD, With Cup Holder, LH
(Superseded to 1687789YP)

$103.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1722309SM

PLUG, Hole

$5.99

$

In Stock, Qty 11

0

0090

Simplicity 1751622YP

TANK, Fuel

$365.99

$

Usually ships in 2-12 days

0

0090-30

Simplicity 799624

GROMMET

$8.99

$

In Stock, Qty 15

0

0090-40

Simplicity 7104638YP

REMOTE VENT ASSY, No Valve

$

$

Not available

0100

Simplicity 1654930SM

BUSHING, Fuel Tank

$7.99

$

In Stock, Qty 20+

0

0110

Simplicity 1757609YP

TUBE, Fuel Pickup

$19.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1759036YP

FUEL CAP
(Superseded to 1761224YP)

$48.99

$

In Stock, Qty 6

0

0130

Simplicity 708734

HOSE, Vapor

$13.99

$

Usually ships in 2-12 days

0

0200

Simplicity 2860664SM

SCREW, Hex Sems Washer, Dog Point, 1/4-20 x.88

$5.99

$

In Stock, only 2 left!

0

0210

Simplicity 1727102ASM

HANGER, RH

$30.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1727103ASM

HANGER, LH

$24.99

$

Usually ships in 2-12 days

0
