2691339-02 - Simplicity Conquest 52" Garden Tractor, 25hp Engine Group - 25 Gross HP Briggs & Stratton Parts Diagram

Conquest 52" Garden Tractor, 25hp

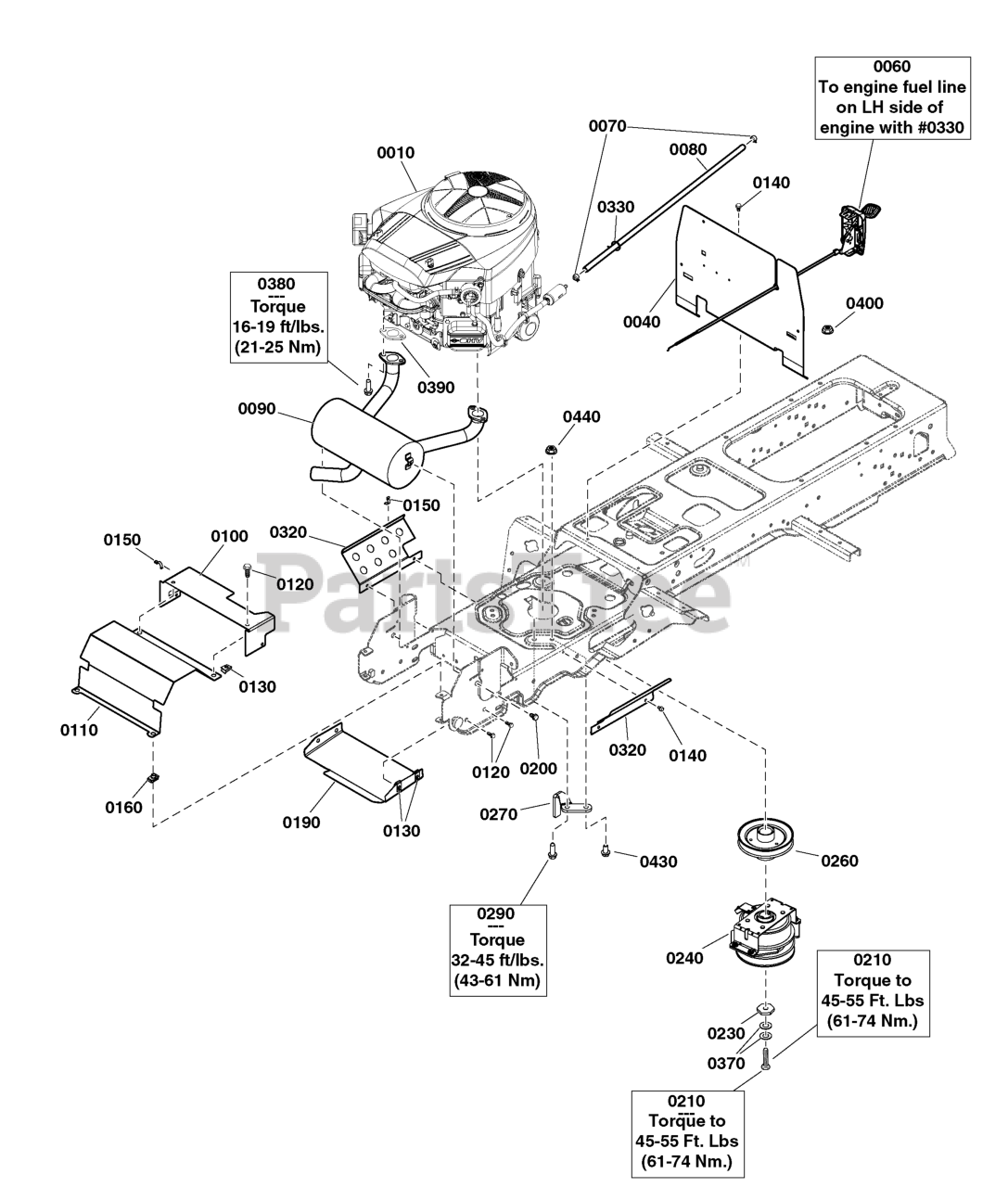

Engine Group - 25 Gross HP Briggs & Stratton Parts Diagram

  • Title

0010

Simplicity 44T977-0007-G1

* ENGINE, 25 Gross HP Briggs & Stratton, Twin Commercial

Note: ( Engine Model: 44T977-0007-G1 )

$

$

Not available

0040

Simplicity 1755854AYP

FIREWALL, Engine

$92.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1754915YP

THROTTLE

$59.99

$

In Stock, Qty 5

0

0070

Simplicity 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

0080

Simplicity 845503

LINE, Fuel

$35.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1721706SM

MUFFLER, Briggs & Stratton, INTEK Twin

$231.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1754704AYP

DUCT, Muffler

$38.99

$

In Stock, only 1 left!

0

0110

Simplicity 1754682AYP

DUCT, Muffler, Top

$51.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1960295SM

CAPSCREW, Hex Flange, Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

0130

Simplicity 705876

NUT, Speed, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 703583

SCREW, Taptite, 1/4 - 20 x 3/8

$4.99

$

In Stock, Qty 20+

0

0150

Simplicity 703176

CLIP, Wire

$3.49

$

Usually ships in 2-12 days

0

0160

Simplicity 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 2 left!

0

0190

Simplicity 1722414ASM

SHIELD, Muffler Bottom

$20.99

$

Usually ships in 2-12 days

0

0200

Simplicity 703985

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2

$4.49

$

In Stock, only 3 left!

0

0210

Simplicity 771023

CAPSCREW, Hex Head, Loctite, 7/16-20 x 3 1/2

$6.99

$

In Stock, only 2 left!

0

0230

Simplicity 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

0240

Simplicity 1760986YP

OGURA CLUTCH

$323.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$42.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1760323CJYP

CLUTCH, Anchor

$27.99

$

In Stock, only 1 left!

0

0290

Simplicity 704010

CAPSCREW, Hex Head, Taptite, 3/8-16 x 1-1/2

$4.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1722392ASM

SHIELD, Side, Heat

$10.99

$

Usually ships in 2-12 days

0

0330

Simplicity 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1960769YP

WASHER, Belleville

$4.99

$

In Stock, only 1 left!

0

0380

Simplicity 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

0390

Simplicity 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 5

0

0400

Simplicity 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0430

Simplicity 703955

BOLT, 3/8-16X0.75, Serrated Flange

$4.49

$

In Stock, Qty 6

0

0440

Simplicity 703333

NUT, 3/8-16, Flanged Lock, GR5

$4.99

$

In Stock, Qty 20+

0
