2691338-01 - Simplicity Conquest 50" Garden Tractor, 25hp Transmission Group - Tuff Torq K66 Parts Diagram

Conquest 50" Garden Tractor, 25hp

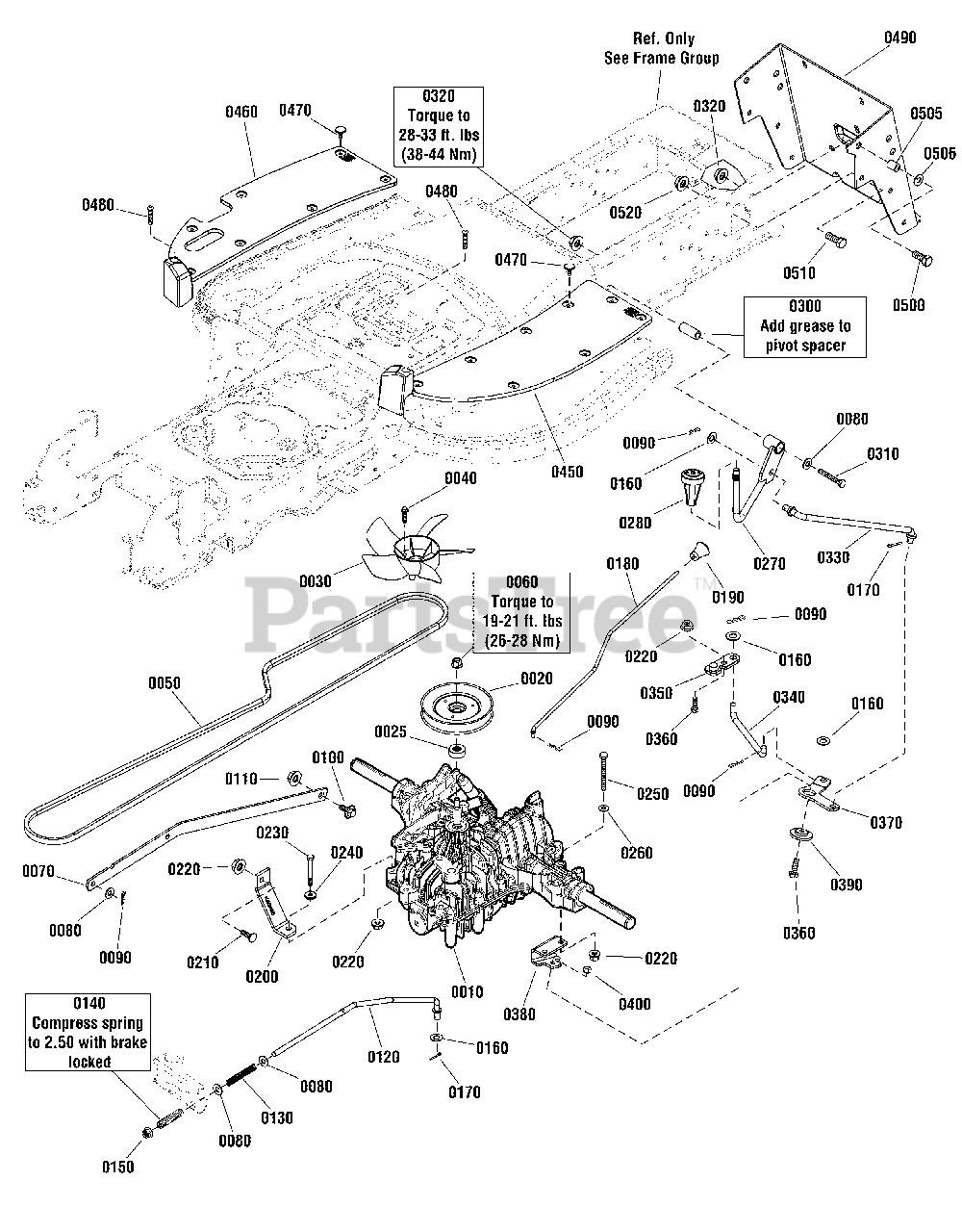

Transmission Group - Tuff Torq K66 Parts Diagram

  • Title

0010

Simplicity 706140

TRANSMISSION, Tuff Torq, K66

$2165.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1722194SM

PULLEY & HUB ASSEMBLY, Transmission

$86.99

$

In Stock, only 1 left!

0

0025

Simplicity 1755765YP

SPACER, Splined

$6.99

$

In Stock, only 1 left!

0

0030

Simplicity 1719233SM

FAN, 5 Blades, 3 Holes

$27.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1933958SM

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1-1/8

$4.49

$

In Stock, only 1 left!

0

0050

Simplicity 1721392SM

V-BELT, 94.05

$54.99

$

In Stock, Qty 20+

0

0060

Simplicity 1719968SM

NUT, Hex Flange, M10-1.5, Nylon Insert

$3.49

$

Usually ships in 2-12 days

0

0070

Simplicity 1754368AYP

ARM, Transmission Control

$24.99

$

Usually ships in 2-12 days

0

0080

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0090

Simplicity 1722460SM

HAIRPIN
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0100

Simplicity 1732426SM

BOLT, Shoulder, 5/16-18 x 1/2

$4.49

$

In Stock, only 1 left!

0

0110

Simplicity 704067

NUT, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0120

Simplicity 1755737YP

BRAKE ROD, Transmission

$26.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1722684SM

SPRING, Compression, 3-1/4" Long

$4.49

$

Usually ships in 2-12 days

0

0140

Simplicity 1729277SM

SPRING, Compression, 3-5/8" Long

$6.99

$

In Stock, only 1 left!

0

0150

Simplicity 1960687SM

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0160

Simplicity 1918267SM

WASHER, 15/32 x 15/16, Black

$3.99

$

In Stock, only 1 left!

0

0170

Simplicity 331613MA

PIN, Cotter

$25.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1756177YP

ROD, Tow Release

$12.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1723126SM

KNOB, 3 Sided Soft

$6.99

$

In Stock, only 2 left!

0

0200

Simplicity 1754643AYP

STRAP, Torque

$18.99

$

Usually ships in 2-12 days

0

0210

Simplicity 703800

BOLT, Carriage, 5/16-18 x 1 G5

$3.99

$

In Stock, Qty 12

0

0220

Simplicity 1960686SM

NUT, Flange, Nylock, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0230

Simplicity 703868

CAPSCREW, Hex Head, 5/16-18 x 2-1/2, G5

$4.99

$

In Stock, only 4 left!

0

0240

Simplicity 1960141SM

WASHER, 5/16

$3.99

$

Usually ships in 2-12 days

0

0250

Simplicity 703870

CAPSCREW, Hex Head, 5/16-18 x 3, G5

$4.49

$

Usually ships in 2-12 days

0

0260

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 9

0

0270

Simplicity 1721360AYP

PEDAL ASSEMBLY

$50.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1716289SM

KNOB, Hole, 1/2 x 1-3/4, 2-11/16

$13.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1756612YP

SPACER, Diff. Lock

Note: (Used on 2014 & newer models)

$5.49

$

Usually ships in 2-12 days

0

0310

Simplicity 703872

CAPSCREW, Hex Head, 3/8-16 X 2 1/4

$4.99

$

In Stock, Qty 20+

0

0320

Simplicity 703793

NUT, Hex Flange, Whiz Lock, 3/8-16

$4.49

$

In Stock, Qty 5

0

0330

Simplicity 1755453YP

ROD, Diff Lock

$16.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1755454YP

ROD, Differential Lock

$11.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1722383SM

ARM, Differential Lock

$11.99

$

In Stock, only 1 left!

0

0360

Simplicity 703570

CAPSCREW, Hex Head, 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 10

0

0370

Simplicity 1756597AYP

PIVOT, Differential Lock

$9.49

$

Usually ships in 2-12 days

0

0380

Simplicity 1755456AYP

BRACKET, Differential Lock

$15.99

$

Usually ships in 2-12 days

0

0390

Simplicity 1727935SM

SPACER, Pivot, 5/16 ID x 1-3/4 OD

$5.99

$

In Stock, only 3 left!

0

0400

Simplicity 1960636SM

NUT, Hex KEPS, 5/16-18

$4.99

$

In Stock, only 1 left!

0

0450

Simplicity 1755643YP

PAD, Footrest, LH

$45.99

$

Usually ships in 2-12 days

0

0460

Simplicity 1755642YP

PAD, Footrest, RH

$53.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1704351SM

FASTENER, Panel

$4.99

$

In Stock, only 3 left!

0

0480

Simplicity 1960676SM

SCREW, Pan Head Torx Taptite, 1/4-20 x 1-1/4, Black

$4.49

$

Usually ships in 2-12 days

0

0490

Simplicity 1755742AYP

PLATE, Back, Hitch

$116.99

$

Usually ships in 2-12 days

0

0500

Simplicity 5025017X16YP

BOLT, 1/2-13 x 2, G5

$4.49

$

In Stock, only 1 left!

0

0505

Simplicity 703450

SPACER, 1/2 ID x 3/4 OD

$8.49

$

Usually ships in 2-12 days

0

0506

Simplicity 1926192SM

WASHER, 9/16 x 1-1/4 x 1/8

$19.99

$

Usually ships in 2-12 days

0

0510

Simplicity 703407

CAPSCREW, Hex Head, 3/8-16 x 1, G5

$11.99

$

In Stock, Qty 7

0

0520

Simplicity 703918

NUT, Hex Flange, Whiz Lock, 1/2-13

$3.49

$

Usually ships in 2-12 days

0
