2691337-02 - Simplicity Broadmoor 52" Lawn Tractor, 25hp Transmission Group - Tuff Torq K62AC Parts Diagram

Broadmoor 52" Lawn Tractor, 25hp

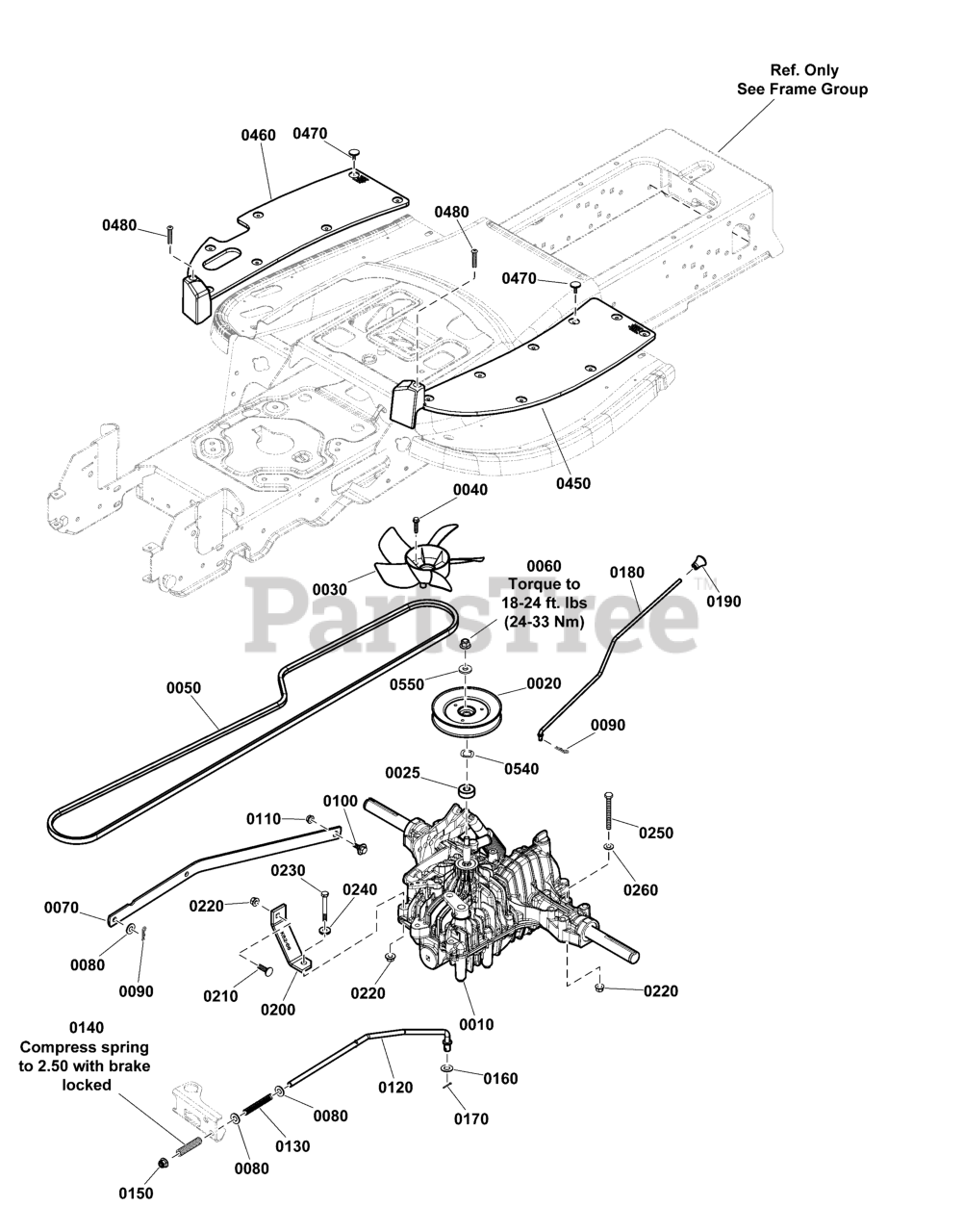

Transmission Group - Tuff Torq K62AC Parts Diagram

  • Title

0010

Simplicity 84003802

TRANSMISSION, Tuff Torq K62AC

$1453.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1761517YP

PULLEY & HUB ASSEMBLY

$79.99

$

Usually ships in 2-12 days

0

0025

Simplicity 84001659

SPACER, Splined

$4.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1719233SM

FAN

$27.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1933958SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1-1/4

$4.49

$

In Stock, only 1 left!

0

0050

Simplicity 1721392SM

BELT, 94.05

$54.99

$

In Stock, Qty 20+

0

0060

Simplicity 1719968SM

NUT, Hex Flange, M10-1.50

$3.49

$

Usually ships in 2-12 days

0

0070

Simplicity 1754368AYP

ARM, Transmission

$24.99

$

Usually ships in 2-12 days

0

0080

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0090

Simplicity 703430

PIN, 13X1.19

$3.49

$

In Stock, only 2 left!

0

0100

Simplicity 1732426SM

BOLT, Shoulder, 5/16-18 x 1/2

$4.49

$

In Stock, only 1 left!

0

0110

Simplicity 704067

NUT, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 14

0

0120

Simplicity 1755737YP

BRAKE ROD, Transmission

$26.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1722684SM

SPRING, Compression

$4.49

$

Usually ships in 2-12 days

0

0140

Simplicity 1729277SM

SPRING, Compression, 3-5/8"

$6.99

$

In Stock, only 1 left!

0

0150

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0160

Simplicity 703183

WASHER, 7/16

$3.99

$

In Stock, only 2 left!

0

0170

Simplicity 703312

PIN, Cotter, 3/32 x 3/4

$3.99

$

In Stock, Qty 20+

0

0180

Simplicity 1755644YP

ROD, Tow Release

$15.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1723126SM

KNOB

$6.99

$

In Stock, only 2 left!

0

0200

Simplicity 1754643AYP

STRAP, Torque, Suspension

$18.99

$

Usually ships in 2-12 days

0

0210

Simplicity 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 7

0

0220

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0230

Simplicity 703868

CAPSCREW, Hex Head, 5/16-18 X 2 1/2, GR 5,

$4.99

$

In Stock, only 4 left!

0

0240

Simplicity 1960141SM

WASHER, 5/16

$3.99

$

Usually ships in 2-12 days

0

0250

Simplicity 703870

CAPSCREW, Hex Head, 5/16-18 x 3, GR5

$4.49

$

Usually ships in 2-12 days

0

0260

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

0450

Simplicity 1755799YP

PAD, Foot Rest, LH

$43.99

$

Usually ships in 2-12 days

0

0460

Simplicity 1755642YP

PAD, Foot Rest, RH

$53.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1704351SM

FASTENER, Panel

$4.99

$

In Stock, only 4 left!

0

0480

Simplicity 1960676SM

SCREW, Pan Head Torx, Taptite, 1/4-20 x 1-1/4

$4.49

$

Usually ships in 2-12 days

0

0540

Simplicity 1761520YP

WASHER, Wave, 0.65" ID

$3.99

$

Usually ships in 2-12 days

0

0550

Simplicity 704128

WASHER, Flat

$4.99

$

In Stock, Qty 10

0
